Overview
Brand Name: Huawei

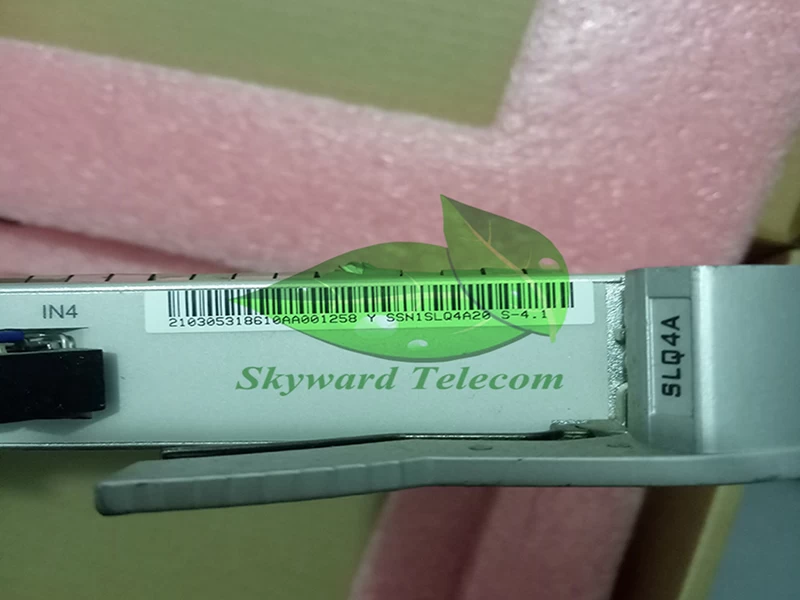

Part Number: SSN1SLQ4A20
Discription: The SLQ4A transmits and receives STM-4 optical signals, performs O/E conversion for the STM-4 optical signals, extracts and inserts overhead bytes, and generates alarm signals on the line.
Functions and features of the SLQ4A
|
Function and Feature
|
SLQ4A
|
|
Basic functions
|
Transmits and receives 4xSTM-4 optical signals.
|
|
Specifications of the optical interface
|
-
Supports different types of standard optical interfaces, namely, the I-4, S-4.1, L-4.1, L-4.2, and Ve-4.2.
-
The characteristics of the optical interfaces of the I-4, S-4.1, L-4.1, and L-4.2 types comply with ITU-T G.957.
-
The characteristics of the optical interface of the Ve-4.2 type comply with the standards defined by Huawei.
|
|
Specifications of the optical module
|
-
Supports the detection and query of the information about the optical module.
-
Provides the ALS function. The optical interface supports the setting of the on/off state of a laser.
-
Supports the usage and monitoring of the SFP optical module, which facilitates the maintenance and upgrading of the optical module.
|
|
Service processing
|
Supports the VC-12 services, VC-3 services, VC-4 services, and VC-4-4c concatenation services.
|
|
Overhead processing
|
-
Processes the section overheads of the STM-4 signals.
-
Supports the transparent transmission and termination of the path overheads.
-
Supports the setting and query of the J0, J1, and C2 bytes.
-
Supports one to four channels of ECC communication.
|
|
Alarms and performance events
|
Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
|
|
Protection schemes
|
|
|
Maintenance features
|
-
Supports inloops and outloops at optical interfaces.
-
Supports inloops and outloops on VC-4 paths.
-
Supports warm resets and cold resets. The warm reset does not affect services.
-
Supports the query of the manufacturing information of the board.
-
Supports the in-service loading of the FPGA.
-
Supports the upgrade of the board software without affecting services.
-
Supports the press-to-collect function in fault data collection.
|
