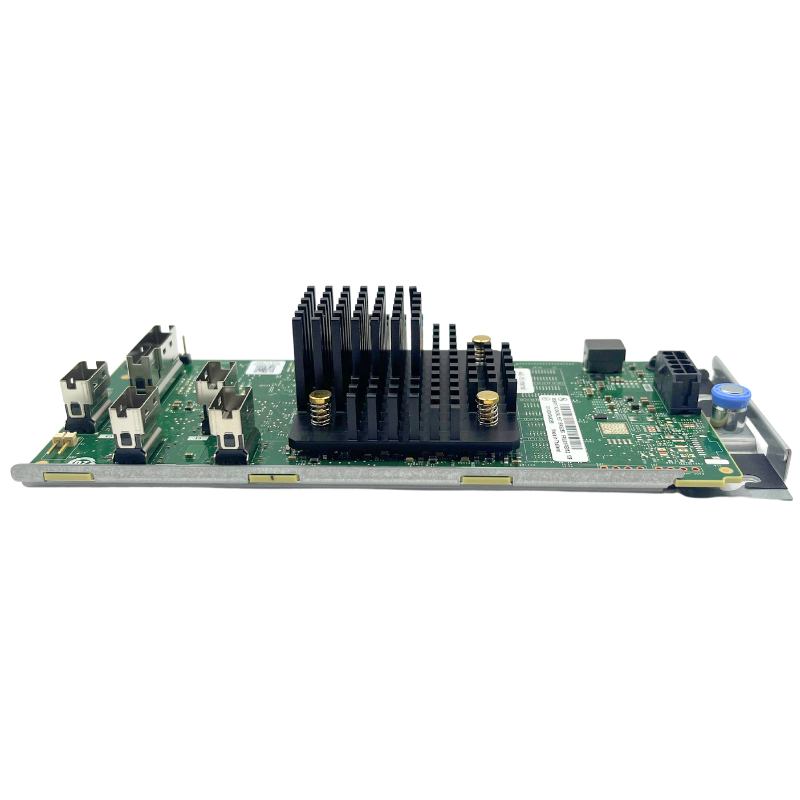

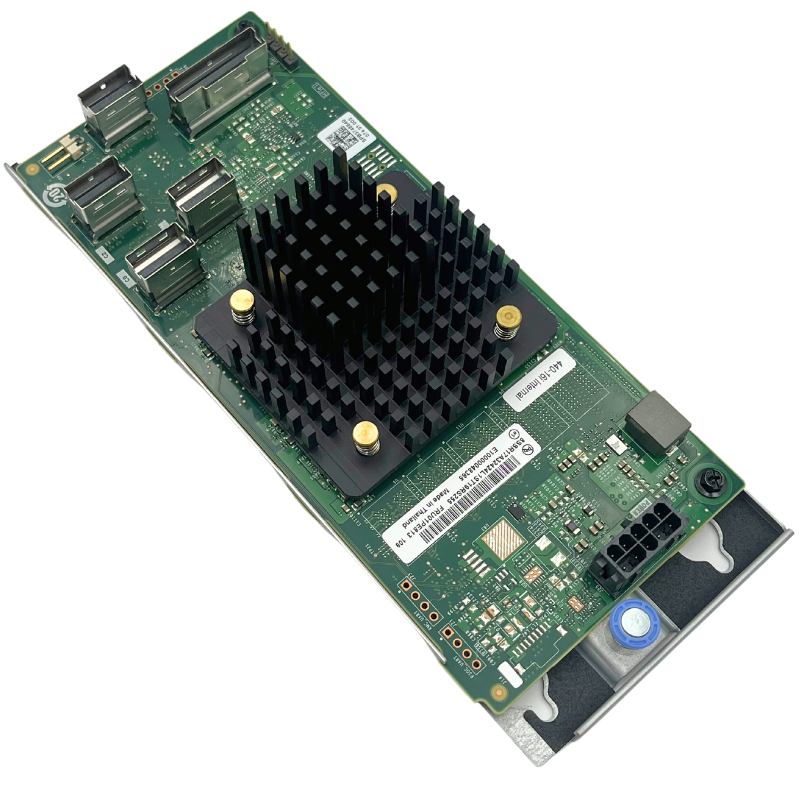

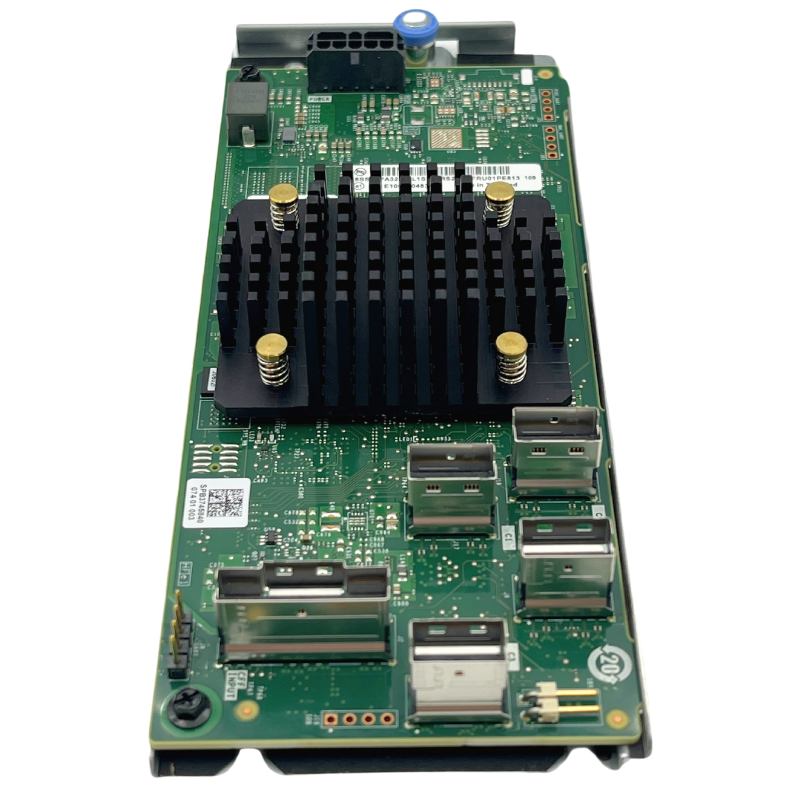

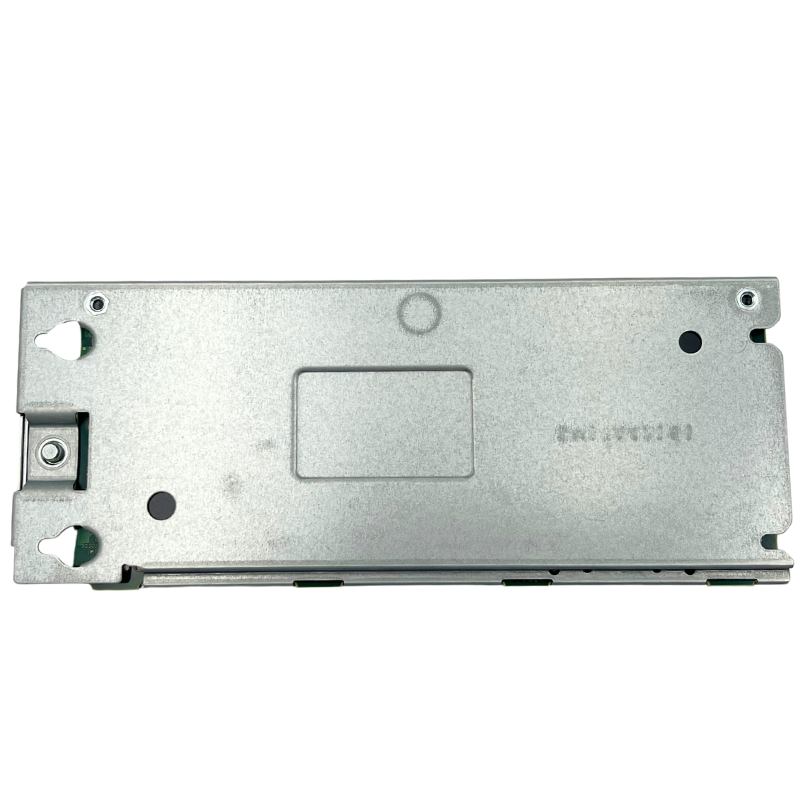

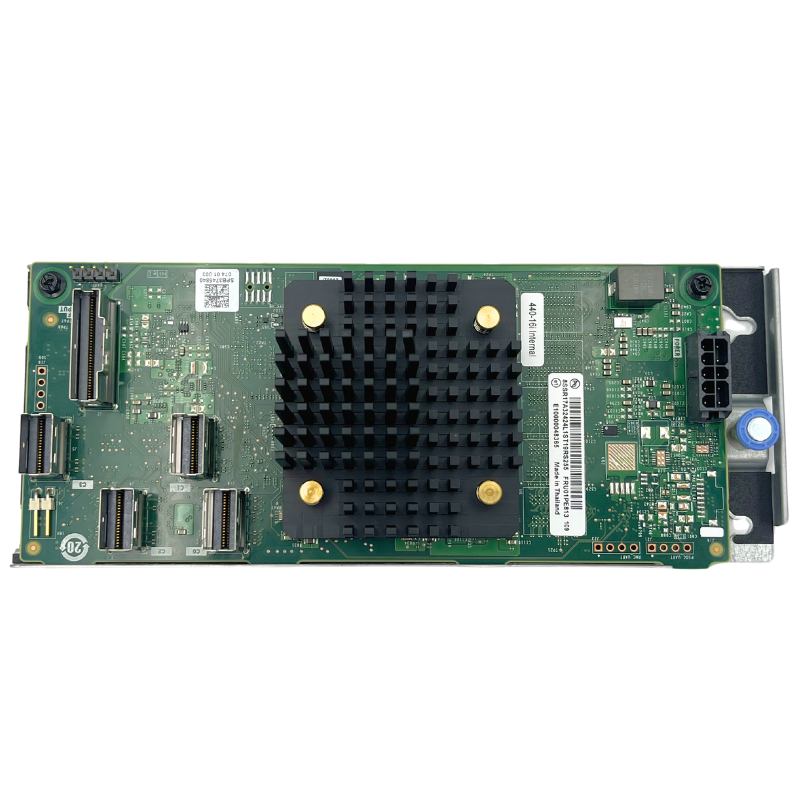

440-16i PCIe HBA card 12 Gb SAS PCIe 4.0 x8
Key Features
The 440 HBAs have the following features and specifications:
- PCIe 4.0 x8 host interface
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3808 and SAS3816 IOC designs
- Two adapter form factors:
- Low-profile PCIe adapter with broad server compatibility
- Custom form-factor, designed to not consume a standard PCIe slot
- 8x or 16x 12 Gbps SAS/SATA ports for connectivity to 8 or 16 internal drives respectively
- Up to 12 Gbps throughput per port
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 6 or 3 Gbps SATA speeds
- One or two x8 HD Mini-SAS connectors to drive backplanes (SFF-8654 x8)
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Support internal SAS tape drives
- Optimized for SSD performance
- High performance architecture with very deep queue depth
- Advanced power management support
- Support for SSP, SMP, STP, and SATA protocols
- End-to-End CRC with Advanced Error Reporting
- Spread Spectrum Clocking for EMI reductions
- Supports 512e, 512n and 4K (when available) formatted drives
- Compliant with Disk Data Format (DDF) configuration on disk (CoD).
- S.M.A.R.T. support.
Applications
• High-port direct attached connectivity applications
• Enterprise Databases
• Analytics Applications
• Medical Imaging
• Media Applications
• Flexible solutions for cloud computing
Specification
| Model |
440-16i |
| Ports |
16 internal |
| PN |
4Y37A78602 |
| Connectors |
SAS3816 |
| Storage Interface |
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| I/O Processor/ SAS Controller |
SAS3816 |
| Host Interface |
Two x8 SFF-8654 |
| Typical Power |
8.9W |
| Physical Dimensions |
6.127 in. × 2.712 in. (155.65 mm × 68.90 mm) |
| Cable Support |
Passive Copper |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
