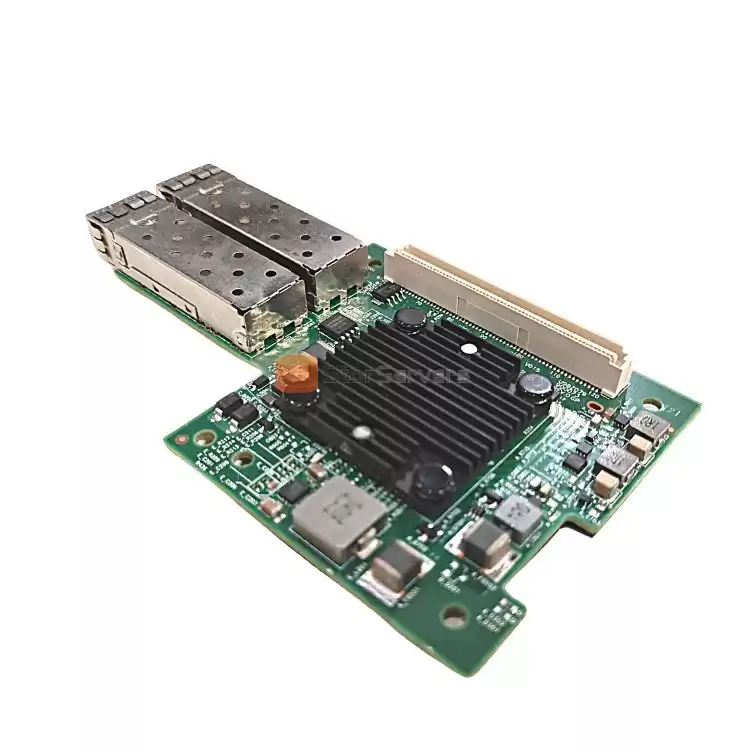

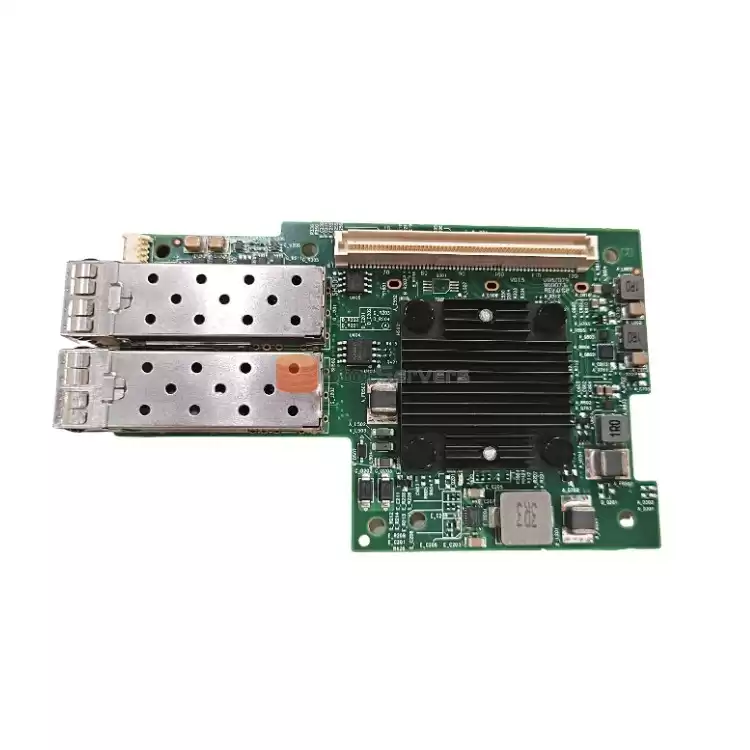

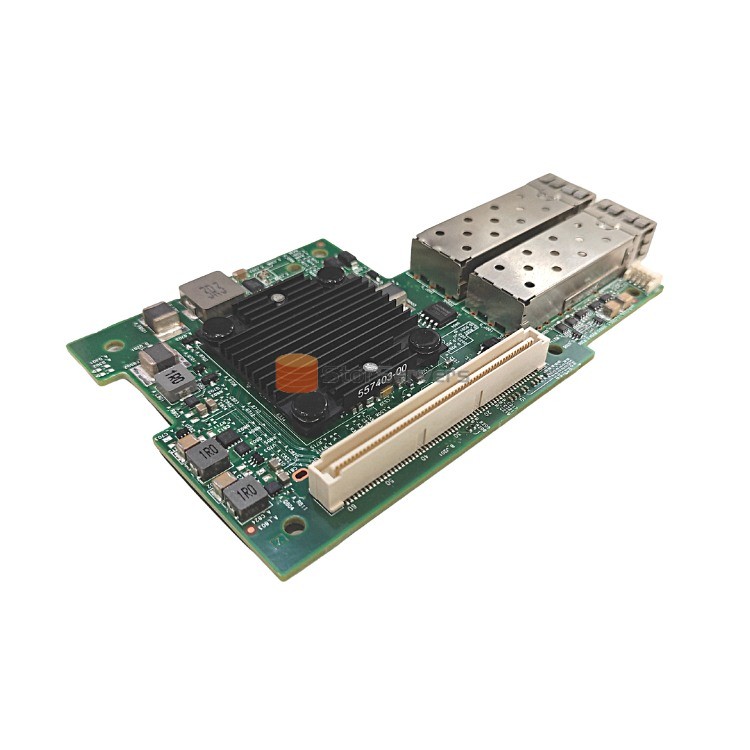

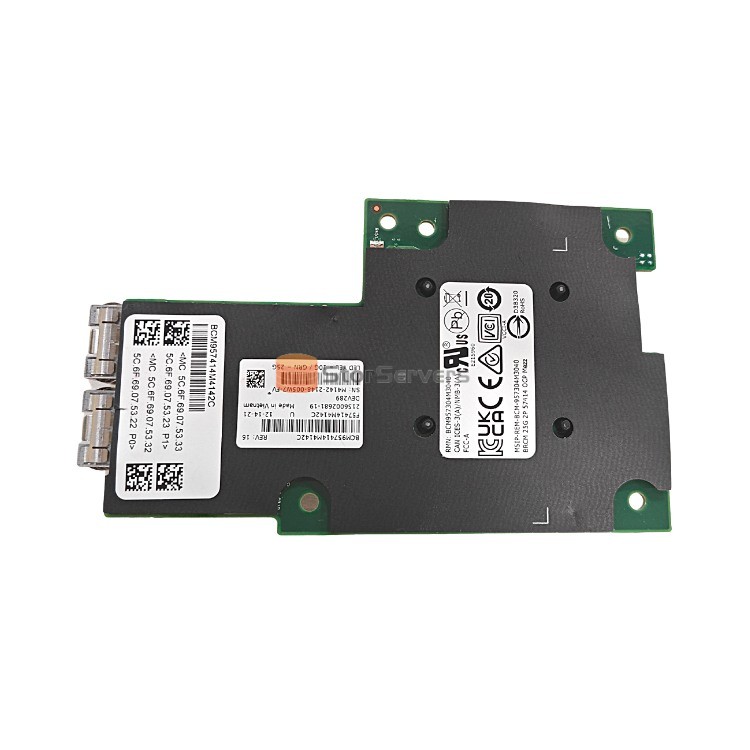

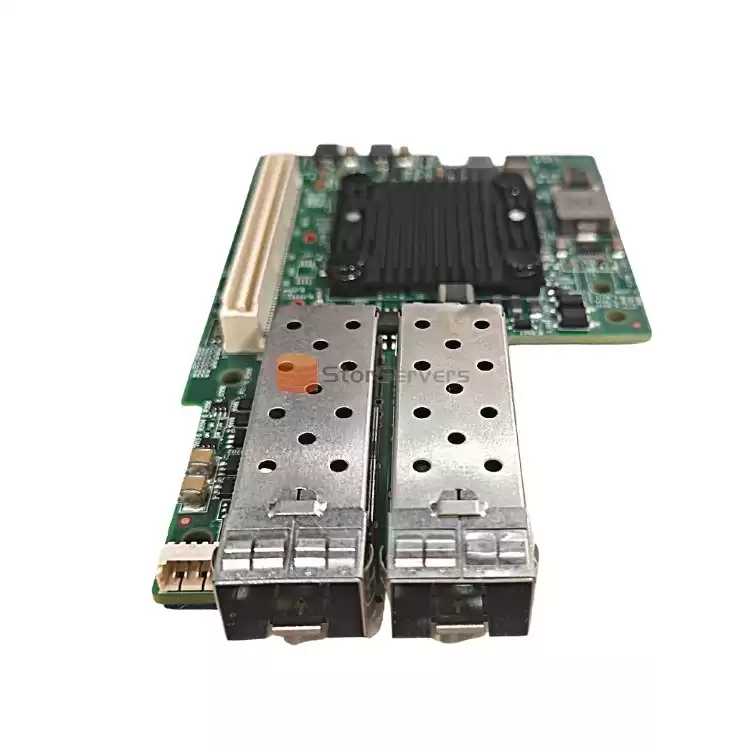

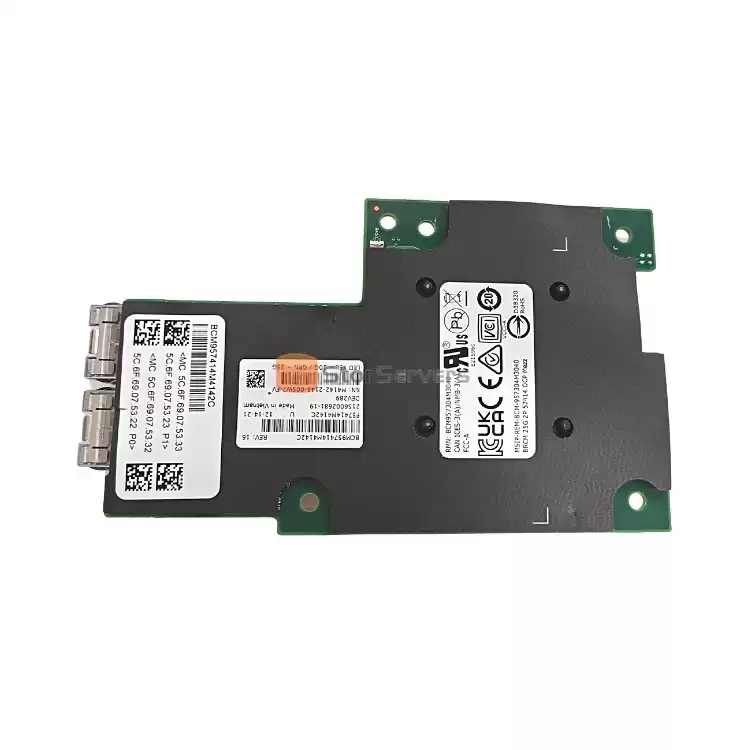

BCM957414M4142C OCP 2.0 Mezzanine Card
General Description
The BCM957414M4142C is a dual-port 25 Gb/s PCI Express 3.0 x8 Mezzanine Card designed to the Open Compute Project (OCP) Mezzanine Card 2.0 Design Specification with an SFP28 network as a Type 1 adapter, with the board outline adhering to a form factor called out in v0.5 of the specification. The adapter supports SFP28/ SFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57414 25GbE MAC controller with an integrated dual-channel 25 GbE SFI transceiver.
Features
• Dual-port pluggable media interface, which may be equipped with 25G SFP28, 10G SFP+ optical transceiver or with a copper direct-attach cable.
• Fully compliant with the SFF-8402 standard.
• x8 PCI Express 3.0 compliant.
• SR-IOV with up to 128 virtual functions (VFs).
• Function-Level Reset (FLR) support.
• TruFlow™ flow processing engine.
• Virtual Network Termination—VXLAN, NVGRE, Geneve, GRE encap/decap.
• vSwitch acceleration.
• Tunnel-aware stateless offloads.
• DCB support – PFC, ETS, QCN, DCBx.
• RDMA over Converged Ethernet (RoCE)
• Network Controller Sideband Interface (NCSI).
• SMBus 2.0.
• MCTP over SMBus.
• PCIe-based UART and KCS.
• Jumbo frames up to 9 Kb.
• Advanced Congestion Avoidance.
• Multiqueue, NetQueue, and VMQ.
• IPv4 and IPv6 offloads.
• TCP, UDP, and IP checksum offloads.
Specification
| Model |
BCM957414M4142C |
| Ports |
Dual-Port |
| Port Configuration |
2× 25GbE, 2× 10GbE |
Product Description
|
Dual-Port 25 Gb/s or 10 Gb/s Ethernet PCI Express 3.0 ×8 OCP Mezzanine Card; RoHS-compliant
|
| Power |
10.9W Typical with Passive DAC at 55°C ambient temperature |
Dimensions (in.)
|
OCP 2.0 Form Factor
|
Weight
|
75 grams
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
