Introduction

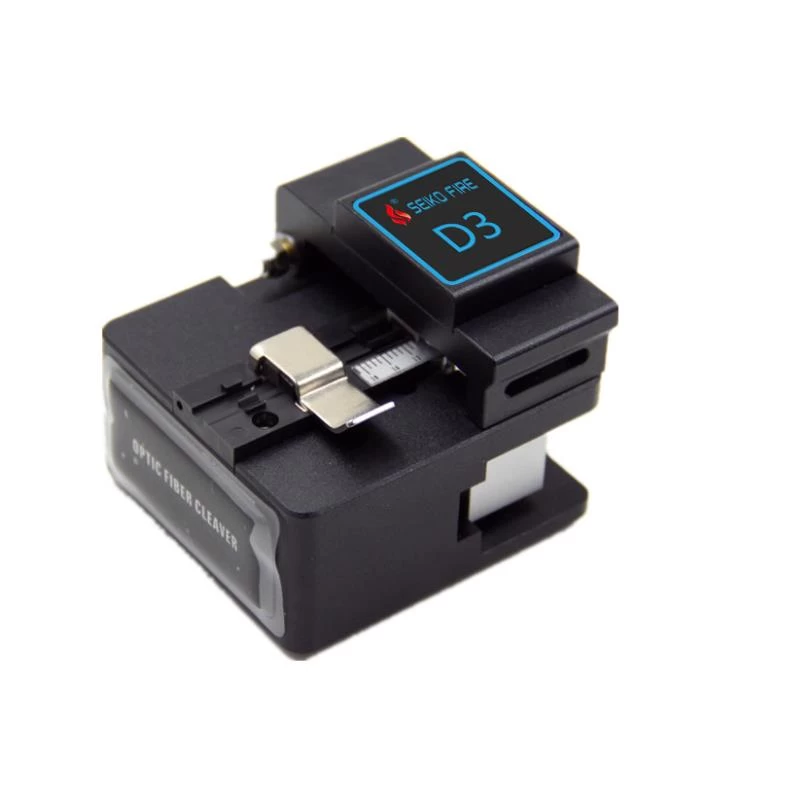

This D3 optical fiber cleaver can provides approximately 48,000 cleaves. It is a simple operation for the user.
Specifications
|
Fiber diameter
|
125µm
|
|
Outercoat diameter
|
0.25mm-0.9mm
|
|
Fiber type
|
Single tube fiber and Ribbon fiber (exchangeable)
|
|
Cleaved length
|
5-20mm
|
|
Cleaved angle
|
≤0.5°
|
|
blade life
|
48000
|
|
Mode
|
Semiautomatic
|
|
Fiber collector
|
Available
|
|
Dimension
|
59mm(W)×55(D)mm×49mm(H)
|
|
Weight
|
260g
|
