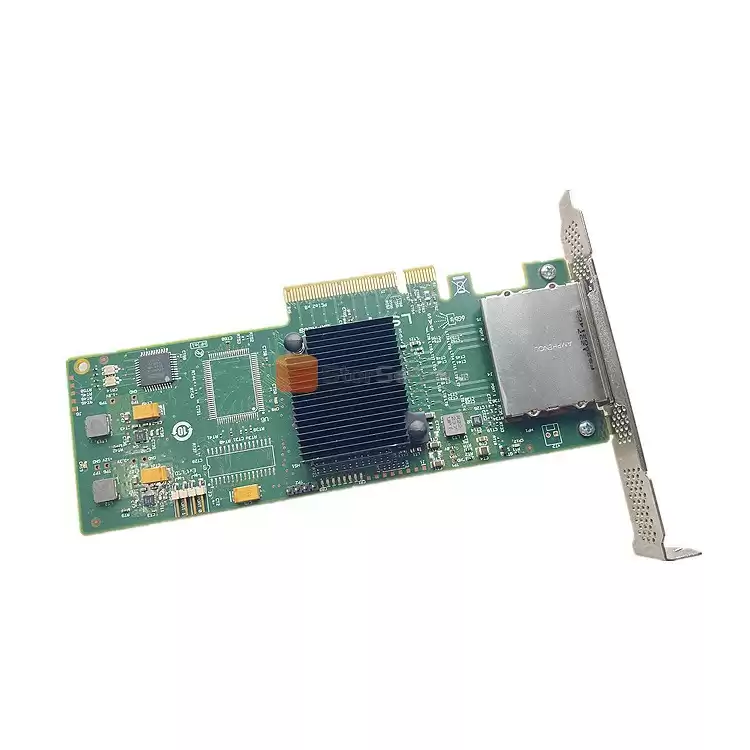

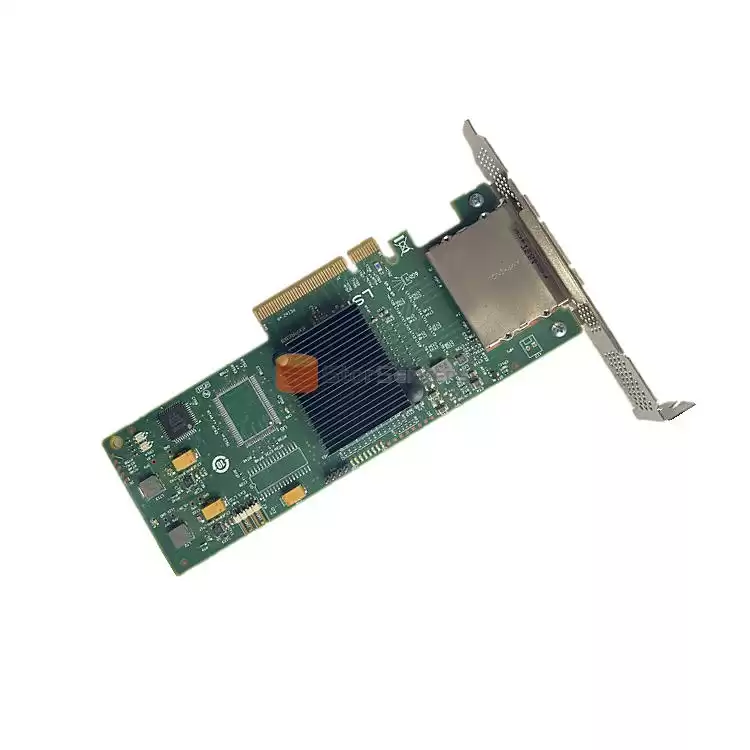

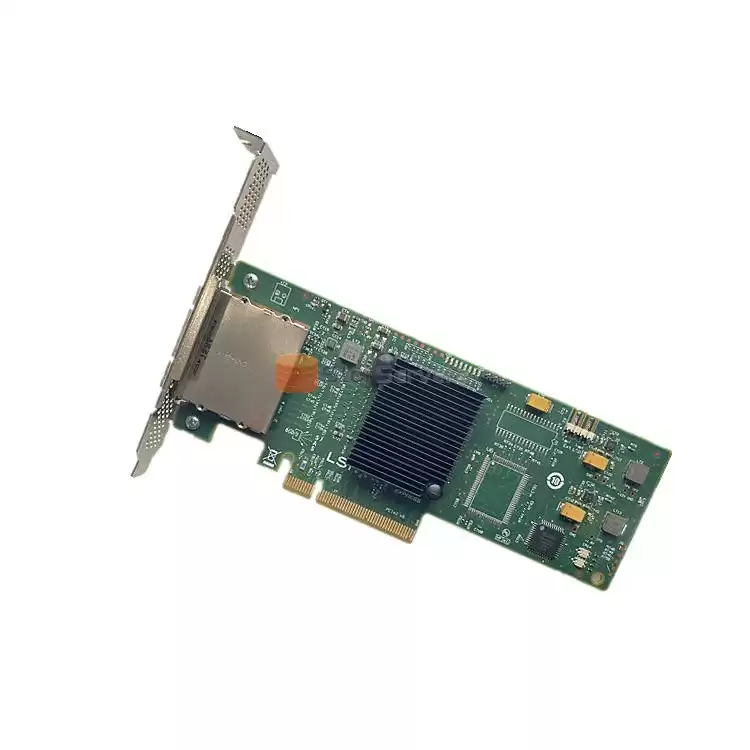

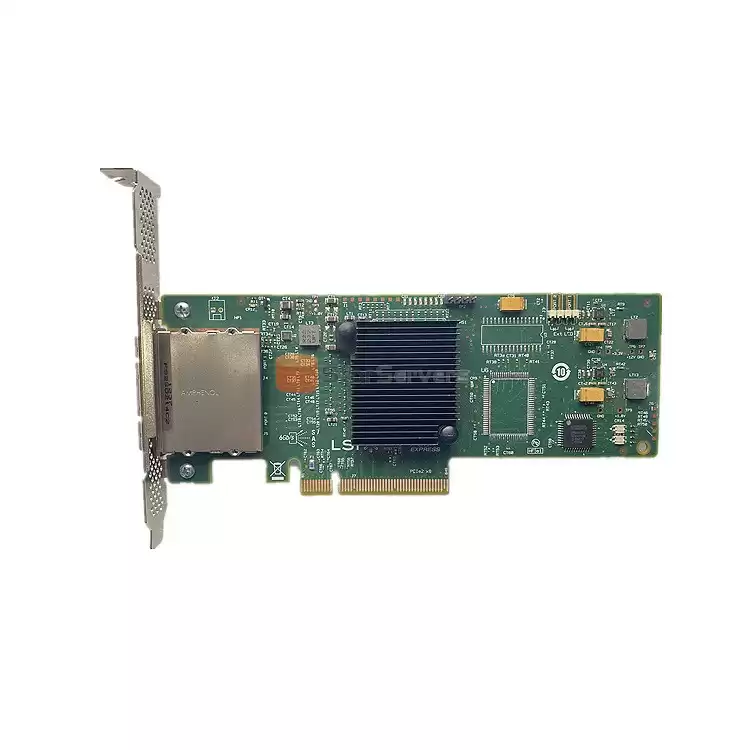

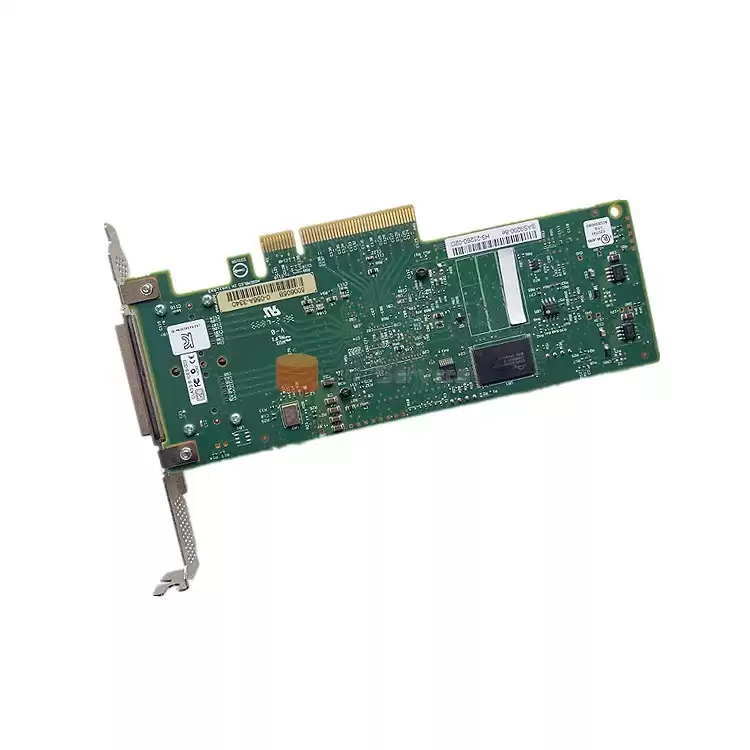

LSI 9200-8e H5-25086-01 LSI00188 HBAs
Key Features
■ 8 external 6Gb/s SAS+SATA ports
■ 8 lanes, PCI Express 2.0
■ Low profile form factor design
■ Two x4 external mini-SAS connectors (SFF8088)
■ LSISAS2008 6Gb/s SAS+SATA Controller
■ Supports up to 512 SAS or SATA end devices
■ Supports SSDs, HDDs and tape drives
Key Advantages
■ PCI Express 2.0 provides faster signaling for high-bandwidth applications
■ High performance with 6Gb/s data transfer rates
Specification
| Model |
LSI 9200-8e |
| Ports |
8 port ext |
| MPN |
H5-25086-01 |
| OPN |
LSI00188
|
| Connectors |
Two mini-SAS external connectors (SFF8088) |
| Storage Connectivity; Data Transfer Rates |
8 ports; 6Gb/s SAS 2.0 compliant |
| I/O Controller |
LSI SAS2008 / Fusion MPT 2.0 |
| Host Bus Type |
x8 lane, PCI Express 2.0 compliant |
| Brackets |
Full height and low profile |
| Cable Support |
Passive Copper |
Availability
|
In Stock |
Warranty
|
3 Years |
