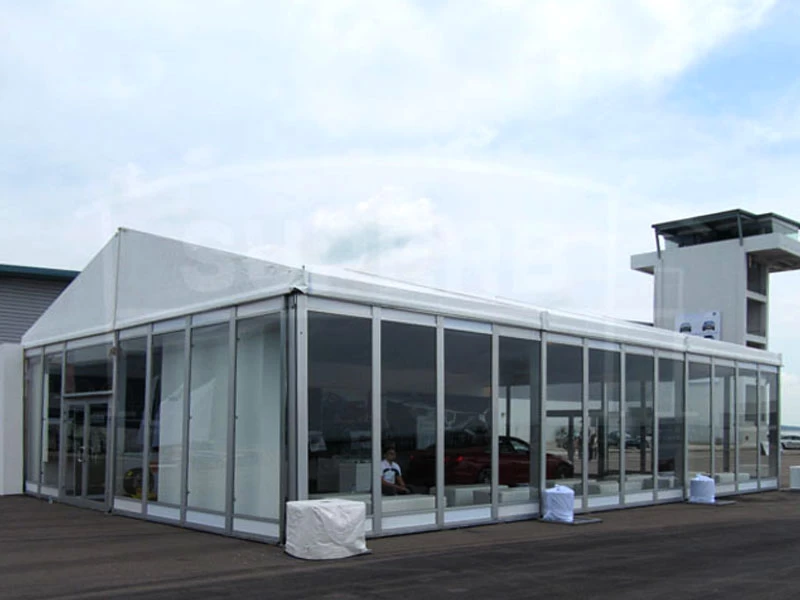

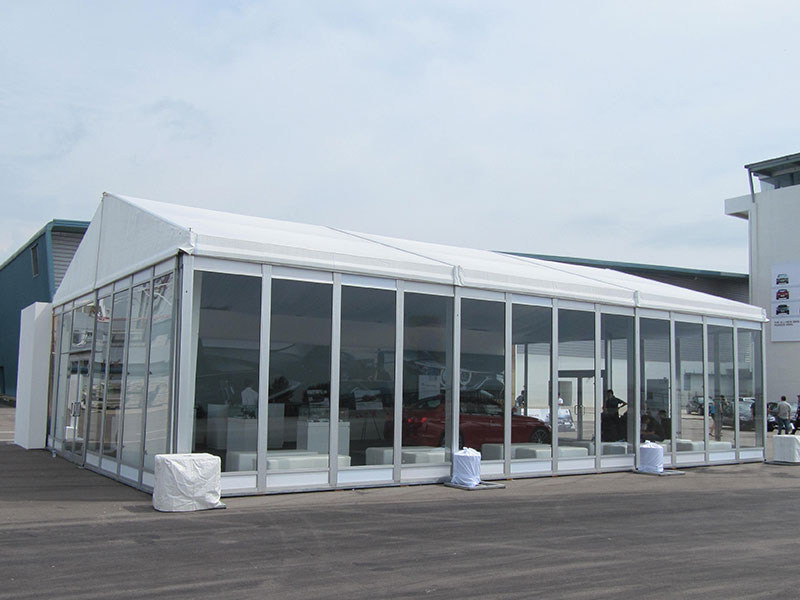

Product Name:Outdoor Canopy Exhibitions Tent With Accessories
To choose an exhibition tent ,normally standard A tent is widely applicable because of its big span from 15 m to 60 meters .
The sidewalls are plain PVC fabric to save the cost , also, you can choose glass walls in front of the exhibition tent for beautiful-looking , and at least two double-wing glass door are suggested to install for the tent . The advertisement can be printed on the front gable triangle of the exhibition tent.
According to the size and scale of the exhibition , the side height of 4m to 6m is optional for the tent , the 60W LED lighting is used every 25 to 35 m2, the Air conditioner 30HP is good for the exhibition tent , each 30HP can cover 300 square meters .
The flooring is recommended for the tent , because the flooring can be against the rain water to soak. You can use the red carpet if it is the concrete ground, of course it is better to make the tent foundation is 20cm higher than the ground to avoid the rain.
Fire -fighting equipment should be placed every 20 or 30 meters of the tent .
We superb tent had successfully participated in the canton fairs since 2003 till 2012 ,Tsingtao beer festival ,zhuhai airshow exhibtions ,etc. , got much experience on the exhibition tent design , production,please contact us for more details.
The Specification of Canopy Exhibitions Tent With Accessories:
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
XLS20/4-5
|
20
|
4
|
7.2
|
5
|
18°
|
10.7
|
100
|
|
XLS25/4-5
|
25
|
4
|
8
|
5
|
18°
|
10.7
|
100
|
|
XLS30/4-5
|
30
|
4
|
8.9
|
5
|
18°
|
10.7
|
100
|
|
XLS40/4-5
|
40
|
4
|
10.5
|
5
|
18°
|
11.5
|
100
|
|
Main
frame Profile
|
300x120x5mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
