Outdoor Flexible LED Mesh Screen Display P31.25 P40 P50 P55
Highly transparent, full color soft mesh LED display system. It’s featured with flexible installation, lightweight body, high transparency, which are convenient for various installation ways. Thus they can be curved, folded, scrolled, and hanged freely as you like. Total clear body gets very delicate outlook and high transparency, perfectly suiting for any artistic design, or other creative ideas.
Super easy and fast installation design–Enables super easy and fast installation/breakdown with minimal manpower.
Super flexible mode- Can bend, wrap, drape, and fold to conform to even the most unusual shape and size.
Easy and fast maintenance- enable site emergency solution and quick reaction.Creativity makes our products unique and it will satisfy all your needs for stage lighting area.
Flexible LED display/soft LED display for stage lighting Easy installation: Just hung on the truss or supported structure. Easy transportation: Fold like clothes. Pack inside the flight case. Easy to operate: Ready to use, just need to plug with power source, ready to work as a TV.
Easy to repair, do professional skill required and especially suit for rental business.Light weight and small volume, portable and movable.Several units can join together from horizontally and vertically.

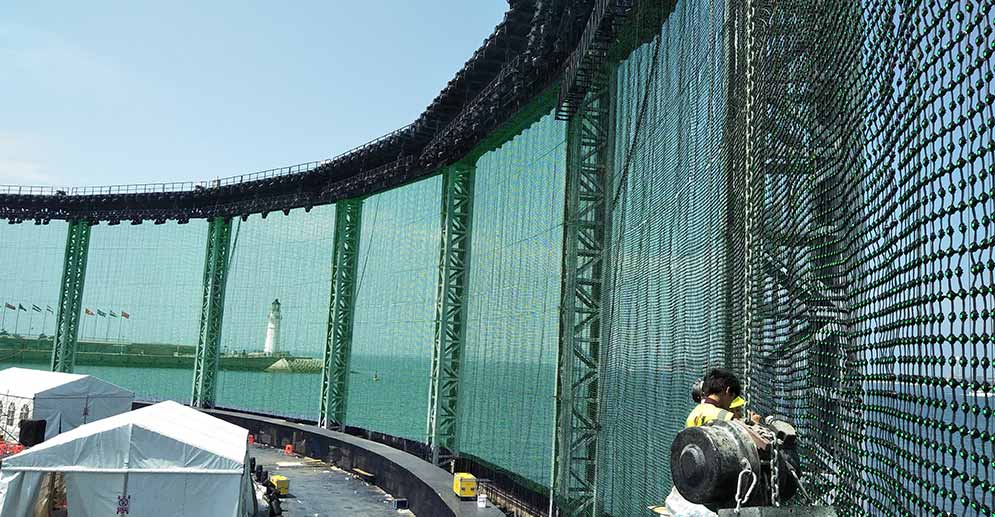

With the advantages of good flexibility, high transparency, high brightness and waterproof etc., flexible mesh screen can be customized into many different shapes to display various video programs conveniently, and applied to some special application, such as the sea.
In the meanwhile, led mesh screen can show various lighting changing effects designed by professional designers to show the infinite artistic charm.
Flexible Mesh Screen Specifications:
|
Item Number
|
LEEMAN DISPLAY-P31.25
|
LEEMAN DISPLAY-P40
|
LEEMAN DISPLAY-P50
|
LEEMAN DISPLAY-P55
|
|
Pixel Pitch
|
31.25mm
|
40mm
|
50mm
|
55mm
|
|
Pixel Density
|
1024dot/m²
|
625dot/m²
|
400dot/m²
|
330dot/m²
|
|
Brightness
|
10000CD/m²
|
6250CD/m²
|
4000CD/m²
|
3300CD/m²
|
|
Max.Power Consumption
|
922W/m²
|
562W/m²
|
360W/m²
|
297W/m²
|
|
Ave.Power Consumption
|
308W/m²
|
187W/m²
|
120W/m²
|
99W/m²
|
|
DOT Size
|
L20XW18XH15.2(mm)
|
|
DOT Weight
|
<6g /Pixel
|
|
LED Type
|
RGB 3IN1 SMD2727*4
|
|
Viewing Angle
|
120°(H)/120°(V)
|
|
Gray Scale
|
12bit
|
|
Display Scale
|
68.7 Bilion
|
|
Refresh Rate
|
≥1920Hz
|
|
Control System
|
PC based dynamic capture&mapping
|
|
Operation Power
|
AC110~ 240V, 50/60Hz (DC15V)
|
|
Working Environment
|
Temperature -20℃~+45℃，Humidity10~90% RH
|
|
IP Rating
|
IP66
|
|
Operating Life
|
≥100,000hours
|
|
Certificate
|
CE ,ROHS, UL, EMC
|
Video Controller card system software
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
LEEMAN DISPLAYLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
SMD LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP LED Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
LEEMAN DISPLAYLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
BarcoLED PCB
|
4 Layer PCB Board
|
|
LEEMAN DISPLAYLED PCB Board
|
1.6mm Thickness
|
|
Packaging Materials
|
Flight Case Wooden Box Carton Box
|
