Outdoor High Lumen Waterproof LED Street Light

LED street light are Patenetd products (ESST301A-30W) that comes with a dusk-to-dawn photocell sensor that automatically turns on at dusk, and automatically turns off at dawn, It can effectively save energy. And uses a die-cast aluminum housing to provide good heat dissipation and performance, IP65 waterproof, impact resistance and corrosion resistance.



Outdoor High Lumen Waterproof LED Street Light


The 300A series of LED street lights are designed with die-cast aluminum and tempered glass cover, equipped with the latest high-lumen SMD LED lamp beads and a lens with high concentration and large illumination range, so that the street lamp has a total output of 25,000 lumens. Its IP65 grade waterproof structure ensures that the LED street light is suitable for any outdoor application. It is ideal for lighting areas, parking lots, buildings and general outdoor lighting. It is energy-saving production that 150W street light can take place 200W HPSL.



FEATURES:
• Grade A+ solar ell, each cell has a complete IV curve.Conversion efficiency is more than 21 3%

The power supply box is madae of die-casting aluminum alloy, which makes drivers have good heat dissipation,and improves the life of the product.

Imported SMD3030LED light source with high brightness and long life. The LED has LM-80 certification.
Protection function: short circuit/over current/over pressure/over

Domestic famous brand driver, wide range input (100-240Vac)

The heat sink is made of ADC12 aluminum with the high heat conductivity, The heat dissipation area is large, which guarantees the stability of product function and lengthen life.


SPECIFICATION

ESST301A-30W

ESST301A-40W

ESST301A-50W

ESST301A-60W

ESST301A-100W

ESST301A-150W

ESST301A-200W

ESST301A-250W

Power Consumption

30W

40W

50W

60W

100W

150W

200W

250W

Lumens Delivered

3,000 lm

4,000 lm

5,000 lm

6,000 lm

10,000 lm

15,000 lm

20,000 lm

25,000 lm

Efficacy

110 lm/W

CRI

70

Color Temperature

2700K-7000K

Input Voltage

AC 100-240V

PF More than 0.9


CONSTRUCTION:
• The cover of the light is made of glass.
• Take the light and let the arm of pole into the hole of street light ,the beam angle is 5~15°.


RECOMMENDED APPLICATION:

Garden, squares

urban and rural road, Garage

Driveway , and street


WARRANTY:

3-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.


PRODUCT:

High Lumen LED Street Lights

Outdoor LED Street Lights

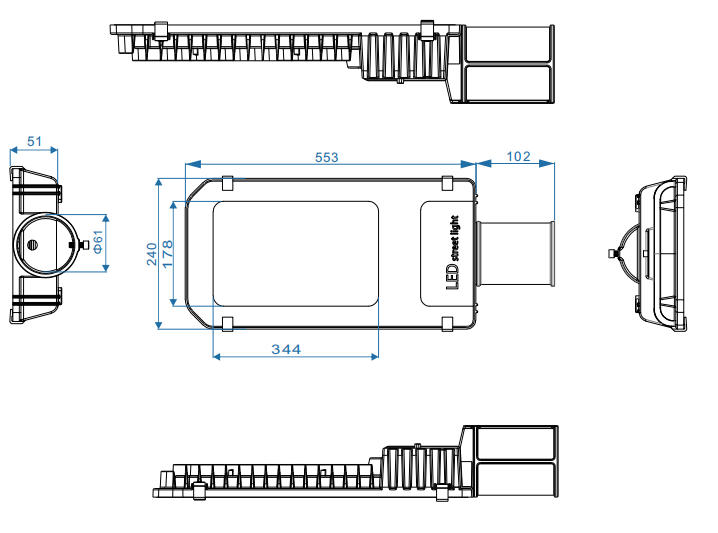

PRODUCT DIMENSION


Street light size

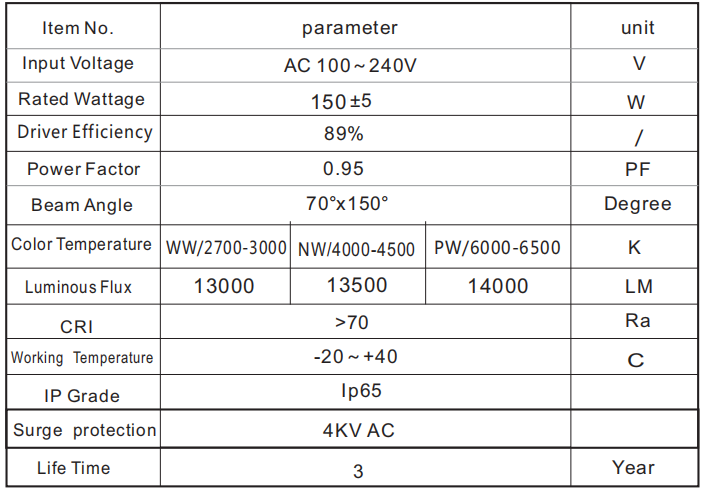

ELECTRICAL PARAMETER


LED street light specification


PACKING INFORMATIONS

Model No. Carton Size
Net Weight
(KG)
Gross Weight
(KG)
ESST301A-100W
515*210*70CM
3.1 3.6
ESST301A-150W
665*185*105CM 4.1 4.9
ESST301A-200W
665*225*105CM 5.4 6
ESST301A-250W
860*335*130CM 7.45 8.4

LED street light warehouse

LED street light workplace
