Introduction

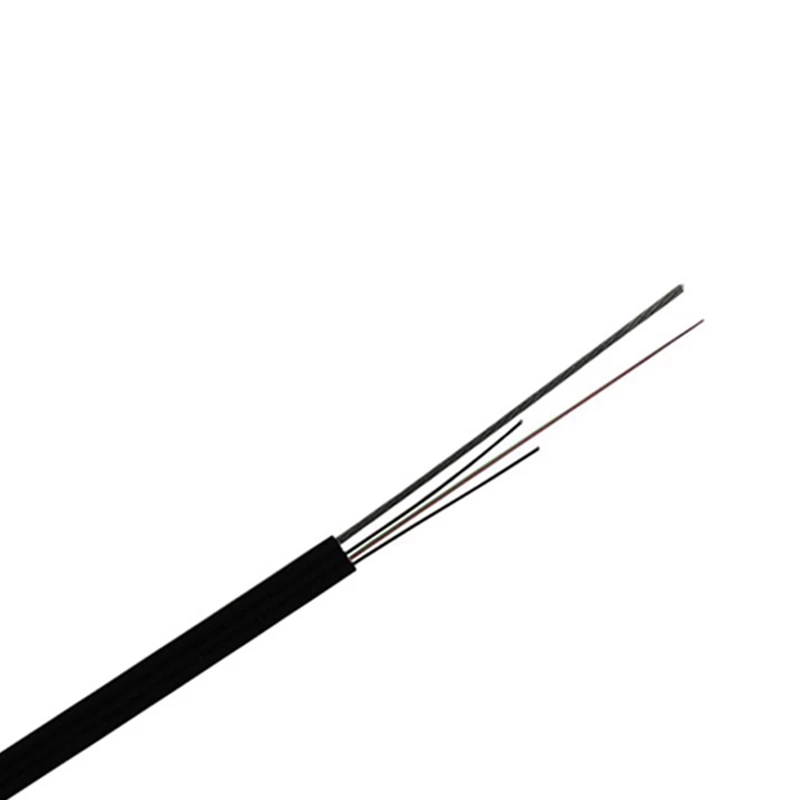

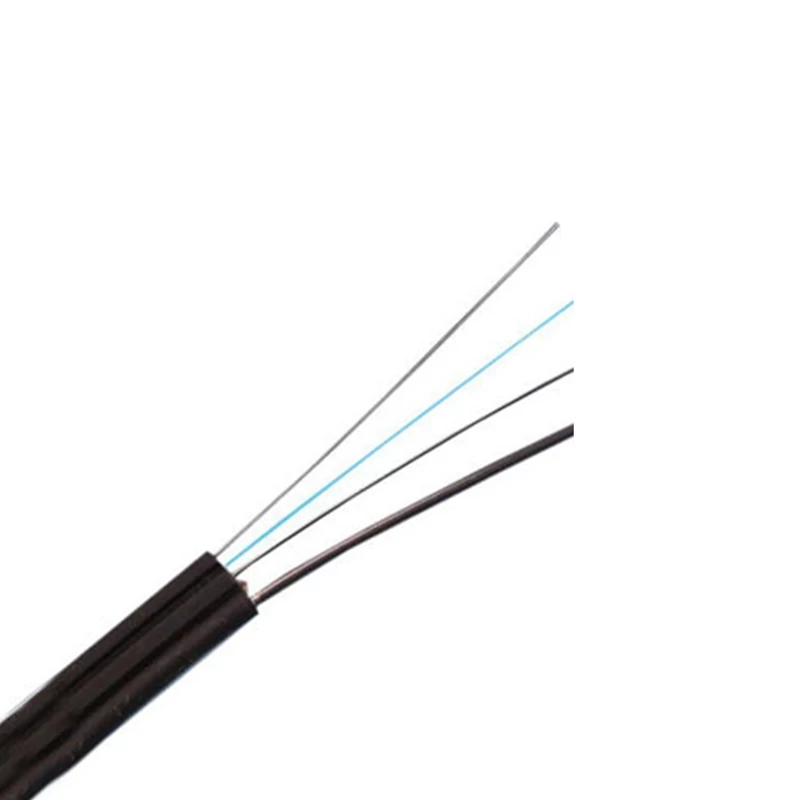

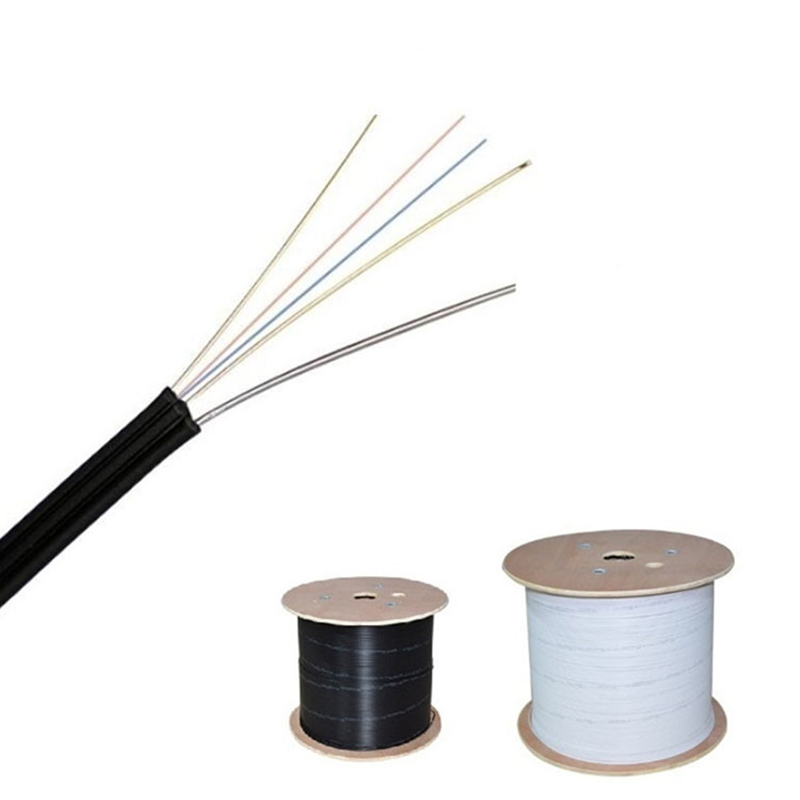

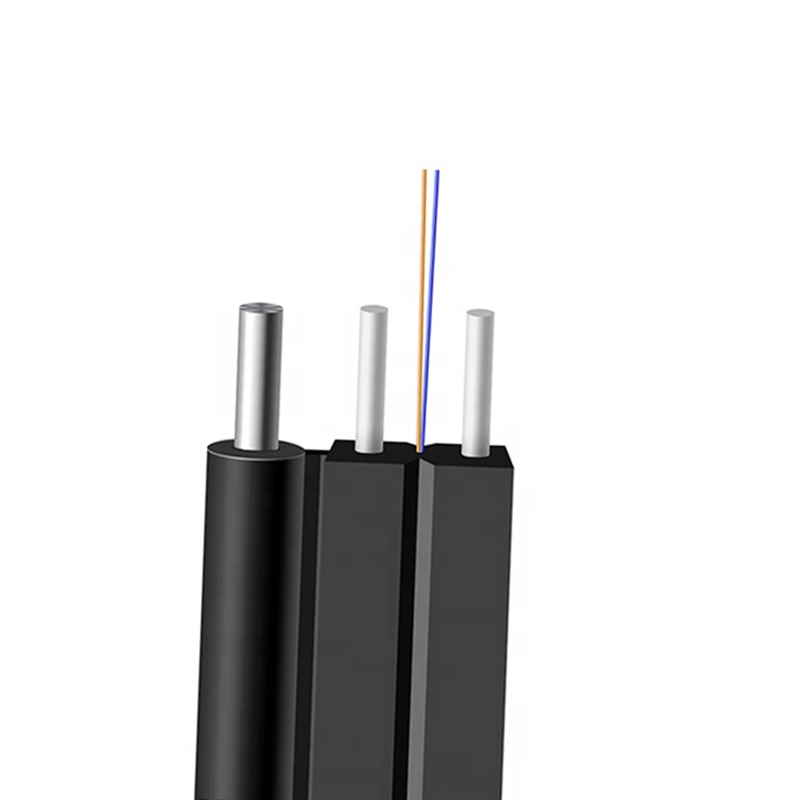

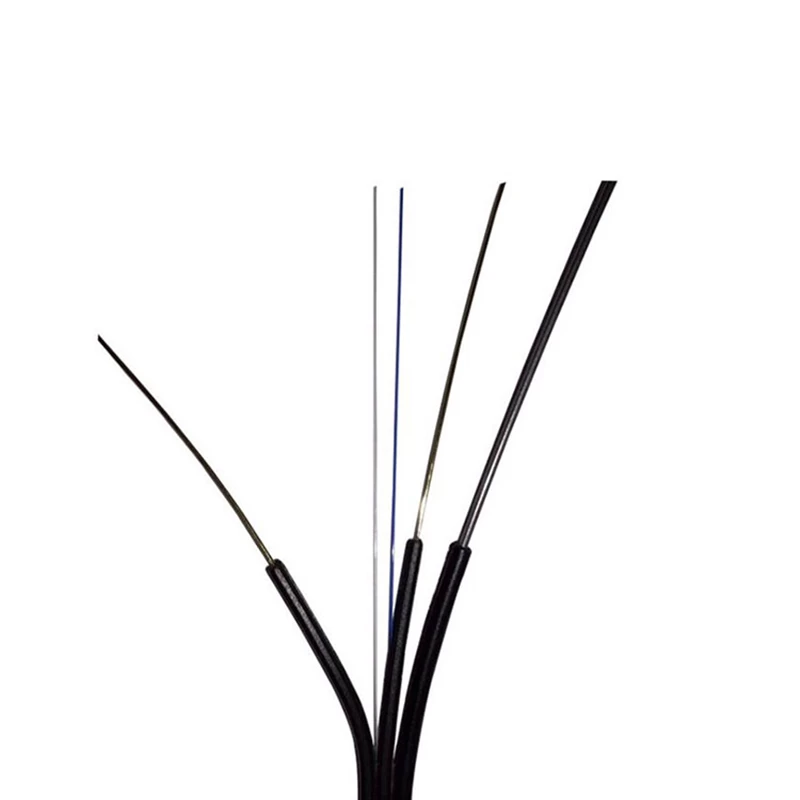

The FTTH indoor cable is centered
on the optical communication unit, with two parallel non-metallic reinforcing
elements (FRP) placed on both sides, and finally, a black or colored low-smoke
halogen-free sheath is extruded.
Features
-
Special
bend-resistant fiber to provide greater bandwidth and enhance network
transmission characteristics.
-
Two
parallel FRPs make the cable have good compression resistance and protect the
fiber.
-
The
cable has a simple structure, light weight and strong practicability.
-
Unique
groove design, easy to peel, easy to connect, simplify installation and
maintenance.
-
Low-smoke,
halogen-free flame retardant jacket, environmentally friendly.
Specifications
|
Fiber
count
|
1/2/4/6/8/12
|
|
Color Of fiber
|
Blue Orange Green Brown
|
|
Fiber Type
|
G652D/G657A1/G657A2
|
|
Strength member
|
Steel wire/FRP/KFRP
|
|
Supporting messenger wire
|
1.0MM*x1 steel wire
|
|
Outer sheath
|
LSZH Lower smoke zero halogen frame
retardant & UV Anti
|
|
Cable Diameter dimensions
|
2.0( Height) × 5.0W ± 0.1 mm(width)
|
|
Operation temperature range
|
-20 ℃ to + 70 ℃
|
|
Installation temperature range
|
-20 ℃ to + 60 ℃
|
|
Transport and storage temperature range
|
-20 ℃ to + 70 ℃
|
|
Tension Load (N)
|
Short term: 800N Long term: 500N
|
|
Crush Load(N)
|
Long term: 1000N/100mm; Short
term: 2200N/100mm
|
|
Minimal installation bending radius
|
30 x OD
|
|
Minimal operation bending radius
|
15 x OD
|
|
Cable marking
|
The marking length 1meter apart , as
required.
|
