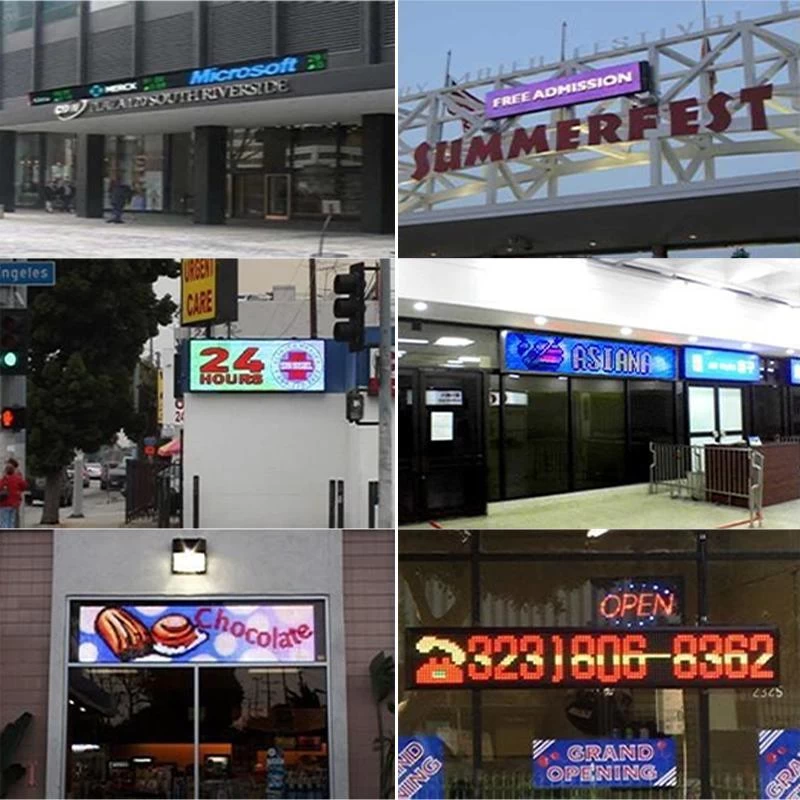

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications

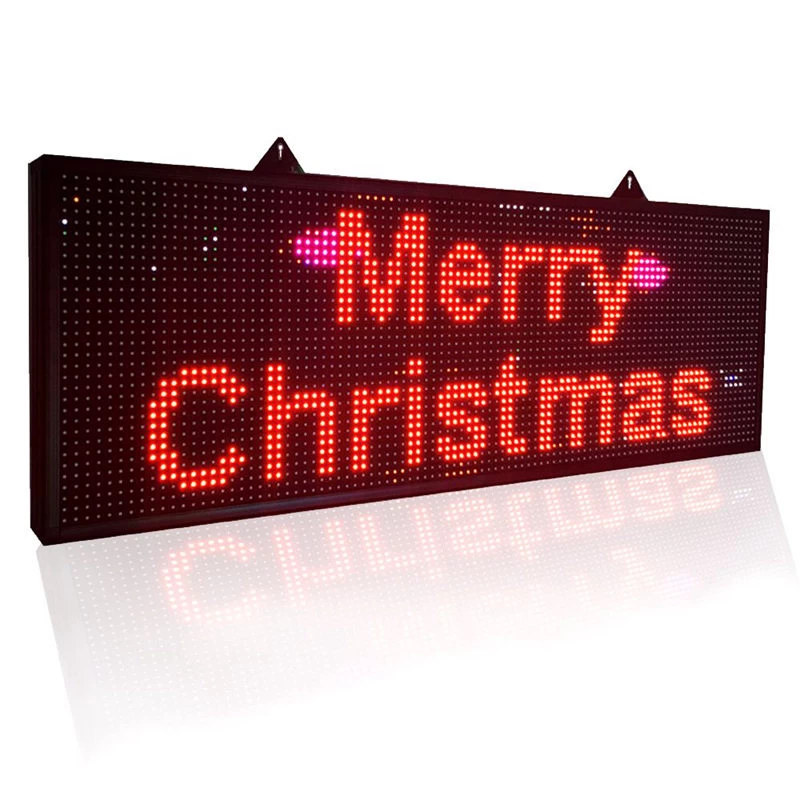

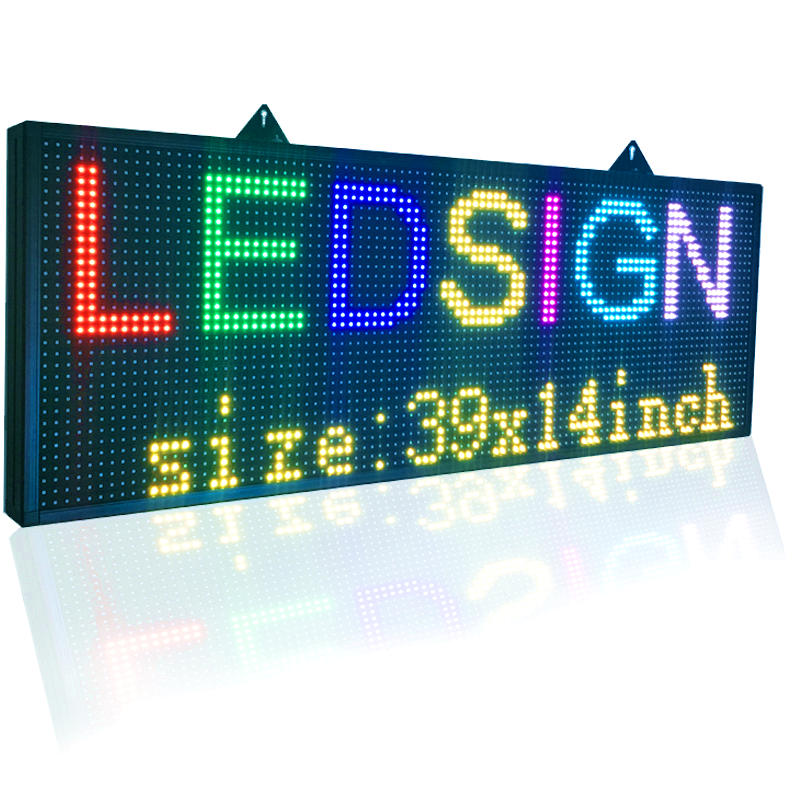

*Slim housing ,full RGB color P10 LED sign with SMD technology, With new software for MS Windows computer.
*strong aluminium case frame. Works with Windows operating system
*NOW WITH VIDEO TUTORIAL included.
*UL listed power supply UL listed 12V with USA plug 85-240 V, for indoor and outdoor use
*Display support : test,time, image, your company logo. Over 99 messages and logos are supported

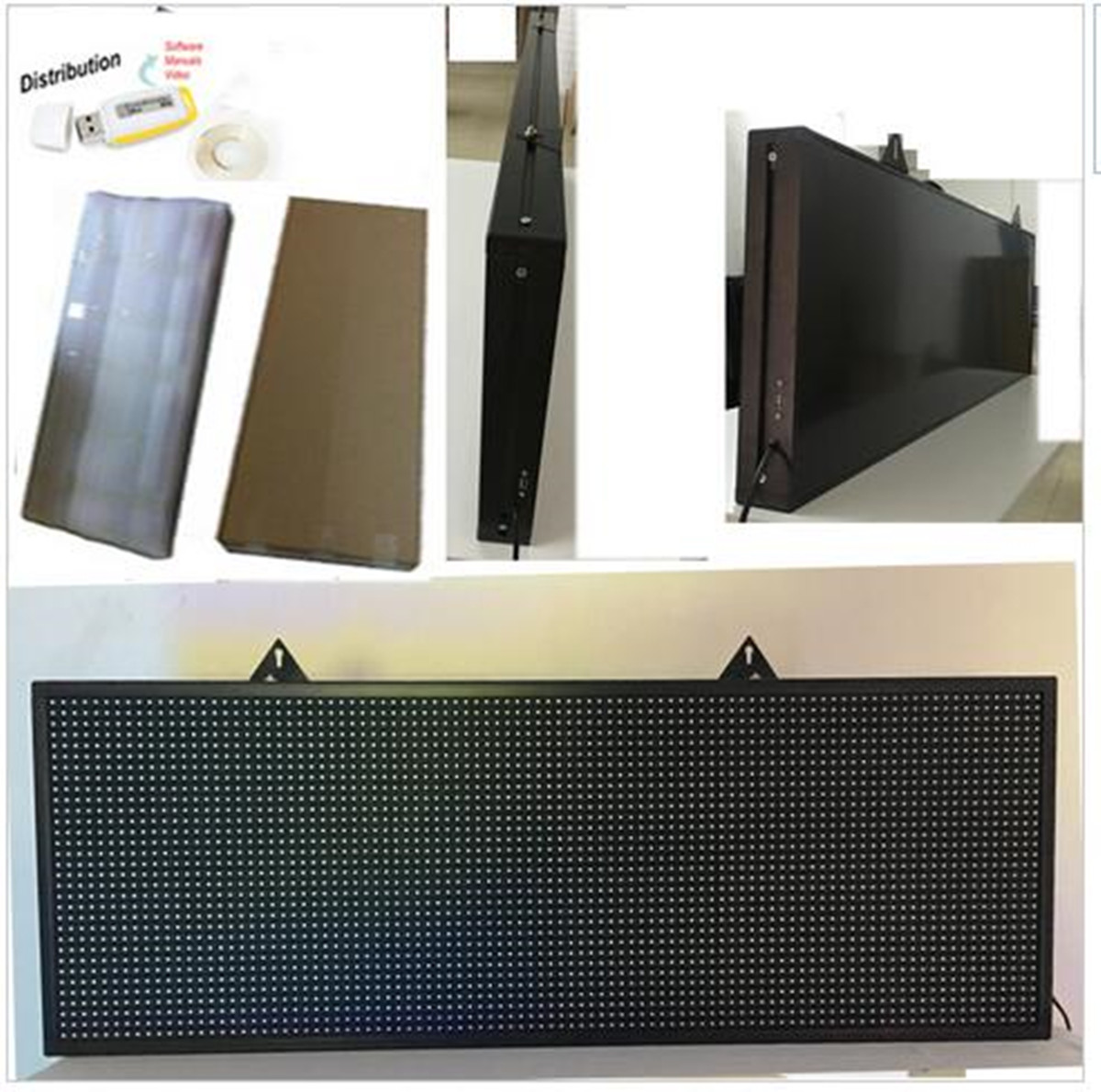

Package including
*LED sign 1 PCS (size 100x36cm / 39x 14 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|

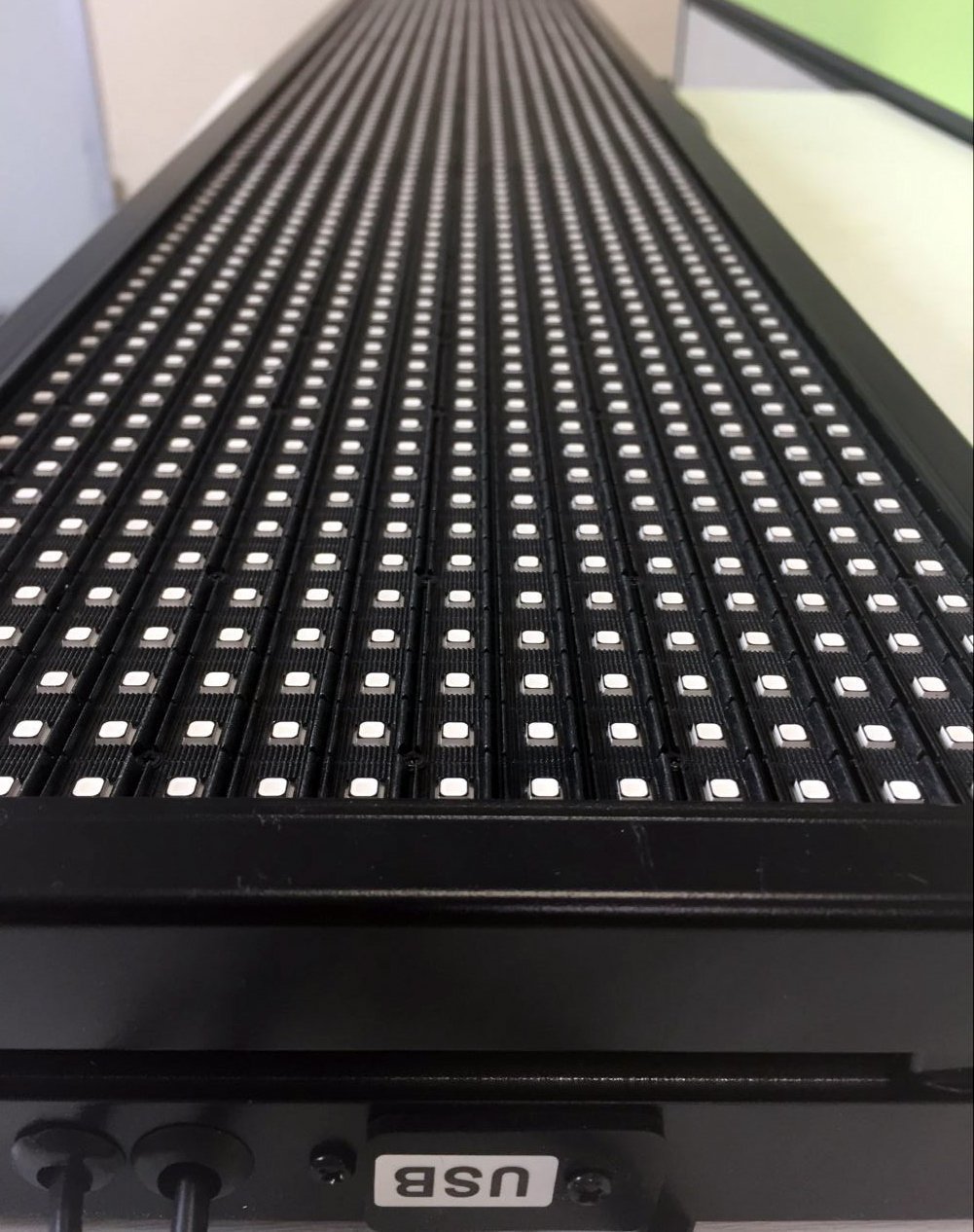

P10 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W32 X H16
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/4 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
|
Cabinet Size (mm)
|
W1000 x H360 MM (39x14 Inch)
|
|
Power Consumption Max (w/set)
|
100 Watt
|
|
Brightness(CD/㎡)
|
≥5500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,WIFI ,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
