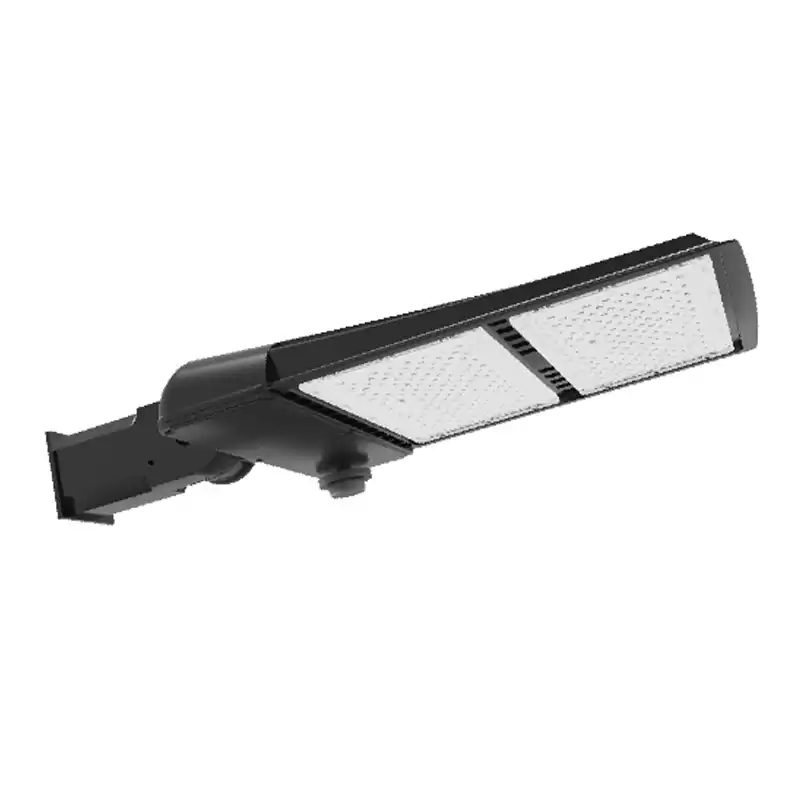

Product Name：LED Street light shoebox with motion sensor
Morstar LED Area Light 200E series is ideal for general area lighting, parking lots and shopping malls. It offers 3 distributions and 3 wattage optional, so you can choose the most suitable optical and light distribution for your application.

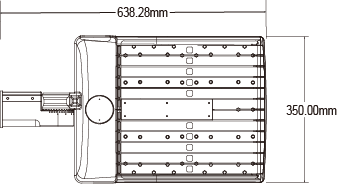

Dimension Drawings
Dimension 1: (50W~150W)
Dimension 2: (200W~300W)
Specifications
|
Input Power
|
50W / 100W / 150W / 200W / 240W / 300W
|
|
LED Chip
|
SMD3030
|
|
Driver Brand
|
Powerstar / Meanwell / SOSEN
|
|
Lumen
|
6500LM / 10400LM / 13000LM / 19500 LM / 26000LM / 31200LM / 39000LM
|
|
Input voltage
|
AC100-277V 50/60Hz
|
|
Lumen Efficacy
|
130LM/W
|
|
PF
|
＞0.9
|
|
Color Tempreture
|
2700K-6500K
|
|
CRI
|
70/80
|
|
THD
|
≤20%
|
|
Housing Color
|
Bronze / Black / Silver / White
|
|
Waterproof Rating
|
(WET) IP65
|
|
Operating Temperature
|
-40°C to +45°C(-40°F to +113°F)
|
|
Operating Humidity
|
10%-90% RH
|
|
Storage Temperature
|
-20℃ TO +60℃
|
|
Storage Humidity
|
10%-90% RH
|
|
Warranty Time
|
5 years
|
Features
1.Easy to install and operate
2.Energy saving, long lifespan
3.Light is soft and uniform, safe to the eyes
4.Instant start, no flickering, no humming
5.Green and eco-friendly without mercury
|
|
|
|
Power Select
|
Motion sensor
|
Photocell sensor
|
ADC12 Die casting
|
Compatible With Different Mount Brackets
|
|
|
|
Slip Fitter Mount
|
Square Pole Mount
|
WALL Mount
|
Round Pole Mount
|
Packaging information
|
Wattage
|
Product Size(mm/in)
|
Package Size(mm/in)
|
N.W (Kg/Ib)
|
G.W (Kg/Lbs)
|
QTY
|
|
50W
|
340 x 322 x 77.5 mm
13.39 x 12.68 x 3.05 in
|
580 x 400 x 130 mm
22.83 x 15.75 x 5.12 in
|
3.8 Kg(8.38 Ib)
|
4.8kg(10.59lb)
|
1 PCS
|
|
100W
|
340 x 322 x 77.5 mm
13.39 x 12.68 x 3.05 in
|
580 x 400 x 130 mm
22.83 x 15.75 x 5.12 in
|
3.8 Kg(8.38 Ib)
|
4.8kg(10.59lb)
|
1 PCS
|
|
150W
|
340 x 322 x 77.5 mm
13.39 x 12.68 x 3.05 in
|
580 x 400 x 130 mm
22.83 x 15.75 x 5.12 in
|
3.8 Kg(8.38 Ib)
|
4.8kg(10.59lb)
|
1 PCS
|
|
200W
|
538 x 354 x 72 mm
21.18 x 13.94 x 2.83 in
|
610 x 410 x 130 mm
24.02 x 16.14 x 5.12 in
|
5.2 Kg(11.47Ib)
|
6.7kg(14.78lb)
|
1 PCS
|
|
240W
|
538 x 354 x 72 mm
21.18 x 13.94 x 2.83 in
|
610 x 410 x 130 mm
24.02 x 16.14 x 5.12 in
|
5.2 Kg(11.47Ib)
|
6.7kg(14.78lb)
|
1 PCS
|
|
300W
|
538 x 354 x 72 mm
21.18 x 13.94 x 2.83 in
|
610 x 410 x 130 mm
24.02 x 16.14 x 5.12 in
|
5.2 Kg(11.47Ib)
|
6.7kg(14.78lb)
|
1 PCS
|

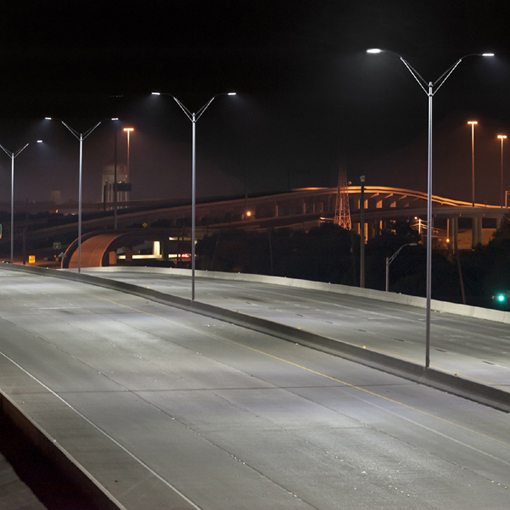

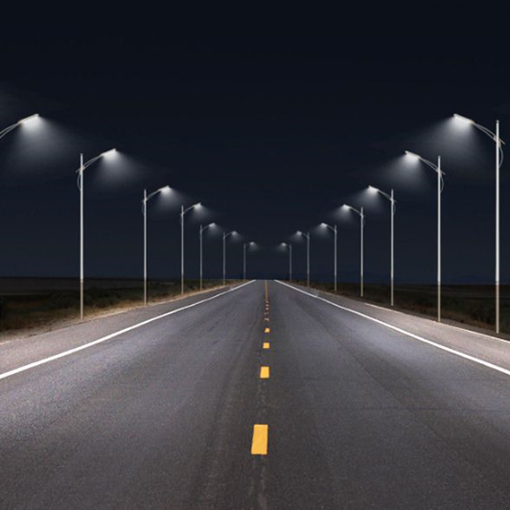

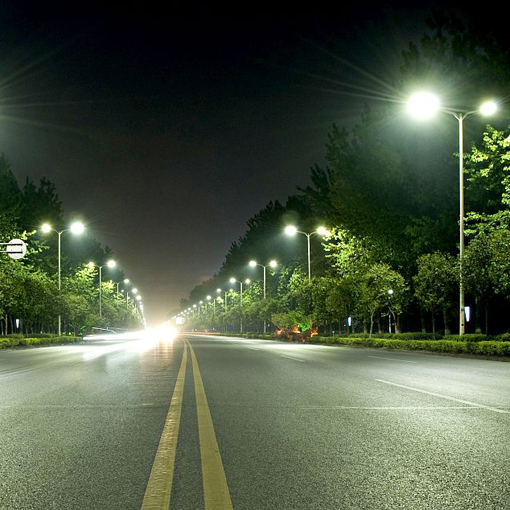

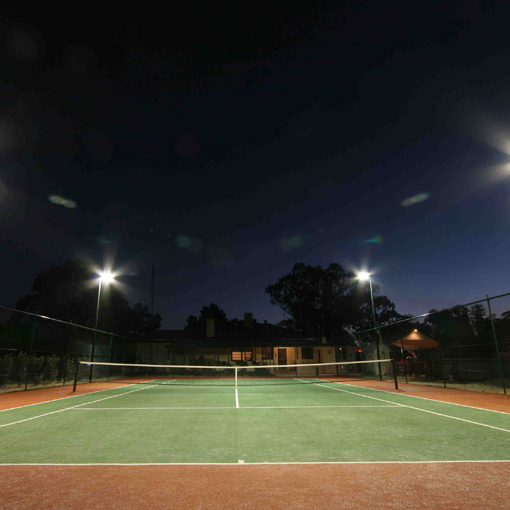

Applications
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
