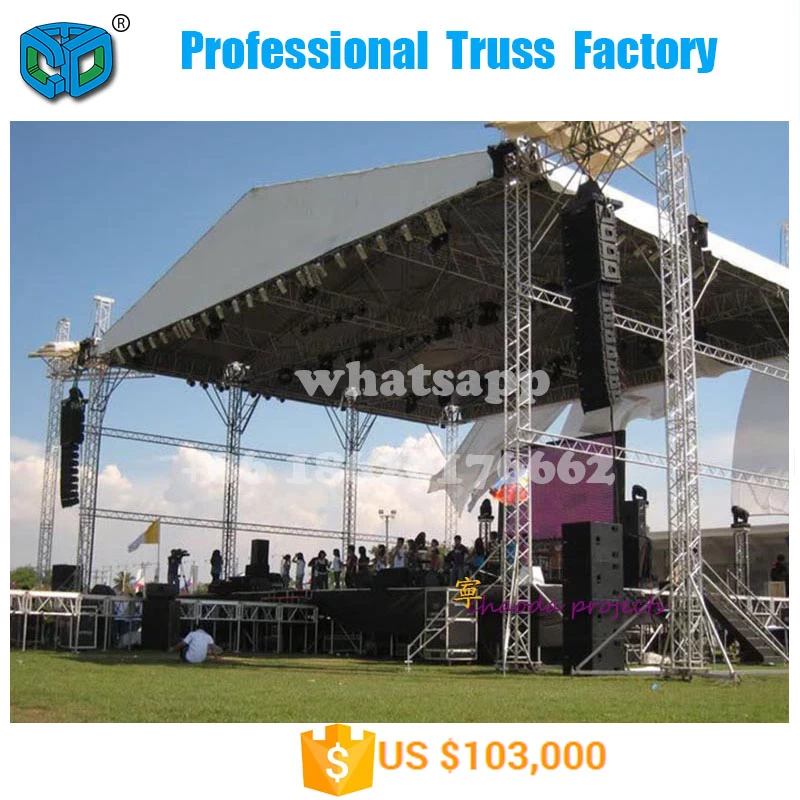

Outdoor stage aluminum lighting roof truss system

This aluminum lighting square box truss is good for roof building truss system

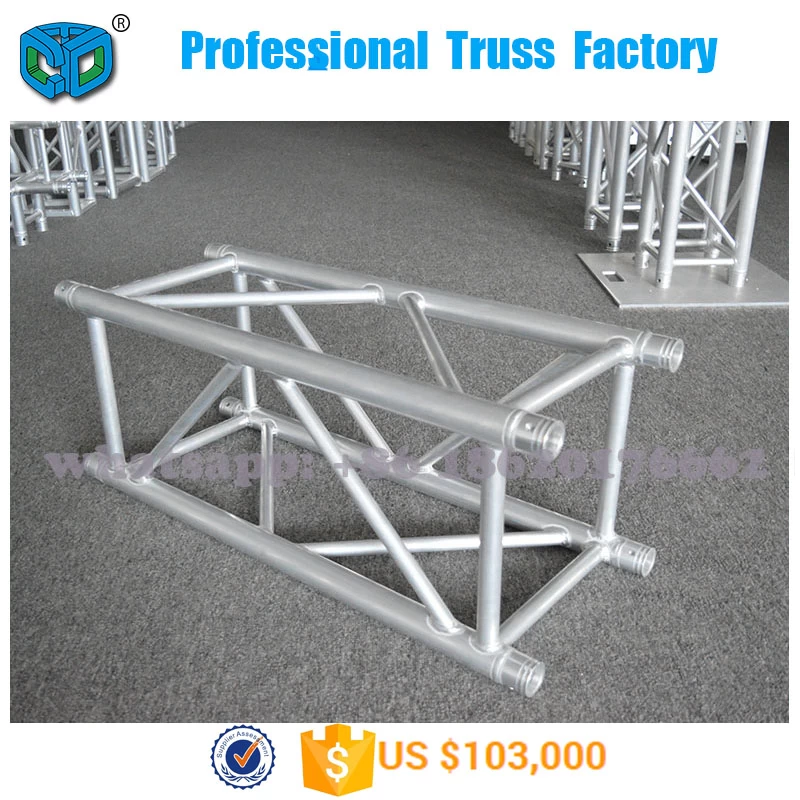

This aluminum lighting square box truss is one of the most important product we offer. We specialize in this for 10 years. The main characteristic of this outdoor stage roof truss for sale is beautiful looking with many years experient craftman welding technology. It has heavy duty loading capacity. This aluminum roof truss system can hang up to 2.5ton on a span of 6m. It is assemble design, so that convenient to transport. we can also make the customized lighting truss according to our customer request!

aluminum roof truss system



Specification:

Aluminum Alloy 6061-T6/6082-T6

Main Tube

Vice Tube

Brace Tube

50x4mm/50x3mm

50x2/30x2mm

20x2/25x2/30x2mm

Tube size base on truss size or customer's request



Span(m) symmetrical load(kg) Deflection(mm) Centre Load(kg) Deflection(mm)
2 1800 10 1300 10
3 1500 25 1060 20
4 1200 40 880 30
5 880 55 620 40
6 750 65 380 65
8 510 80 195 85
10 410 95 120 95
12 210 110 95 105


Chaoda has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage truss structures prepared for high loading.

Chaoda truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and manufactured according to European standard TUV and ISO9001, we give you loading date, user manual and video to teach you how to use these truss .


Installation:


Test report:





Packing and shipping:


Factory:




FAQ:

1Q: What certificate do Chaoda Truss have?

     A: SGS and TUV certification.

2. Q: What is the terms of payment?

     A: We accept Western Union, by T/T, 30% of invoice value as deposit, 70% balance paid before shipment, and some others.

3. Q: Where is the loading port?

     A: Port Huangpu in Guangzhou or Ports in Shenzhen.

4Q: What is your packaging?

     A: Air bubble film or carton or flight case.

5Q: How long the deliver time?

     A: General it is about 5-15 days.

6Q: What is your after-sales service?

     A: Free parts provided once broken within one year.

7Q: Do Chaoda Truss accept OEM order?

     A: Yes, we welcome OEM order as well.
