Outdoor Waterproof LED Motion Sensor Wall Pack Lights

Light up your outdoor area with LED full cut-off wall pack. It is a high efficient lighting solution that provides a long-lasting and energy-saving service. The rugged housing offers advanced thermal management and protection against outdoor environment without compromising aesthetics.

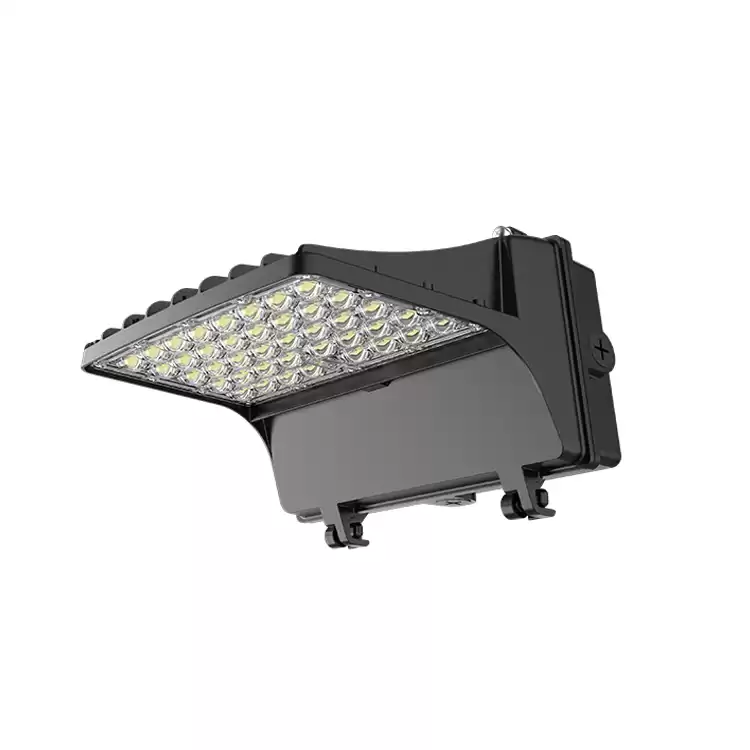

Outdoor Waterproof with Motion Sensor LED Wall Pack Light


Morstar's LED Full Cut-Off Wall Pack is designed at an angle to provide illumination that is more easily directed to a specific area compared to broader applications. With the help of the IP66 enclosed waterproof structure design of the LED wall light, you can directly get lighting where you need it to achieve more concentrated light output. They are great for a range of commercial applications including doorways, walkways, and any other outdoor areas in need of adequate lighting.


FEATURES:

• Easy installation
• ETL/cETL/DLC premium certificate
• Wet location rated IP65
• Emergency power 4W & operating time 1.5 hours
• Photocell and motion sensor options
• Type III distribution optics standard/Other optics available by request


SPECIFICATION

EWP901B

EWP902B

EWP903B

EWP904B

EWP905B

EWP906B

EWP907

Power Consumption

30W

40W

50W

60W

80W

100W

120W

Equivalent Wattage

100W MH

150W MH

150W MH

200W MH

250W MH

250W MH

400W MH

Lumens Delivered

3,900 lm

5,200 lm

6,500 lm

7,800 lm

10,400 lm

13,000 lm

15,600 lm

Efficacy

130 lm/W

CRI

>75

Color Temperature

4000K / 5000K /5700K adjustable

Input Voltage

120-277VAC / 120-347VAC


CONSTRUCTION:

• UV-resistant polycarbonate refractor lens
• Durable die-cast aluminum housing

• Light weight, and low transportation cost


RECOMMENDED USE:

• Building facade, commercial applications
• Industrial applications, retails
• Hospitality buildings


WARRANTY:

7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.

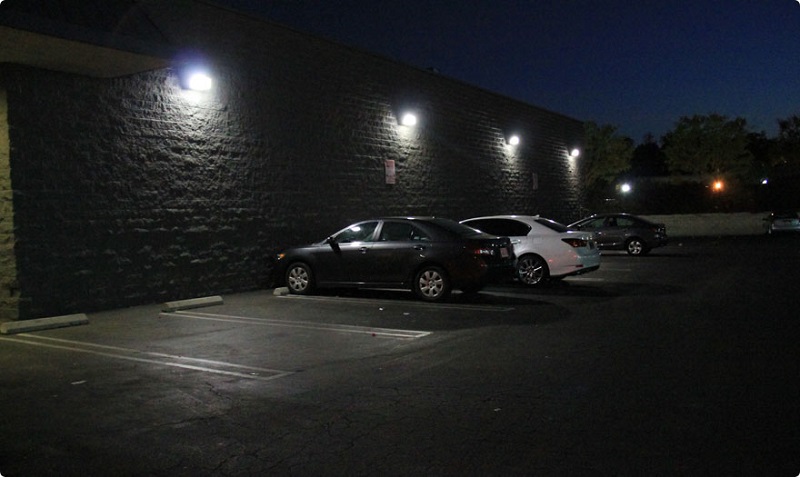

APPLICATION:

Outdoor Sensor LED Wall Pack Light
