QTZ160(6516)---Oversea Service 10t QTZ160(6516) Hammer Head Construction Tower Crane
1. 10t max load, 49m working radius with tip load 2.8t.
2. 10t hot selling tower crane/hydraulic lifting tower crane/hammed head topkit construction tower crane
3. China-made high quality tower crane, China good tower crane manufacturers with best price
4. high efficiency, CE, ISO, GOST certificates, oversea service available
Loadingcapacity of QTZ160 TC6516
| Jib length(m)
|
|
15
|
18
|
20
|
24
|
27
|
32
|
36
|
40
|
44
|
46
|
48
|
50
|
52
|
54
|
56
|
58
|
60
|
62
|
63
|
65
|
| 5t-26.96m
|
2 rate
|
5
|
5
|
5
|
5
|
4.992
|
4.095
|
3.556
|
3.125
|
2.772
|
2.619
|
2.479
|
2.349
|
2.230
|
2.120
|
2.017
|
1.921
|
1.832
|
1.749
|
1.709
|
1.633
|
| 10t-14.66m
|
4 rate
|
9.755
|
7.987
|
7.103
|
5.777
|
5.040
|
4.120
|
3.567
|
3.125
|
2.763
|
2.606
|
2.462
|
2.329
|
2.207
|
2.094
|
1.988
|
1.890
|
1.799
|
1.713
|
1.673
|
1.595
|
Mechanismspecification of QTZ160 tower crane
| Hoisting
|
2 rate
|
4 rate
|
KW
55/55
|
| m/min
|
104
|
52.05
|
50.05 25.02
|
| t
|
2.5
|
5
|
5 10
|
| Trolleying
|
m/min 58.6/29.3/8.79
|
2.2/1.5KW
|
| Slewing
|
r/min 0.61
|
5.5*2KW
|
| Climbing
|
m/min 0.4
|
5.5KW
|
| The rated lifting moment
|
1600KN.M
|
| The max lifting capacity
|
10t
|
| Jib length
|
65m
|
| Tip load
|
1.6t
|
| Trolleying radius
|
3-65(m)
|
| Slewing angle
|
360degree
|
| Main chord
|
125*125*12(mm)
|

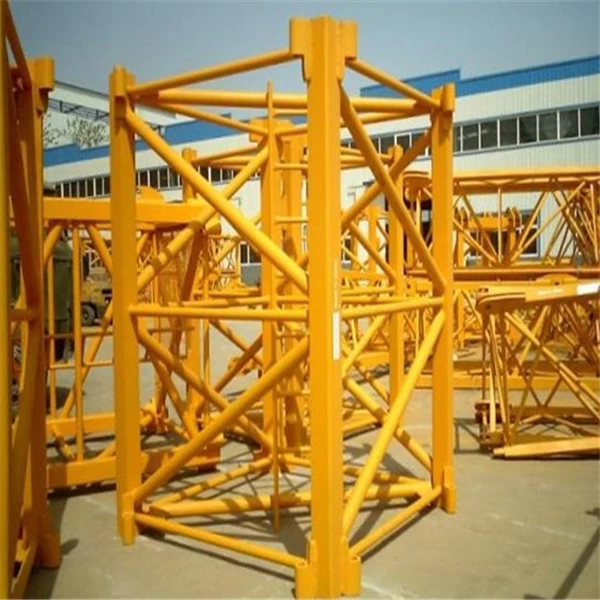

| Mast section
|
1.835*1.835*2.5(m)
|
| Necessary electric power
|
60.85KW
|
| Main supply
|
380V 50Hz/440V 60Hz
|
| Jib length(m)
|
65m
|
| Counterbalance(t)
|
22.5t
|
Technology and management
1): we have adopted the mostadvanced design technology of tower crane in china
2): we have first-classproduction equipment and precise inspection and testing devices
3): famous experts andexcellent talents are here
4): an excellent talentteam for pioneering and innovation.
The process features
1): automatic submerged arcwelding is adopted in the main section limbs and chord boom. It has highthermal efficiency, high penetration, high production efficiency, whilereducing the pores and crack defects, increases the weld strength and thebeautiful appearance.
2): we adopt carbon dioxide gaswelding; it has heat concentrated, a small welding line, high strength andresistance to rust and crack. it can reduce tress and deformation, it has highstrength and resistance to rust and crack.
3): shot blasting is used formasts to strength the hardness of steel surface; enhance the paint adhesion andprolonging its life
4): we have robot-weldingproduction lines, so the welding quality has reached international advancedlevel.
The advantages of the towercrane
1): high quality, highefficiency and high safety
2): high rigidness, resistantto corrosion and rust.
3): 20 years manufacturing andexporting experience
4): exports to 30 countries andregions
5): large lifting moment, largeloading capacity, long jib length
6): small energy consumption
Service (optional)
the seller send 2 technicians (one electrician and one mechanic) to the buyer for technical assistanceincluding supervising installation, commissioning, testing and training workersof the buyer, maintenance and dismantlement of seller’s products.
