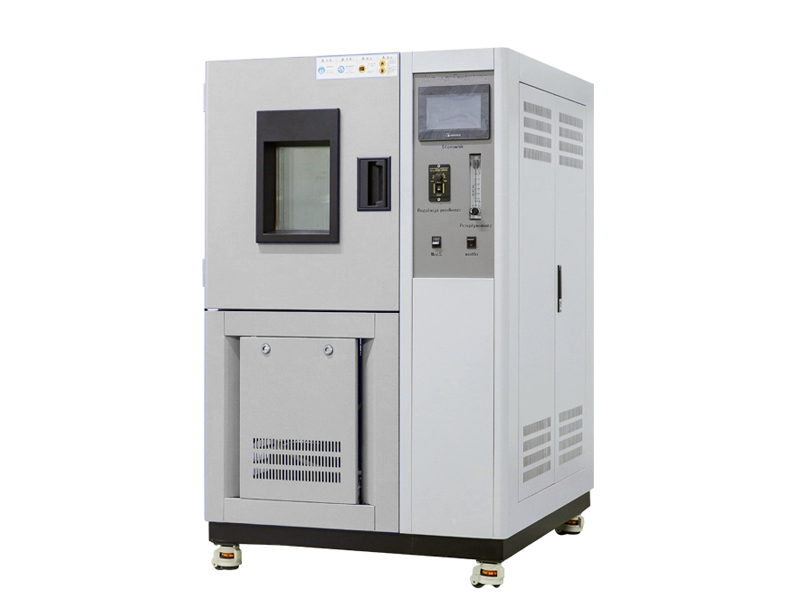

Ozone Aging Test Chamber China Supplier
It features a constant-temeprature cabin with the ozone of specified concentration, used to determine the resistance of vlcanized or thermoplastic rubbers to cracking when subjected to dynamic or static tensile strain.
The Amade chamber is made of high quality stainless steel, equipped with a viewing window for better observation. A ozonized air generator is a silent discharge tube that can generate stable ozone. Both dynamic and static tests can be conducted using this testing machine. There are 4 castors at the bottom of machine for better movability.
Test Standards
ISO 1431-1, JIS K 6259-1, IEC 60811-2-1, GB/T 2951.21, GB/T 13642-1 etc
Main Parameters
| Model |
AT-C1004 |
| Test chamber inner size |
500*600*500mm(W*H*D) |
| Temperature |
0℃~70℃ adjustable |
| Humidity |
20%-90%RH |
| Ozone concentration |
10~1000pphm +/- 10% pphm adjustable |
| Ozone gas flow velocity |
12-16mm/s |
| Test time |
0-999H/M/S |
