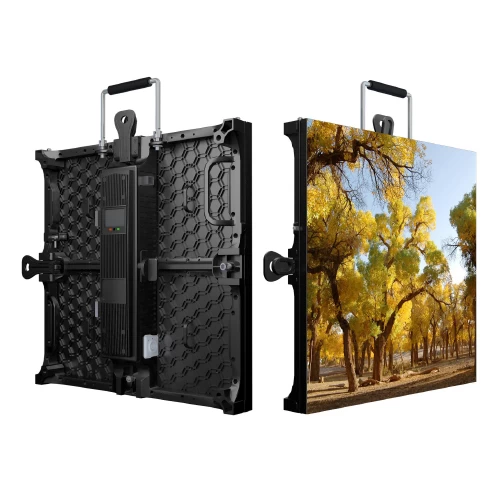

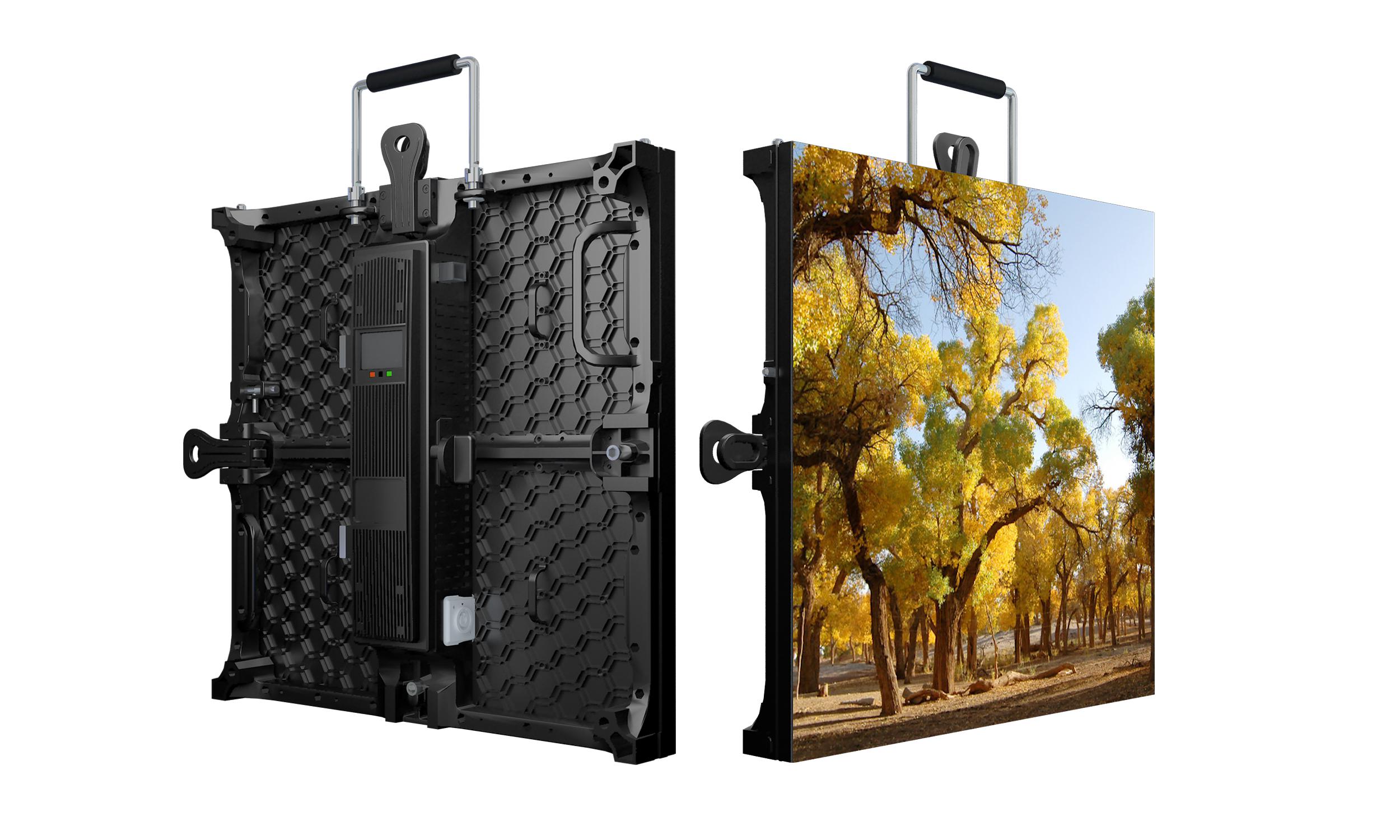

P 3.91 LED rental screen outdoor display for advertisement 500 × 500 standard box

1. Die-cast aluminum structure box to achieve high-precision flat seamless splicing and good heat dissipation;

2, no fan design, keep silent;

3. The cabinet is light and thin, easy to transport and load and unload;

4. Efficient and stable, high reliability and long service life;

5, 500 × 500 standard box, easy to calculate area;

6, using SMD black light, large viewing angle, high contrast, soft image, vivid image display;

7. Connect professional audio and video processing system to support the processing of various signals on the stage and play high-fidelity image signals;

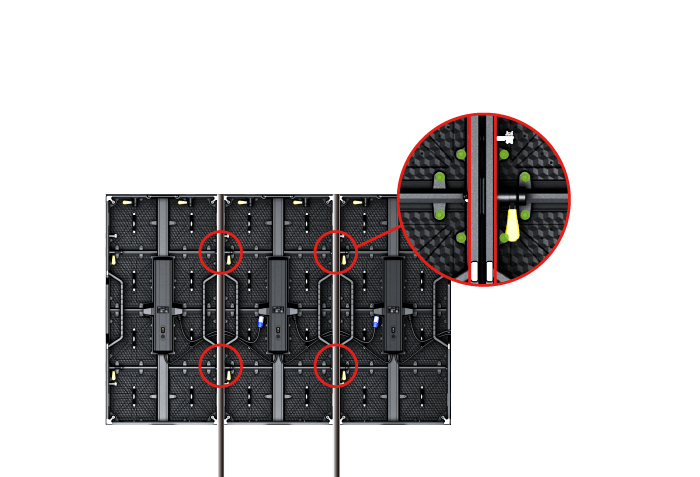

8. The cabinets are connected by special buckle structure, which is convenient and quick to install and disassemble without using other tools.

LED module physical parameter value

1) Physical point spacing: 3.91 mm

2) Physical density: 65536 points / m2

3) Module size: 250 mm*250 mm

4) Module resolution: 64*64 points

5) Cabinet size: 500*500*70

6) Cabinet resolution: 128 points * 128 points

1) Drive device: SUN 2016/SUN 20167

2) Refresh rate: ≥3840 HZ

3) White balance brightness: ≥1400 cd /m2

4) Average power consumption: 280 W/m2

5) Maximum power consumption: ≤560 W/ m

The LED rental display is light in weight, thin in structure, and has the functions of lifting and quick installation, so as to meet the requirements of rapid installation, disassembly and handling required for rental occasions;

easy to handle and easy to operate, the whole screen loading and unloading is fast bolted and connected, and can be accurately and Quickly screen and screen, and can be shaped differently to meet the requirements of the site;

unique process: unique structural design optimized by welding process, avoiding the situation of faults caused by poor solder joint contact caused by frequent handling.
