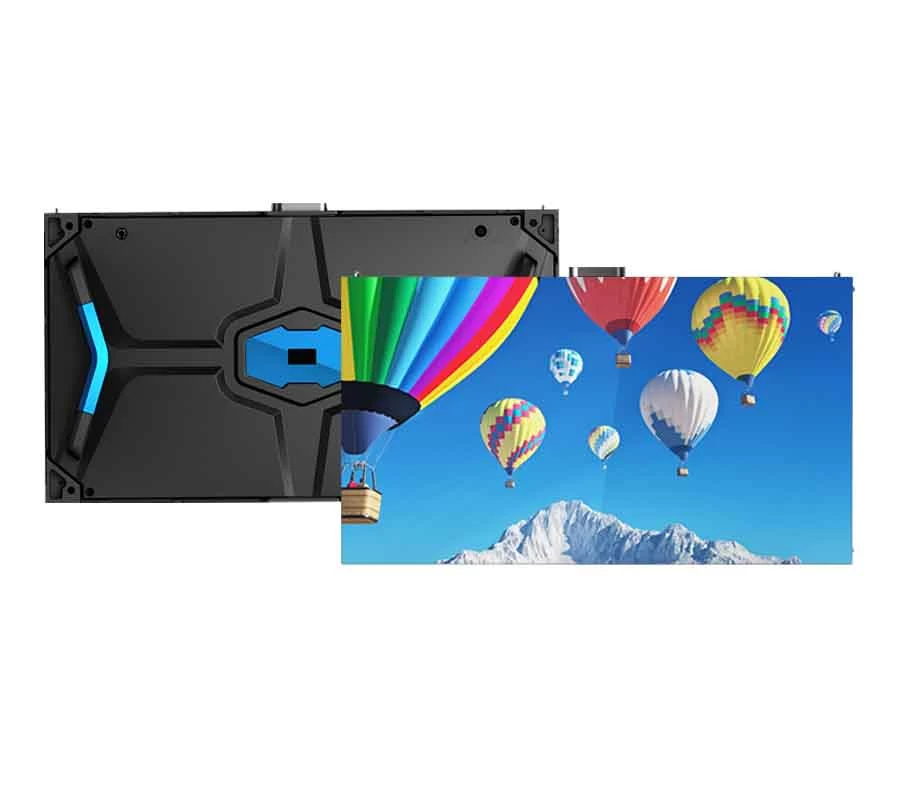

P1.33 Small Pixel Pitch Video Led Panel

Front Serviceable Module allows easy Maintenance, Saving Time & Spac.

16 Bit Grey Grade Processing, the color transition will be more natural.


  • CertificationUL CE ROHS FCC EMC ISO TUV ETL SGS SAA BIS SASO UV PVOC KC BQB FCC-ID FDA LVD MON C-TICK
  • Warranty TimeGuarantee Period 5 Years

P1.33 Small Pixel Pitch Video Led Panel

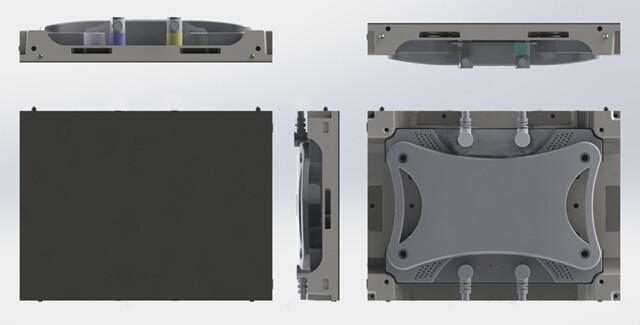

Front maintenance design

There is no need for maintenance channel behind the screen. It can be attached to the wall to save time and space.


16:9 golden ratio

Cabinet size is 16:9 golden ratio.Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.


It delivers an image which is super subtle and without getting tired after a longtime watchin.

Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.

Front Serviceable Module allows easy Maintenance, Saving Time & Spac.

16 Bit Grey Grade Processing, the color transition will be more natural.


Specifications

Pixel Structure

SMD1010

LED Model

1.33

Pixel DensityDOTS/m2

557511

Module ResolutionW×H

224×126

Module Sizemm

300W×168.75H

Module Maximum Power ConsumptionW

40

Module of Cabinet W×H

2×2

Cabinet ResolutionW×H

448×252

Cabinet Sizemm

600W×337.5H×80D

Cabinet Aream2

0.2025

Cabinet Weightkg

9.9

Cabinet Flatnessmm

≤0.2

Maintain Style

Pre  maintenance

Cabinet Flatness(mm)

≤0.1mm

Cabinet Material

die-cast aluminum

singel  pix brightness  corretion

have

singel  pix  chroma  corretion

have

white  balance  brightnessnits

200600Adjustable

Color TemperatureK

32009300Adjustable

viewing  angle (HorizontalVerticla)

160/160

Light Pixel Centerline Spacing Difference

<3%

Brightness/Color Uniformity

≥97%

Contrast Ratio

5000:1

Max  Power  consumptionW/m2

800

Avg Power ConsumptionW/m2

250

Power  supply  requirement

AC90264Vfrequency 4763Hz

Frame Frequency(Hz

50&60

Driving Mode

Constant current drive,1/32 SCAN

Grey Scale

65536

Refresh RateHz

Maximum3840

Color Processing Level

16bit

Video Effect

2KHD4K/8K Ultra Picture

Working Temperature/Humidity℃/RH

-2060  / 10%85%RHNo  moisture  condensation)

Storage Temperature/Humidity℃/RH

-2060  / 10%85%RHNo  moisture  condensation)

Certificate Standard

EMC,UL, CE, ROHS, CCCTUV-CE
