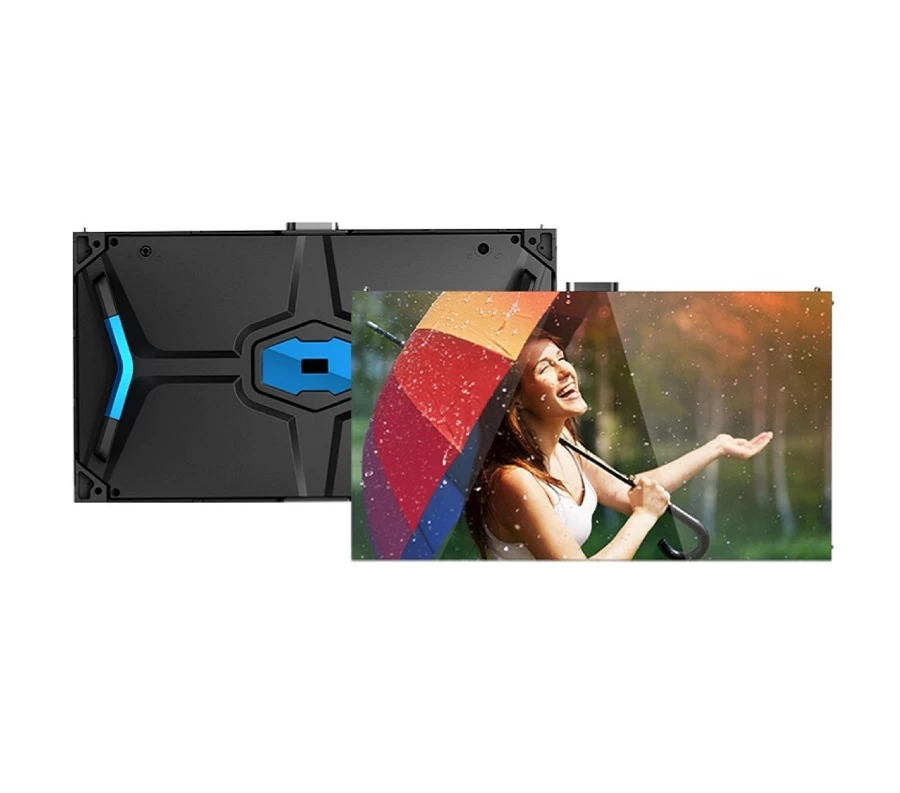

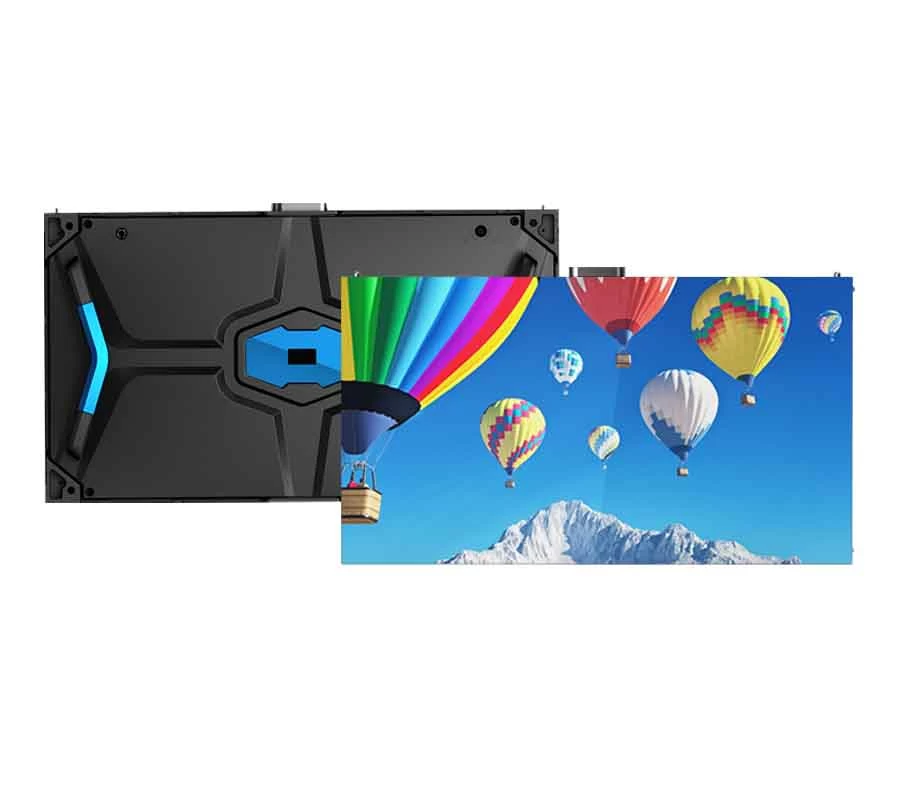

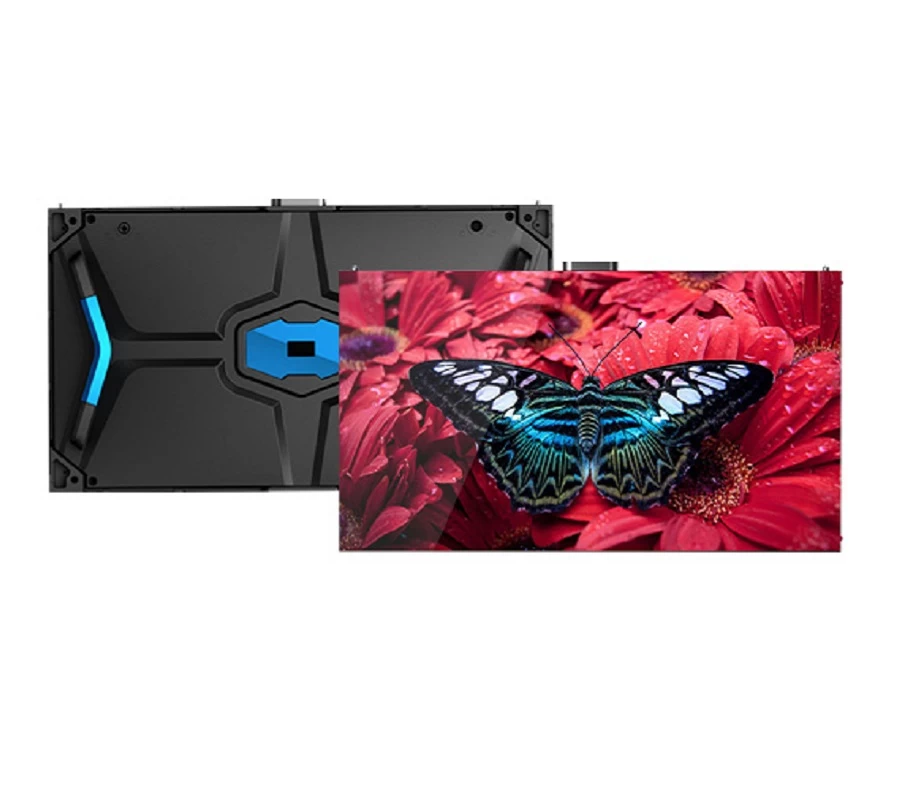

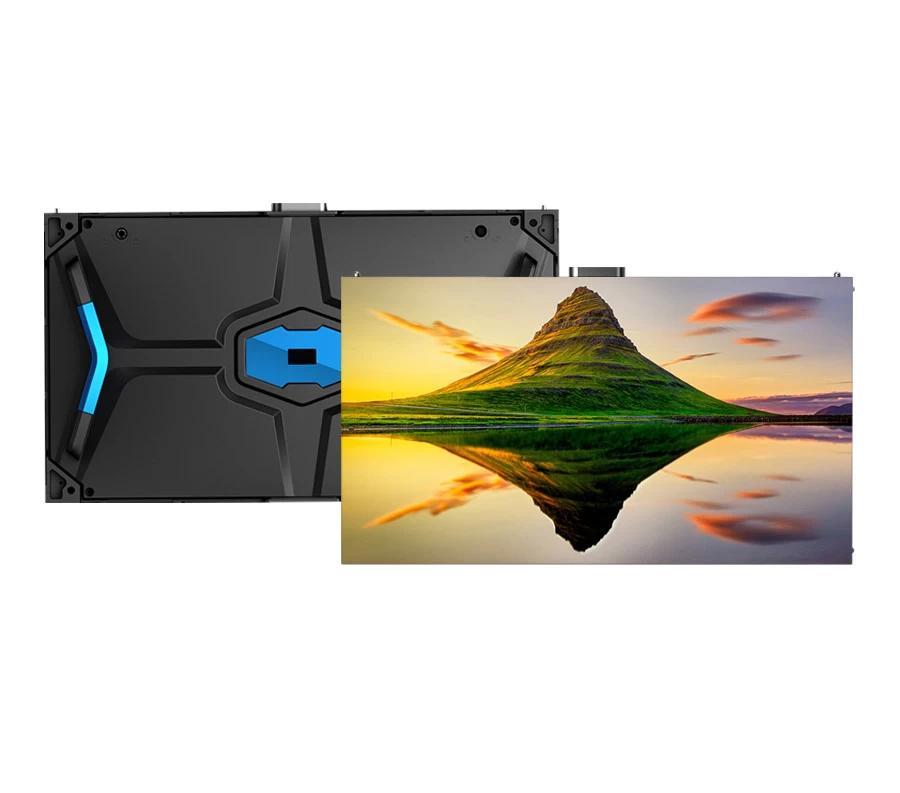

P1.56 high refresh rate indoor full color led screen
Pixel pitch: 1.5 mm
Pixel configuration: SMD
Brightness: 600-800 adjustable
Refresh rate: 1920/2880/3840 Hz
Panel dimension: 600×337.5×76 mm

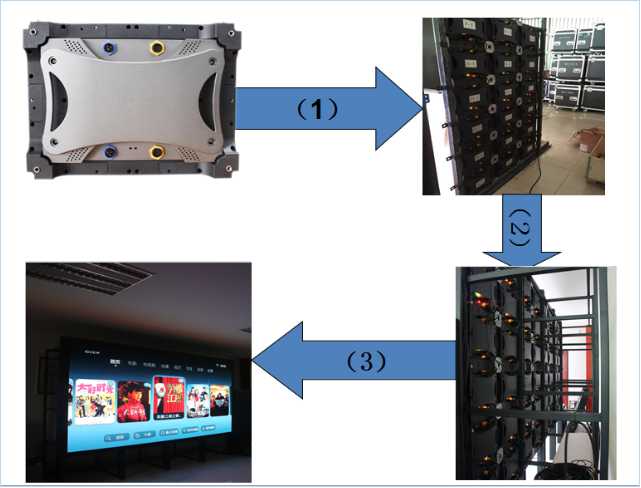

Convenient Front/Rear Installation and Maintenance
The install procedure is as quick as block-building. It supports for both front and rear installation with a panel thickness of only 100mm. Additionally, module, power supply, receiving card, conversion card and cables between panels can all be maintained quickly from the front without professional skills.
Low Cost of Splicing
Standard 16:9 panel can also precisely achieve HD/FHD/UHD/SHV resolution just right,and with a 27" diagonal panel size it can become a perfect substitute for any existing 54" or 108" LCD screen.
Product Features:
|
Pixel Structure
|
SMD1010
|
|
LED Model
|
P1.56
|
|
Pixel Density（dots/m2）
|
409600
|
|
Module Resolution（W×H）
|
128×108
|
|
Module Size（mm）
|
200（W）×168.75（H）
|
|
Module Maximum Power Consumption（W）
|
25
|
|

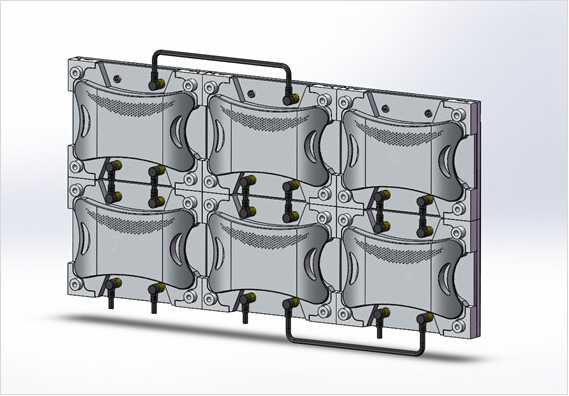

Module of Cabinet （W×H）
|
3×2
|
|
Cabinet Resolution（W×H）
|
384×216
|
|
Cabinet Size（mm）
|
600（W）×337.5（H）×80（D）
|
|
Cabinet Area（m2）
|
0.2025
|
|
Cabinet Weight（kg）
|
9.9
|
|
Cabinet Flatness（mm）
|
≤0.2
|
|
Maintain Style
|
Pre maintenance
|
|
Cabinet Flatness(mm)
|
≤0.1mm
|
|
Cabinet Material
|
die-cast aluminum
|
|
singel pix brightness corretion
|
have
|
|
singel pix chroma corretion
|
have
|
|
white balance brightness（nits）
|
200～600 Adjustable
|
|
Color Temperature（K）
|
3200～9300 Adjustable
|
|
viewing angle (HorizontalVerticla)
|
160/160
|
|
Light Pixel Centerline Spacing Difference
|
<3%
|
|
Brightness/Color Uniformity
|
≥97%
|
|
Contrast Ratio
|
5000:1
|
|
Max Power consumption（W/m2）
|
800
|
|
Avg Power Consumption（W/m2）
|
250
|
|
Power supply requirement
|
AC90～264V，frequency 47～63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Driving Mode
|
Constant current drive，1/27
|
|
Grey Scale
|
65536
|
|
Refresh Rate（Hz）
|
Maximum 3840 - 5760
|
|
Color Processing Level
|
16bit
|
|
Video Effect
|
2KHD、4K/8K Ultra Picture
|
|
Working Temperature/Humidity（℃/RH）
|
-20～60 / 10%～85%RH（No moisture condensation）
|
|
Storage Temperature/Humidity（℃/RH）
|
-20～60 / 10%～85%RH（No moisture condensation）
|
|
Certificate Standard
|
CCC，TUV-CE
|
It delivers an image which is super subtle and without getting tired after a longtime watchin.
Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.
Front Serviceable Module allows easy Maintenance, Saving Time & Spac.
16 Bit Grey Grade Processing, the color transition will be more natural.
16:9 New Generation Small Pitch Screen
Cabinet size is 16:9 golden ratio.Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.
