Indoor P2.5
LED Display Module Specification
|
Pixel
|
Pixel Pitch
|
2.5 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
160,000 Pixel/m²
|
|
LED Lamp
|
LED Type
|
SMD 2121
|
|
LED Lamp
|
Nation Star /King light
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;174-230mcd
Green:520-525nm;680-900mcd
Blue:470-475nm;130-160mcd
|
|
Module
|

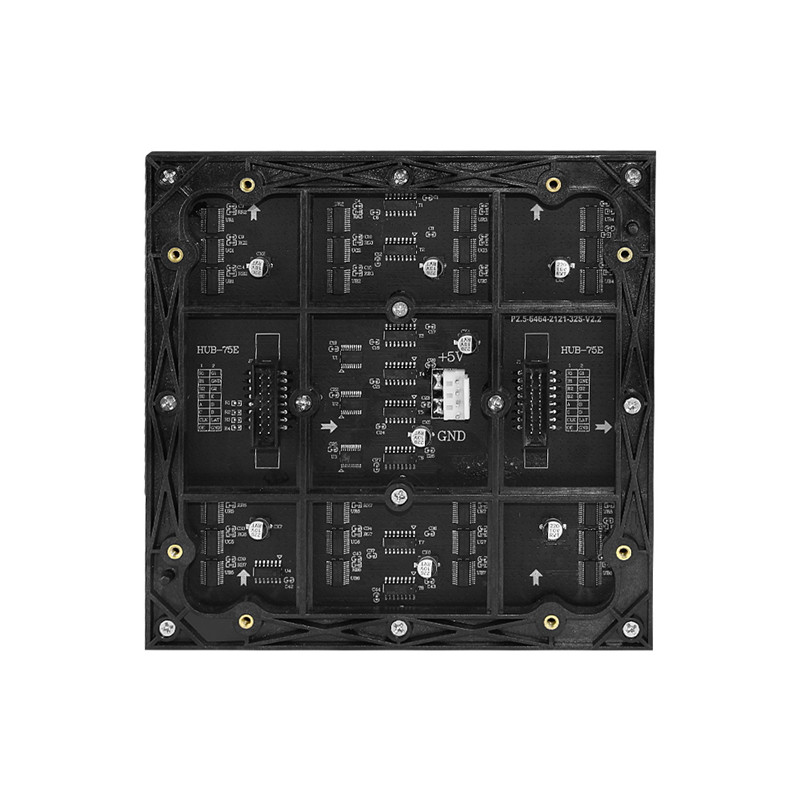

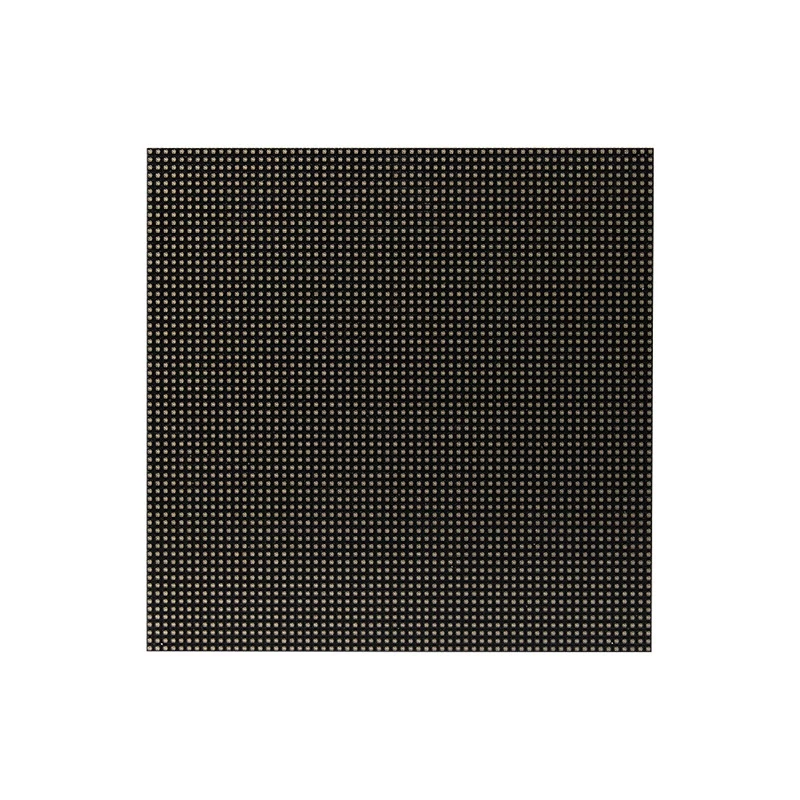

Module Dimension
|
160 mm(W)x160 mm(H) or 320 mm(W)x160
mm(H)
|
|
Module Resolution
|
64 Pixel * 64 Pixel or 128 Pixel * 64 Pixel
|
|
Scanning Method
|
1/32 S
|
|
Drive IC
|
5020 /5124 /5153 / 2037 /2038
/2038S/2053
|
|
Refresh Rate
|
>1920HZ
|
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1300 cd/m²
|
|
Best Viewing Distance
|
2-50 m
|
|
LED Life
|
100,000 Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Module Weight
|
0.25 kg/piece
|
Outstanding Features :
1. With pure black 1515 led, perfect color consistency,dot to dot matching 1920 x 1080 / 3840 x 2160 2K/4K resolution for the best display result.
2. Module size 320*160mm, 1/32 Scan, 128*64 resolution. 100% dot to dot match 1920*1080 2K video resolution for perfect display result.
3. Use TG (170 ℃) immersion golden S1000-2 substrate to ensure that no deformation of PCB board.
4. 2121 High standard Pure black led, color contrast ratio reach to 9000:1, True 16bit gray scale, surface emitting with big view angle ensures the best color performance.
5. Magnet installation tosave time and manpower, no gap between modules and mask provide good protectionfor led during installation.
6. High quality thermal conductivity material for cabinet back, excellent ventilated design for heat dissipation, improving the stability and lifespan of screen.
