P3.91 indoor tile screen HD LED display

Features:
1.Waterproof and moisture-proof: The bottom shell, mask, power cable and signal cable of the indoor floor LED screen module are all equipped with waterproof and moisture-proof materials, made of raw materials with low moisture absorption coefficient, and the front and rear of the cabinet can reach the protection grade of IP40.

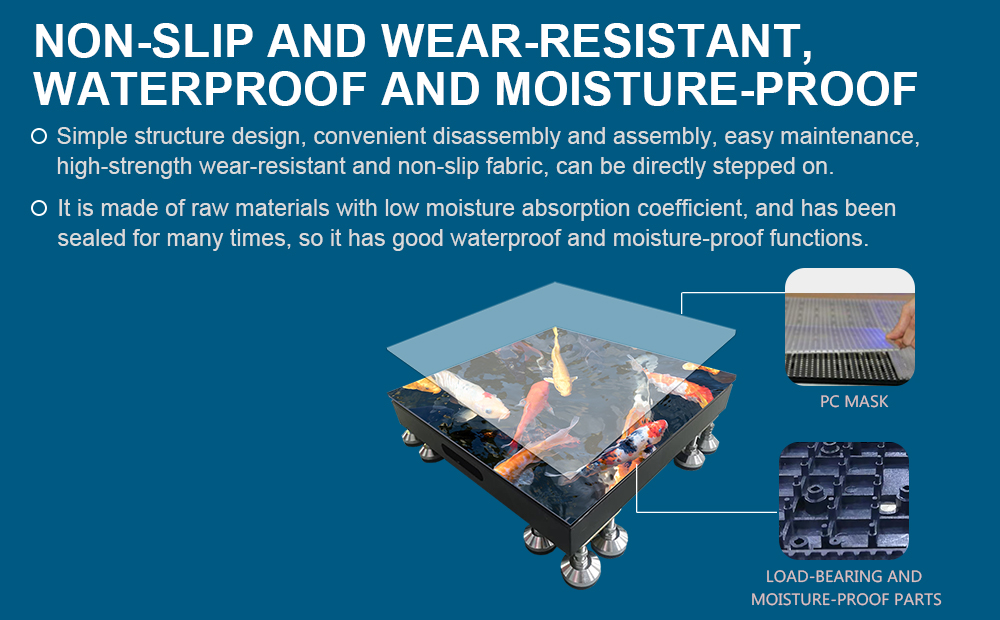

2.Anti-slip and wear-resistant: The mask of the intelligent interactive floor Led screen is made of imported PC material, which has high wear resistance and flexibility, as well as good resistance to high and low temperatures. The mask has better anti-slip and weight-bearing functions.

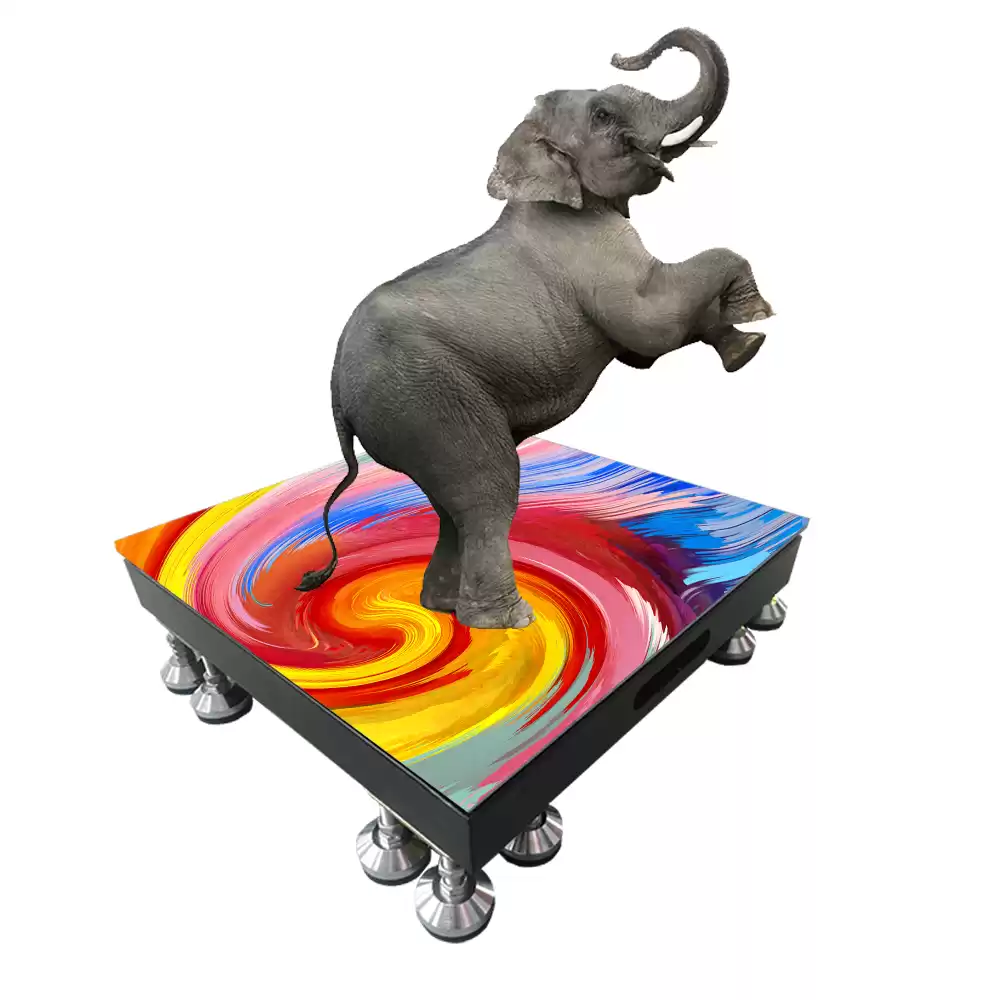

3.Super load-bearing: Each component of the intelligent interactive LED floor screen can have an ultimate load-bearing capacity of up to 2 tons per square meter.
4. Mute heat dissipation: The power box adopts a special heat dissipation device to achieve a better mute heat dissipation function.



A high protective floor tile screen


High end places will be equipped with LED display screens on the ground, which we call floor tile screens. Chipshow high-end floor tile screens are born for this purpose. Our floor tile screen is made of high-strength non slip fabric, which can be directly stepped on, and has been sealed for many times, which can achieve a good waterproof and moisture-proof effect.


Floor tile screen


Diverse sensing methods


The LED display screen adopts infrared induction, radar induction, built-in induction and other induction methods, which can accurately sense the passage of objects from above, so as to achieve the desired effect.


LED screen


Strong anti-collision ability

Our floor tile screen is covered by a high-strength PC panel, and the display box is designed with a high-strength metal shell, which has strong anti-collision and load-bearing capacity, and there is no problem standing on a group of people.


Indoor LED display

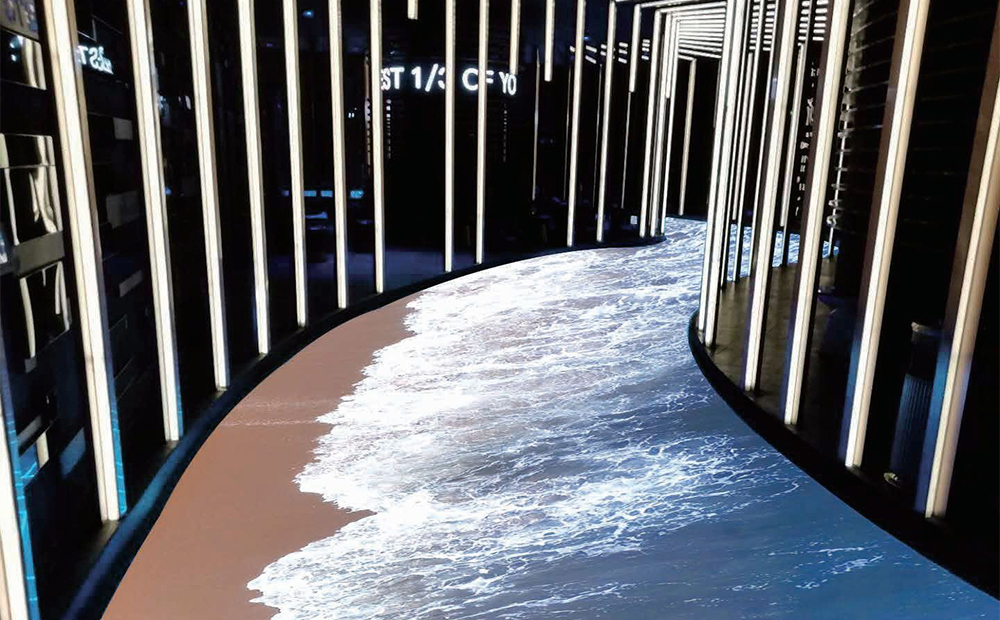

Excellent application effect


Chipshow tile screen is often used in some high-end places. The gorgeous decoration effect can always satisfy customers. The display screen can achieve many virtual effects you want, making people feel like they are in it.


LED Video wall


Specification parameters


Module Parameter
Item
Specification Parameter
Pixel Pitch、Resolution rate、size
3.91mm 、64×64dot、250X250mm

                 Pixel color Pixel LED

1R1G1B、 SMD1921
Working voltage、Module Power

                    DC5V、50W

Driving IC、Driving way
MBI2153、1/16

Cabinet Parameter


Material、Cabinet Weight(kg/Cabinet)
Iron、 7.8KG
Resolution rate、size、Module quantity
128*256Dots、500*1000*100mm、2*4
Density
65536dot/㎡
White balance 、Color temperature
2500 CD/㎡、3200K-9300K
view angel、Non-Flatness、Module
H/V:120°/120°
Maximal power/㎡、Average power/㎡
800W/㎡、260W/㎡
Frame frequency、Refresh frequency
60Hz、2000Hz、13bit
Control system、System supports
CHIPSHOW、Windows XP,WIN 7
Working temperature、Protection grade
-20~50℃、front/rear:IP40

Reference only
