Outdoor
P3.91 LED Video Wall Specification
|
Pixel
|
Dot Pitch
|
3.91mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel/SQM
|
65536 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 1921
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
64 Pixel * 64 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/8 Scanning
|
|
Module Dimension
|
250 mm(Width)x250 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|

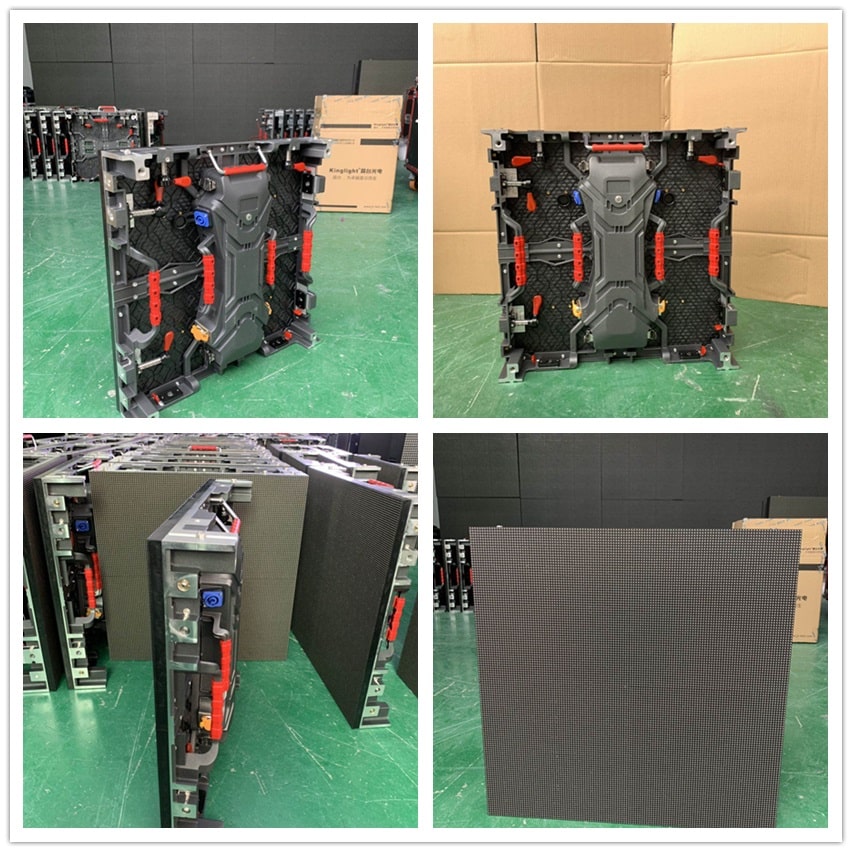

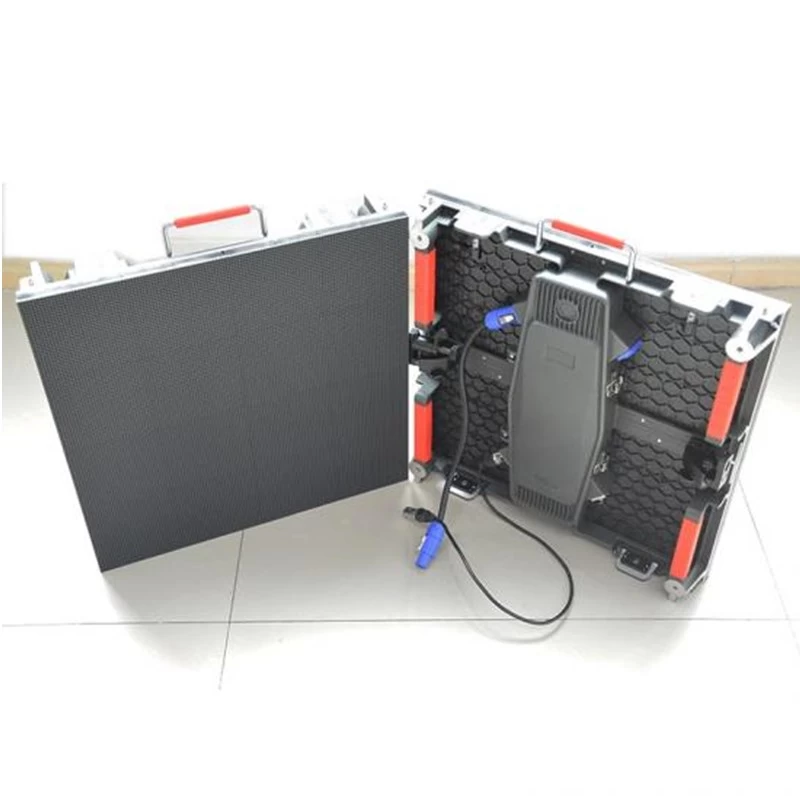

Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
500*1000mm /500*500mm
|
|
Module QTY
|
2(Width)X4(Height) or 2(Width)X2(Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
>5000cd/m²
|
|
Best Viewing Distance
|
4~50m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 65
|
|
LED Screen Weight
|
17.5 kg/cabinet
|
Outstanding Features :
1.Outdoor big led display high resolution and high brightness, small pixel in the world 3.91mm, unequalled image quality in outdoor environment.
2.Outdoor led display manufacturers: ingress protection being IP65, weather proof and dust proof.
3.Full color led display: high brightness uniformity and color uniformity(≥95%).
4.Custom led display: super thin and light with die-casting aluminum cabinet design.
5.Outdoor led video display: good anti-UV and anti-oxidation performance.
6.Programmable led screen: large viewing distance, 140° in horizontal, 140° in vertical.
7.Large led sign: excellent flatness and no splicing gap between modules.
8.Led display project: quick installation and removal with facile connection lock.
9.The pixel is 3.91 mm.The three color (R,G,B) chips are encapsulated into a single pixel in a rubber class. It has good color mixing, good consistency, and the led pixel wall density is 65,536 dots /㎡.
10.High definition, high contrast (outdoor led display signs three in one structure, not only improve the led digital screen fineness, but enhance the led display system effect. The SMD led display lamps save more capacity than DIP lamps, which increased the contrast ratio of LED for display then provide viewer better watching experience.
11.The LED screen board chips have been selected with high quality, anti-static, lower brightness attenuation and high wavelength stability.
12.Led display screen suppliers: standard modules and cabinets, quicker installation, shorter delivery.
