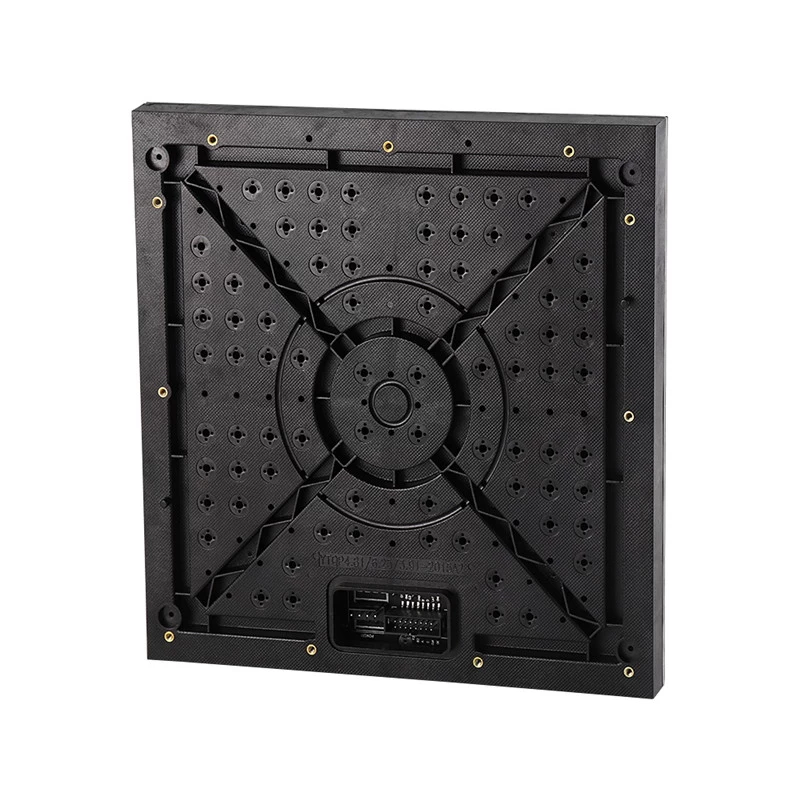

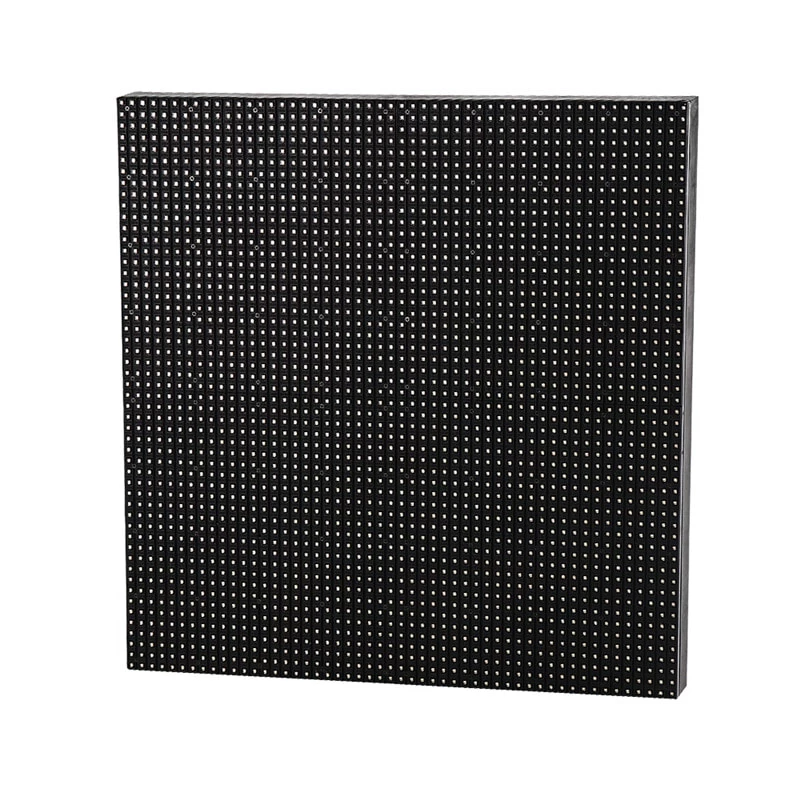

P4.81 Indoor Full Color SMD LED Module (250*250mm)



Indoor P4.81 LED Display Module Specification

Pixel

Pixel  Pitch

4.81 mm

Pixel Configure

1R1G1B SMD 3IN1

Pixel Density

43,264 Pixel/m²

LED Lamp

LED Type

SMD 2121

LED Lamp

Nation Star /King light

Chip Brand

EPISTAR

Wavelength & Brightness

Red:620-625nm;174-230mcd

Green:520-525nm;680-900mcd

Blue:470-475nm;130-160mcd

Module

Module Dimension

250 mm(W)x250 mm(H)

Module Resolution

52 Pixel * 52 Pixel

Scanning Method

1/13 S

Drive IC

5020 /5124 /5153 / 2037 /2038 /2038S/2053

Refresh Rate

>1920HZ

Viewing Angle

Horizontal : 140 °     Vertical: 140 °

Brightness

800-1300 cd/m²

Best Viewing Distance

4-50 m

LED Life

100,000 Hours

Maximum Power

600w/m²

Average Power

300w/m²

Input Voltage

220V/110V ±10%

Operation Environment

Temperature: -20°C~60°C; Humidity: 10%~95%

Protection Grade

IP 43

LED Module Weight

0.8 kg/piece
