Display and Control Feature

Structure Feature

Items

Parameter

Items

Parameter

Pixel Pitch

4.81mm

LED module size

250mm*250mm

Pixel composing

1R1G1B(3IN1)

Display resolution/module

52 dots*52dots

Wavelength (R)

625±5nm

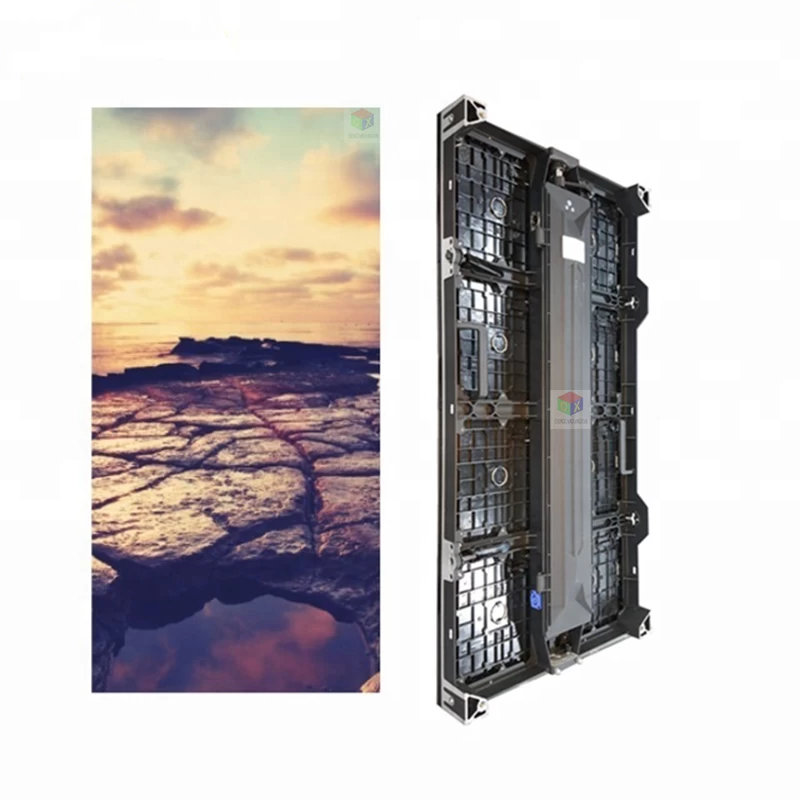

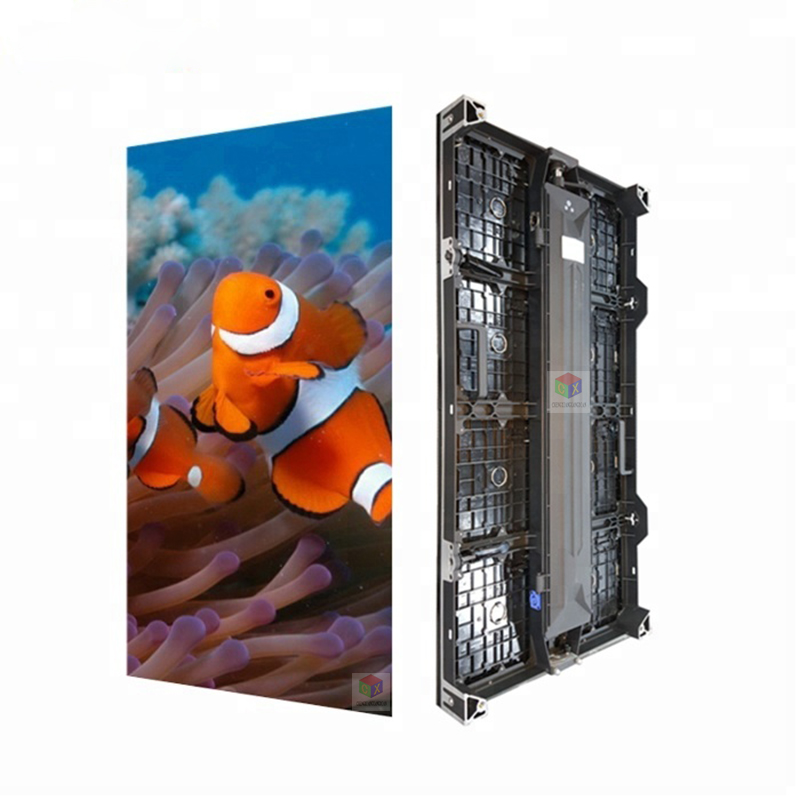

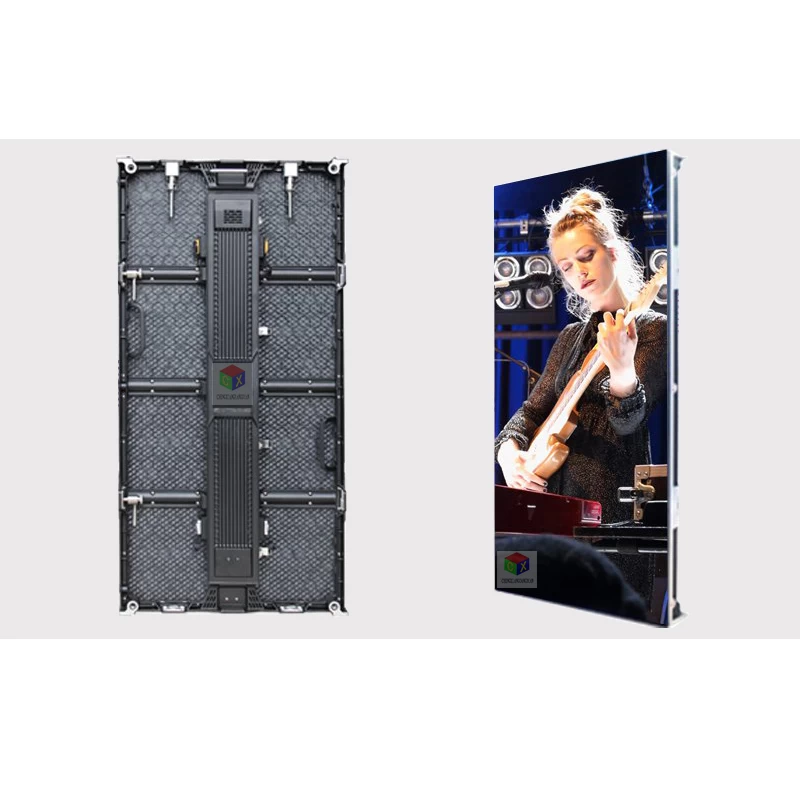

Standard cabinet size

500*1000mm

Wavelength (G)

522±2.5nm

Weight per sqm

about 30 Kg/sqm

Wavelength (B)

567±2.5nm

Protection classification

IP65

Wave Angle (H)

140°(H)/140°(V)

Install mode

Wall mounted, hung and stand structure

LED package

SMD1818 or SMD1921

Cabinet Material

Die-cast Aluminum

Density

43264dots/sqm

Working Power

Display color

256*256*256

Specification

Parameter

Whiteness brightness

≥6200cd/m2

Working voltage

5V

Brightness level

128 grade

Max power/sqm

800W/sqm

Changing frame frequency

60 Hz

Average power/sqm

400W/sqm

Refresh

1920 Hz

Short circuit protection

Yes

Driving method

Constant current 1/13 scan

Control mode

synchronous

Working Environment

Display port

DVI

Specification

Parameter

MTBF

>5000 hours

Environment

Outdoor

Out of control

1/10,000 ( scattered)

Working temperature

--20~60°C

lifetime

100,000 hours

Working Humidity

10~90%
