Outdoor

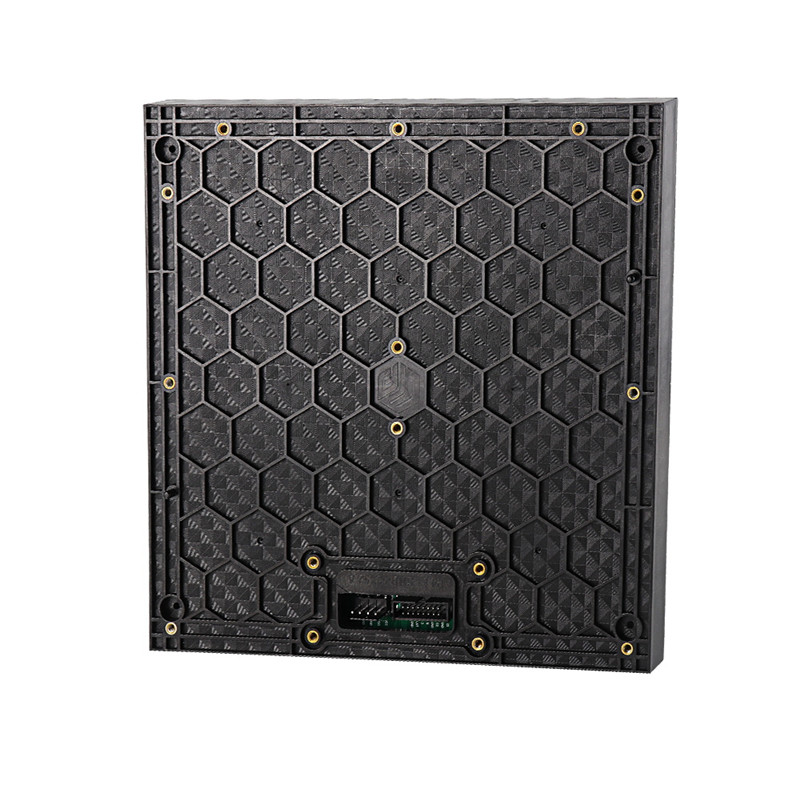

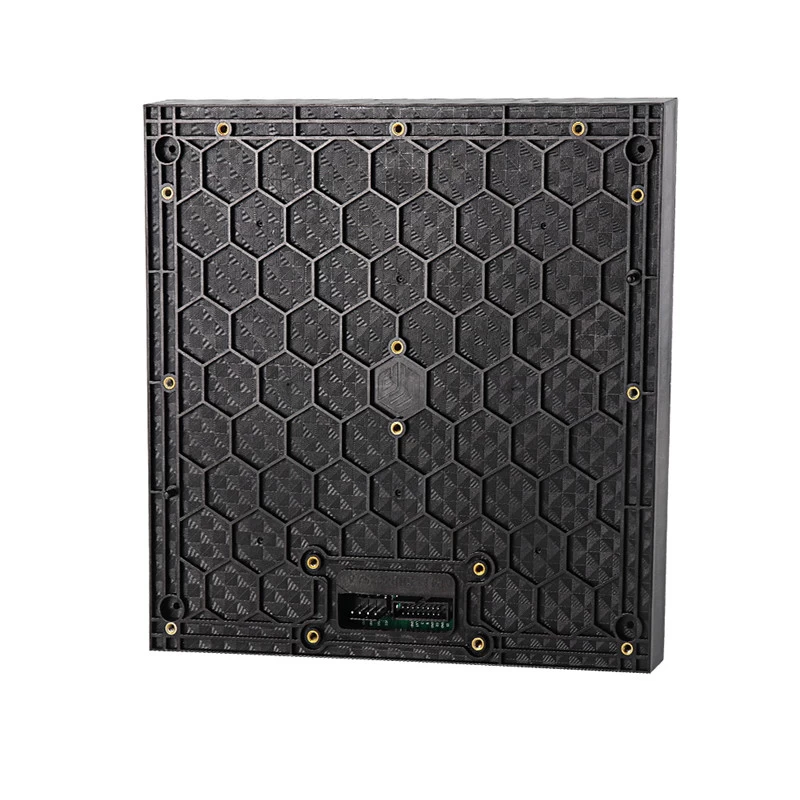

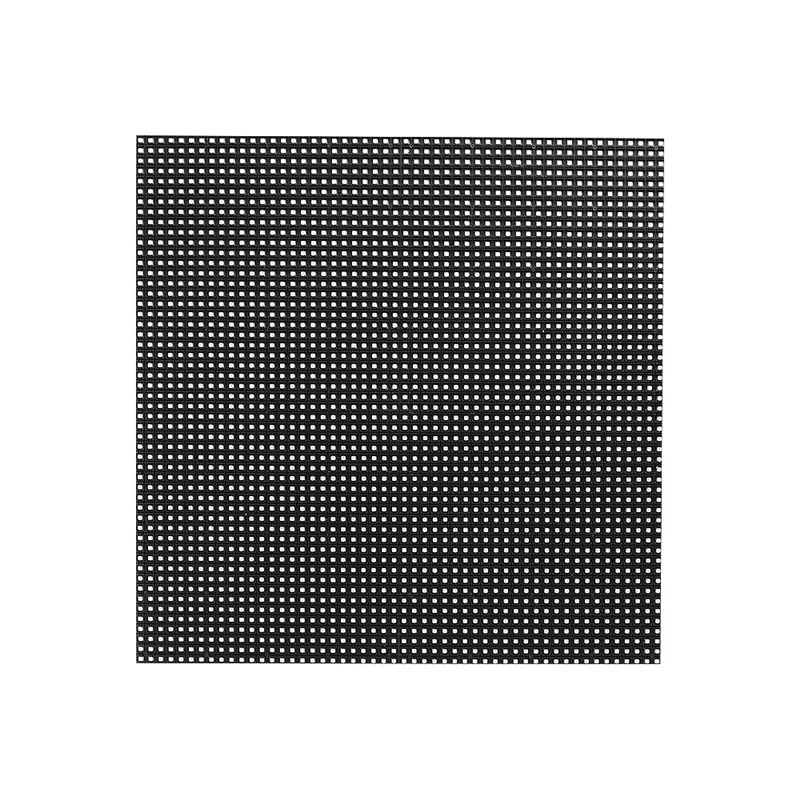

P4.81 LED Display Module Specification
|
Pixel
|
Pixel Pitch
|
4.81 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
43,264 Pixel/m²
|
|
LED Lamp
|
LED Type
|
SMD 2727
|
|
LED Lamp
|
Nation Star /King light
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;174-230mcd
Green:520-525nm;680-900mcd
Blue:470-475nm;130-160mcd
|
|
Module
|
Module Dimension
|
250 mm(Width)x250 mm(Height)
|
|
Module Resolution
|
52 Pixel * 52 Pixel
|
|
Scanning Method
|
1/13 S
|
|
Drive IC
|
5020 /5124 /5153 / 2037 /2038
/2038S/2053
|
|
Refresh Rate
|
>1920 HZ
|
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
>4000cd/m²
|
|
Best Viewing Distance
|
4-100 m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 65
|
|
LED Module Weight
|
0.8 kg/piece
|
