With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Questions you might have
*Why can it support all languages?
R: If you can type the language, the sign can read the data and display it.
* How to use the software to display the information I want?
R: Using guidance can be sent to you or we can teach you how to use it step by step.
*If I want wireless control, such as WIFI or 3G control, how can it be done?
R: it only needs adding a wireless module such as WIFI module.
Package including

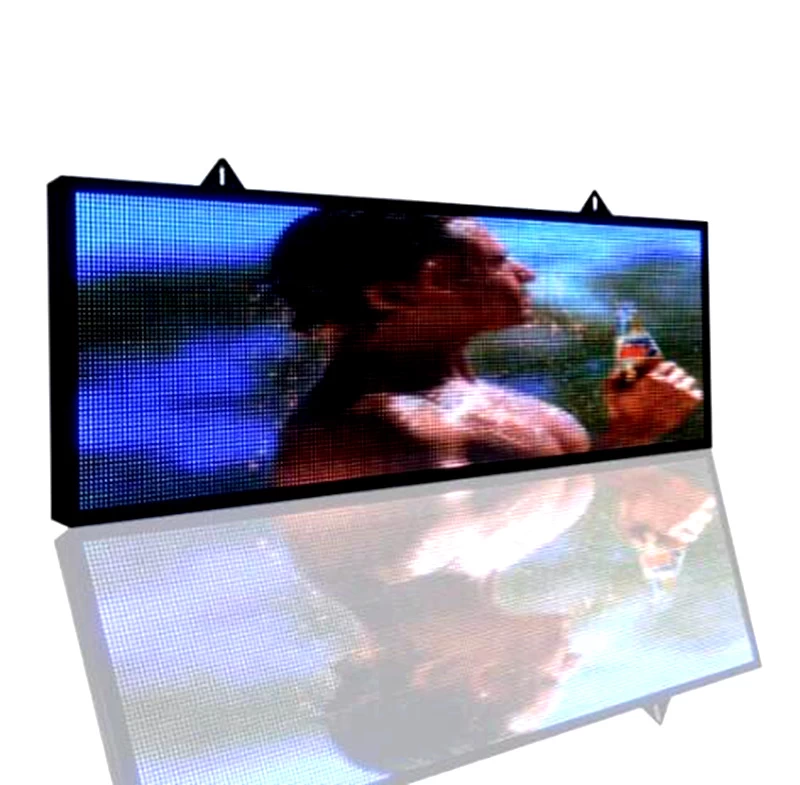

*LED sign 1 PCS (size 167x87cm / 66 x 34 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P5 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W64 X H32
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/16 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Indoor Aluminum Frame Waterproof (IP20)
|
|
Cabinet Size (mm)
|
W1670 x H870 MM (66x34 Inch)
|
|
Power Consumption Max (w/set)
|
60 Watt
|
|
Brightness(CD/㎡)
|
≥1500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
