P5 waterproof high definition video wall Aluminum die-casting led screen RGB full Color rental LED display for stage setting wall

P5 RGB outdoor led sign,SMD 1/8 scan,640X640 aluminium die casting cabinet, full color video led display screen, led video wall

Facebook Twitter Pinterest LinkedIn 分享

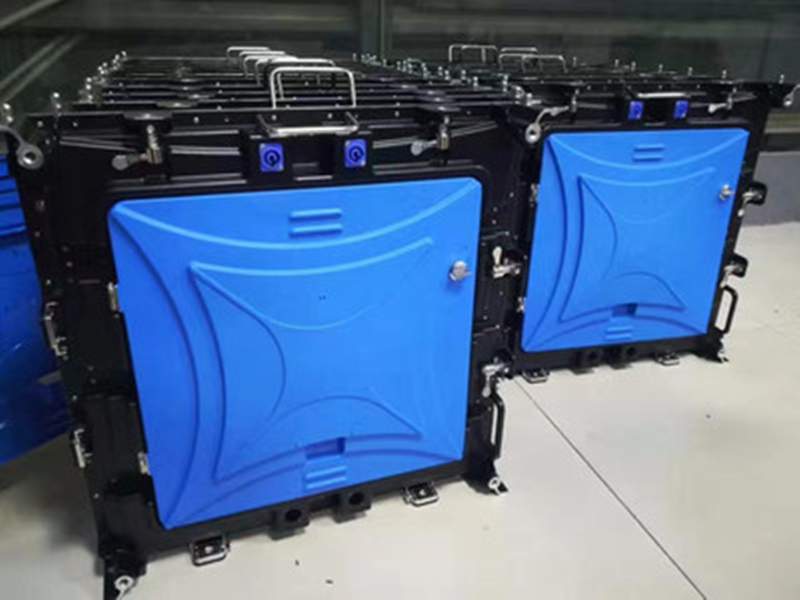

Aluminum die-cast housing lease rental housing than the general advantages:

1.light weight: per square box weighs only 24kg, single box weighs 8KG, single person can
be a single hand, saving installation time;

2.thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation,its thickness is only 80mm;

3.Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;

4.disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;

5.Easy maintenance: modular design, installation and removal easy assembly Screen anywhere,simple to maintain

6.tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility

7.High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz

8.Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installationcosts required; Low cabinet power consumption, saving operating costs.

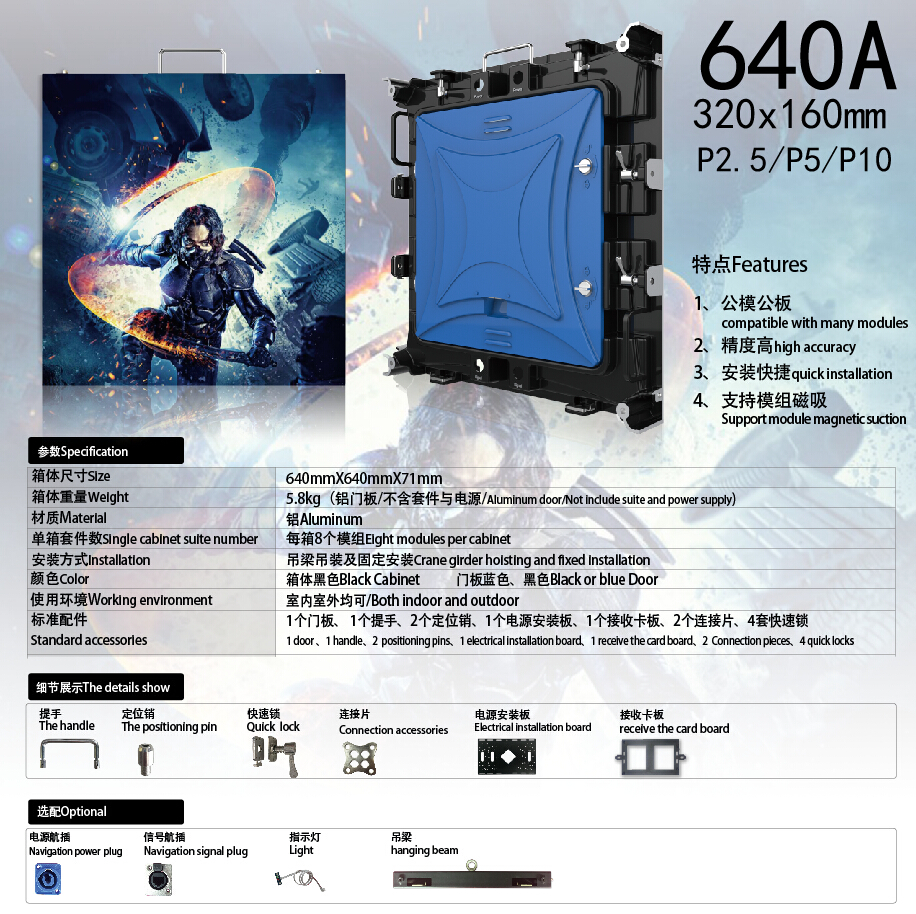

Technical Data of P5 Indoor LED Display full color:

                                      Model :     CX-PH5 RGB08A










LED Module model
  color 1R1G1B
LED Type SMD2121
Module Resolution W 64 x H 32
Module Size (mm) W 320 x H 160
Driving Method 1/8 scan
   LED  display parameter
voltage 220V or 110V  ± 10%
Material indoor Die-cast aluminum waterproof  ( IP 20 )
Cabinet Size （mm) W 640x H 640 MM (25X25 Inch)
Cabinet Resolution (pixel) W 128 x H 128
power Consumption Max (w/set） 200 Watt
Brightness ( CD/㎡） ≥1500
Net Weight (kg) 12 kg
Viewing Angle 120° / 70°
Theoretic LED Working Life More than 100000 hours
control method network port control (USB, wifi, optional)
display function Date,Text, picture, logo ,  video.



HD colorful led sign
