| Product |

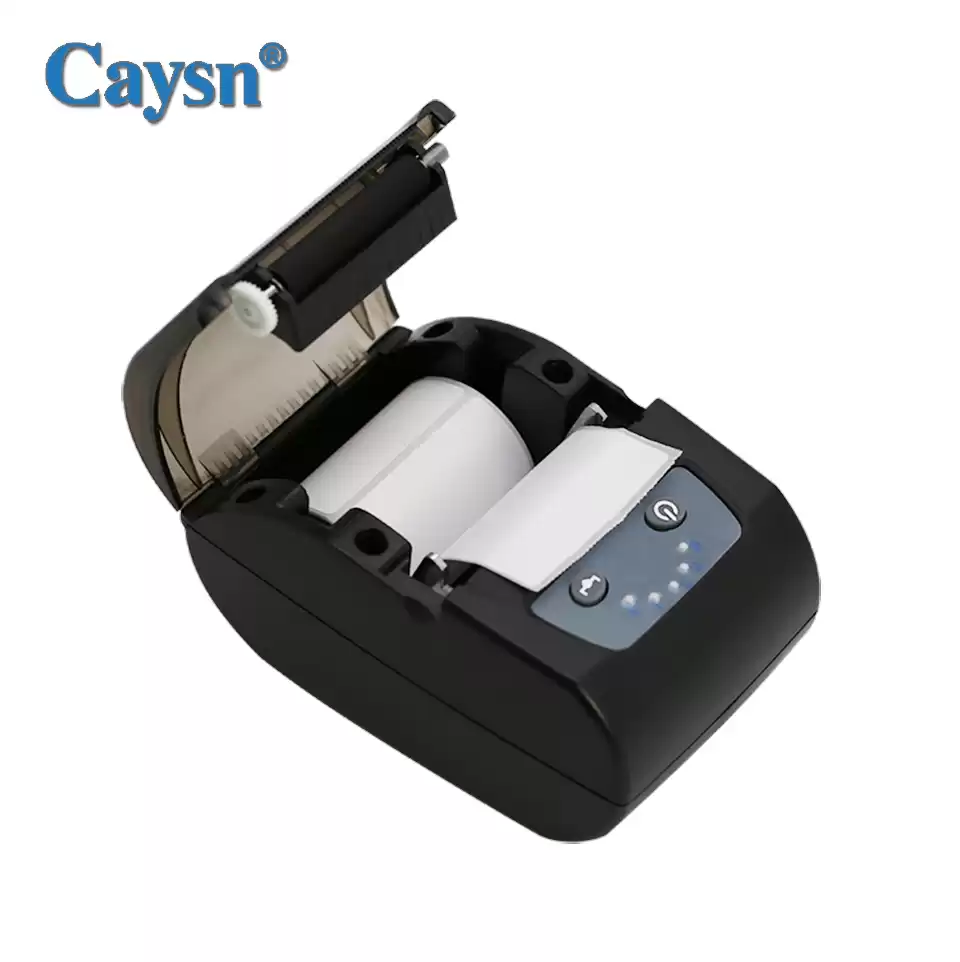

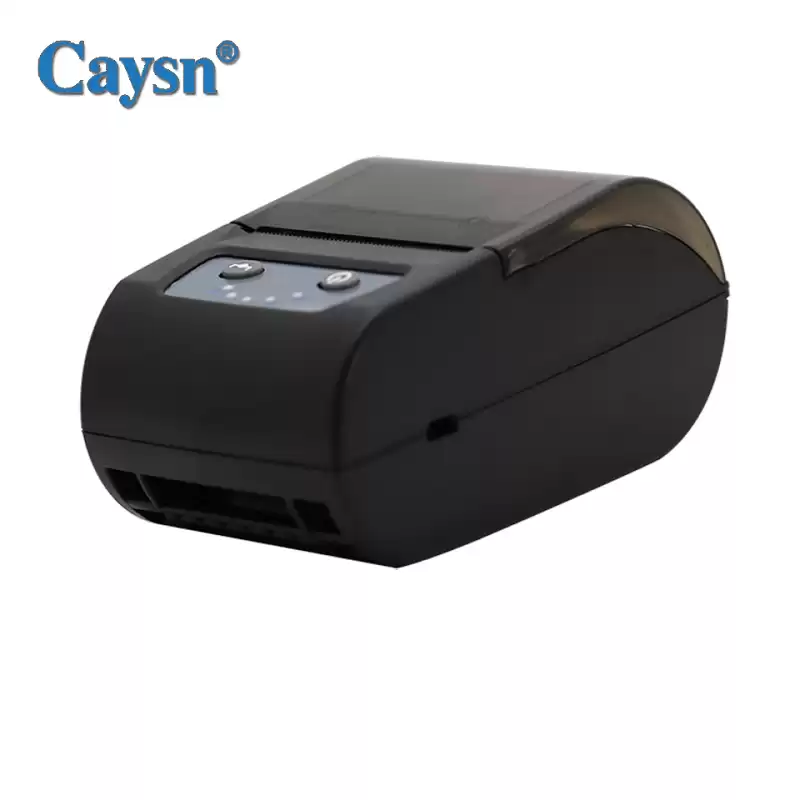

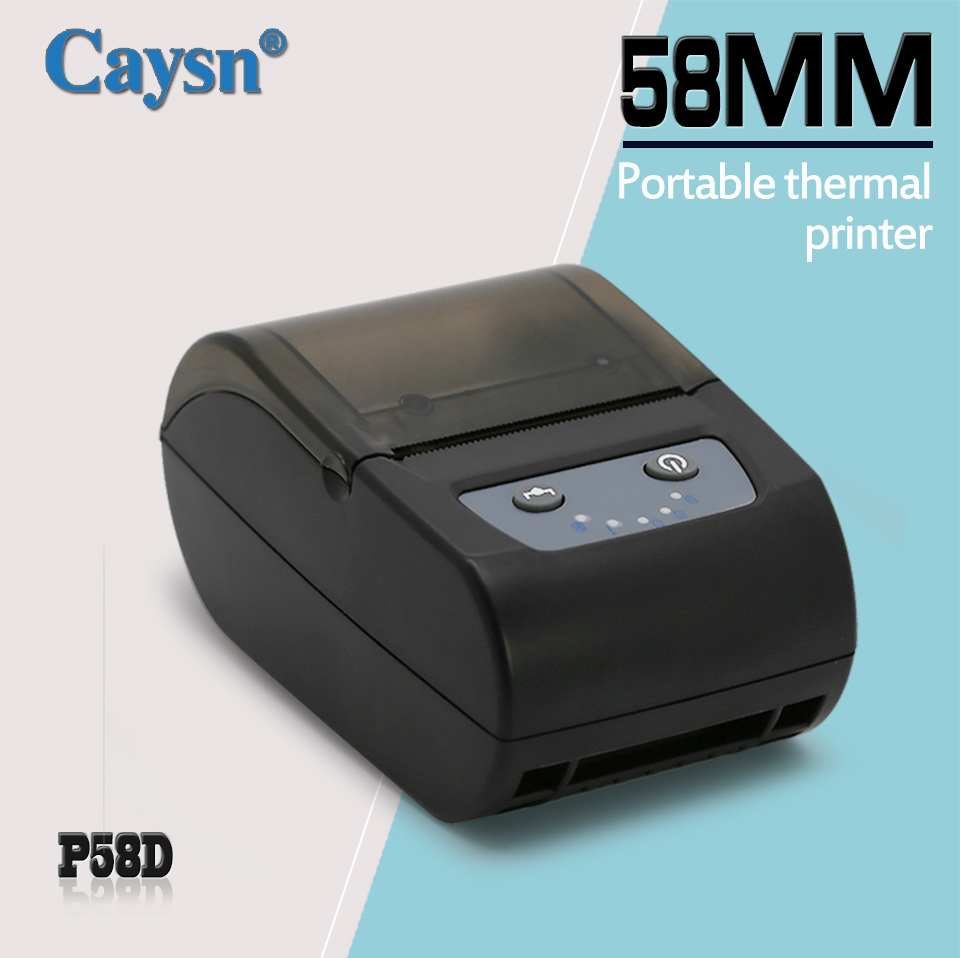

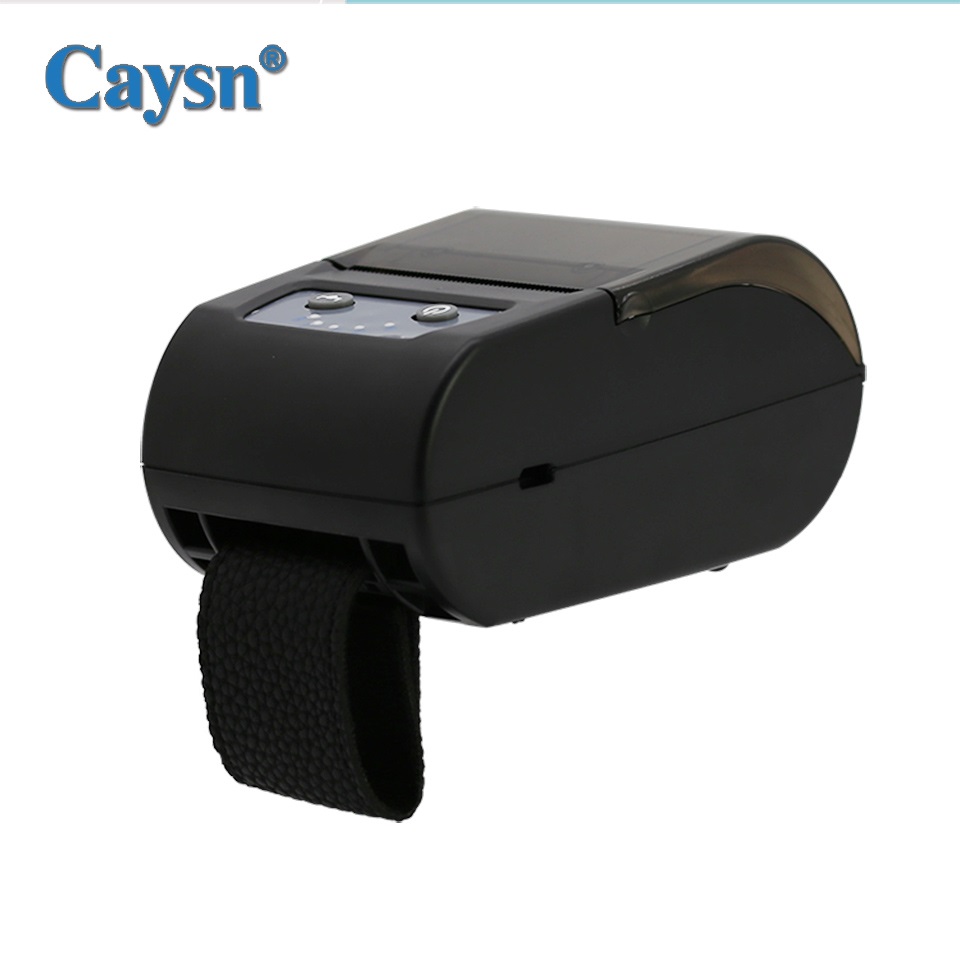

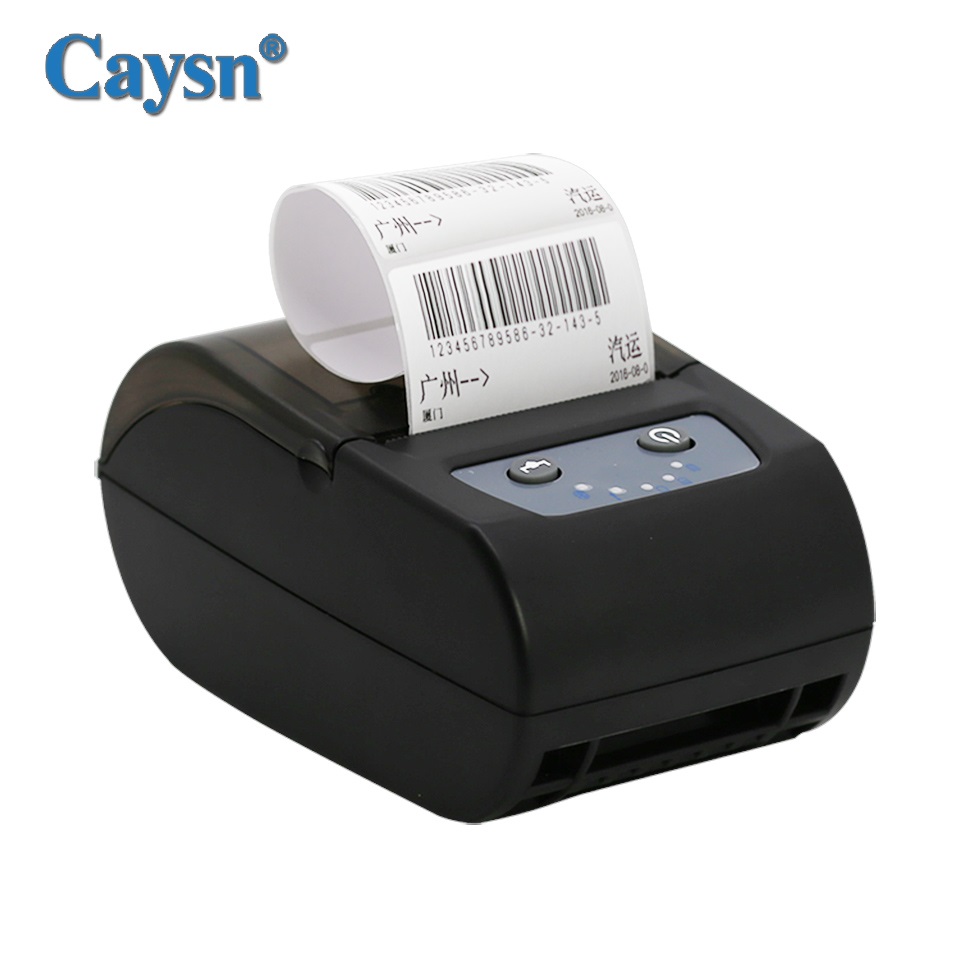

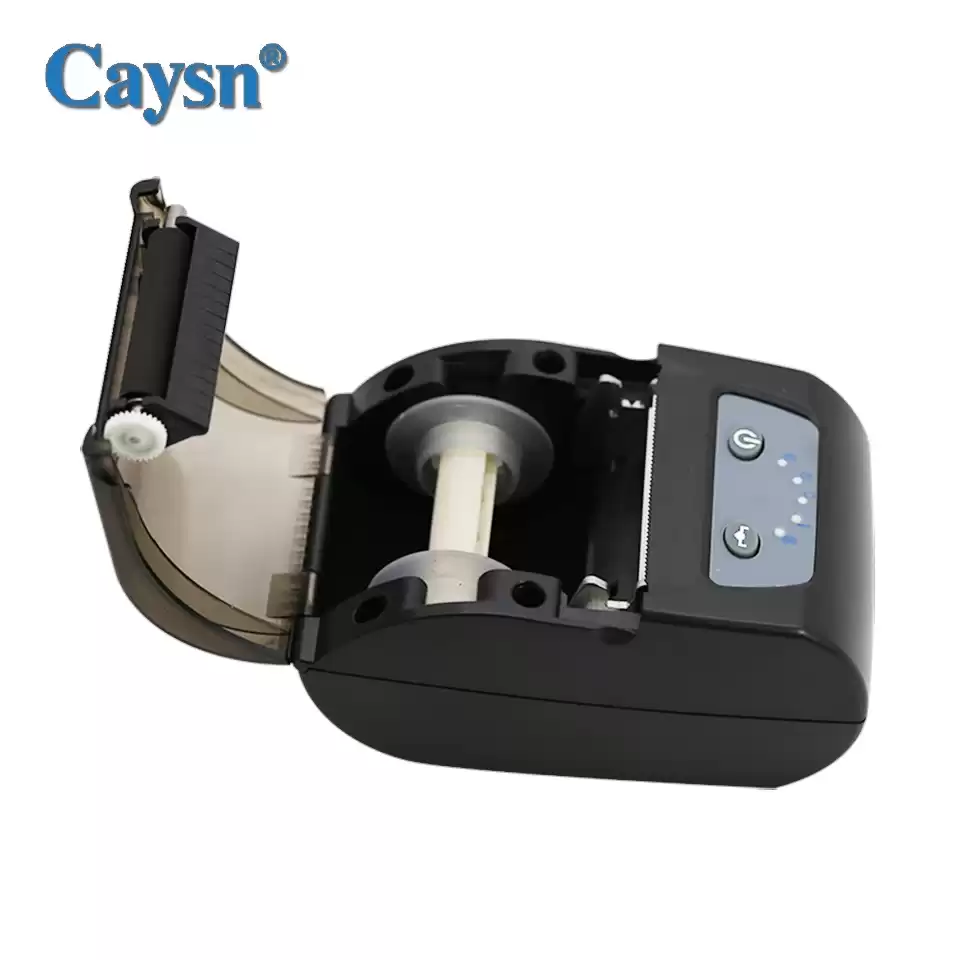

P58D (Receipt & Label) |
| Printing method |
Thermal printing |
| Resolution |
203DPI, 8 dots/mm |
| Printing width |
48mm(384dots) |
| Printing speed |
80mm/s |
| Interfaces |
Wired: Micro-USB port; Wireless: Bluetooth |
| Command set |
ESC/POS compatible commands |
| Print Font |
ASCII Font A: 12×24/ASCII Font B: 9×24/Chinese: 24×24 |
| Graphics printing |
Support dots printing with different densities, Support raster bitmap print, Support downloaded bit image print |
| Code pages |
Support simplified & traditional Chinese, English, Japanese and other 45 kinds of international character sets |
| UTF-8 |
Support |
| Bar codes |
UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE |
| Paper type |
Thermal receipt/label paper |
| Paper thickness |
0.056~0.1mm(Receipt paper) |
0.1~0.12mm(Label paper) |
| Paper width |
57.5±0.5mm |
| Paper roll diameter |
60mm(Max) |
| Paper tore |
Manual |
| Printer dimension |
132.5mm×88mm×67mm(L×W×H) |
| Weight |
350g (Printer & Battery) |
| TPH life |
50km |
| Battery |
Rechargeable Li-ion Battery, 7.4V, 2000mAh |
| Power Supply |
5VDC/1A |
