P6.667 outdoor SMD3535 RGB full Color led Display board
Solution Features
Led display board : Outdoor Advertising use, applicable to stadium, commercial purpose, bank, stock market, savings,quay, shopping mall, bus station, telecommunication, police, monitor, school,restaurant,hotel, pub, firm, ect.
Technical Features
1.Universal module size: 320*160mm; Screw holes of the modules are at the same size and position
2.Universal module compatible to same cabinets, shorten production lead time. Customers can take the same cabinets when changing different pitch products with the same steel structure.
3.Product is high brightness, high refresh, high IP rating, applicable to outdoor media and advertisement occassions.
Specification:
|
Pixel Configuration
|
SMD3535
|
|
Pixel Pitch（mm）
|
6.67
|
|
Pixel Density（dot/m2）
|
27777
|
|
Module Pixel Matrix （W×H）
|
48×24
|
|
Module Size（mm）
|
320（W）×160（H）
|
|
Module Weight（kg）
|
0.6
|
|
Module Power Consumption Max.（W）
|
30
|
|
Module/Panel（W×H）
|
3x6
|
|
Panel Resolution（W×H）
|
144×144
|
|

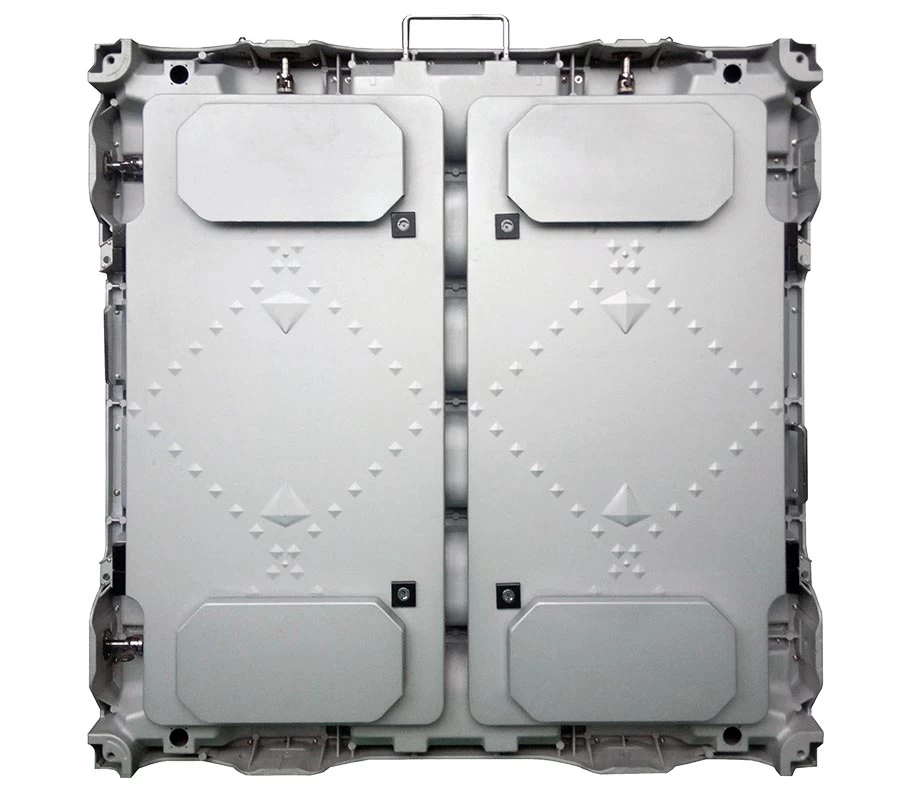

Panel Size（mm）
|
960（W）×960（H）×160（D）
|
|
Panel Weight（kg）
|
35
|
|
Maitainence Mode
|
Rear Maitainence
|
|
Panel type
|
Steel cabinet
|
|
Brightness（nits）
|
≥7000
|
|
Color Temperature（K）
|
3200—9300
|
|
Viewing Angle（Hor/Vert°）
|
140/120
|
|
Power Consumption Max（W/m2）
|
1000
|
|
Power Consumption Avg（W/m2）
|
200-300
|
|
Operating Power Source
|
AC90~264V,Frequency 47-63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Drice Mode
|
Constant Driving，1/8S
|
|
Gray Scale
|
65536
|
|
Refresh Rate（Hz）
|
≥1920 to 3840
|
|
Gray Scale per Color Level
|
16bit
|
|
Working Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
|
Storage Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
