High resolution technology for LED video wall display.
Excellent brightness, color and contrast. High reliability.
Low maintenance requirements.
Standard cabinet unit makes installation and integration easy.
Perfect fit for digital signage and advertising billboard with small & middle range viewing distances.
QUESTION AND ANSWER:

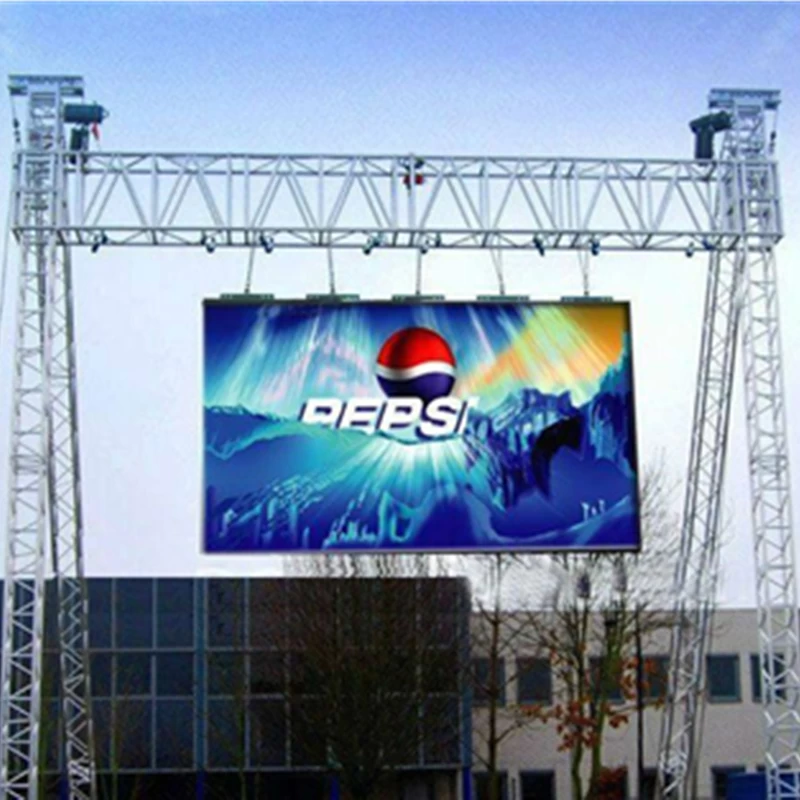

Q1: What's the pixel pitch for Outdoor Stage LED Display Screen?
A1: Outdoor (6.67mm / 8mm/ 10mm)
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Specifications:
|
Module Resolution
|
32*32dots
|
|
Module dot Quantity
|
1024 dots
|
|
Module Size(LxH)
|
192*192mm
|
|
Standard Cabinet Size(LxHxT)
|
960*960*120mm
|
|
Simple Cabinet Size
|
960*960*80mm
|
|
Cabinet Resolution
|
128*128dots
|
|
Pixel Density
|
27777dots /m2
|
|
Cabinet Material
|
Steel/Aluminum
|
|
Brightness
|
7000~8500cd/m2
|
|
Viewing Angle
|
H 140°, V 140°
|
|
Minimum Viewing Distance
|
≥10M
|
|
Gray Level
|
16bit
|
|
Color Quantity
|
281 Trillion
|
|
Refresh Rate
|
≥1920Hz
|
|
Frame Rate
|
60fps
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Power Consumption(Max/Avg)
|
650/260 W/m2
|
|
Screen Body
|
Standard Aluminum 45 kg/m2
Standard Iron 65 kg/m2
Simple Iron 45 kg/m2
|
|
MTBF
|
>10,000 H
|
|
Life Span
|
≥100,000 H
|
|
IP Grade
|
IP65
|
|
Temperature
|
-20℃~60℃
|
|
Humidity
|
10%~90%
|
|
Control System
|
Normal System
|
|
Interface Definition
|
HUB75
|
|
Training
|
Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc.
|
|
Warranty
|
1, 2years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem.
2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software.
3, For the hardware equipment, we only collect expenses on components.
|
|
Guarantee
|
1, All the life time for Technology support , system update ,maintenance .
2, We guarantee that the equipment we provide are brand new, complete and unused before delivery .
|
|
Remark
|
1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module,
but do not take charge for the installation in overseas; Technical support is available.
2. The above offer included the cabinet, power supply, power cord,and other basic components; etc.
3. The above offer do NOT included the delivery, insurance, installation and debugging cost;
4. Packing with Ply-wood box, or Carton ; If need flight case packing, up cost will be USD180/PC, 2-4cabinets/case
5.Problems during use.
some spare parts for you, once the screen get problems, please follow up below steps to solve it:
Step1: Take some pictures about the working status of the screen;
Step2: Replace the broken cabinet by the new cabinet;
Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems.
Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you.
|
