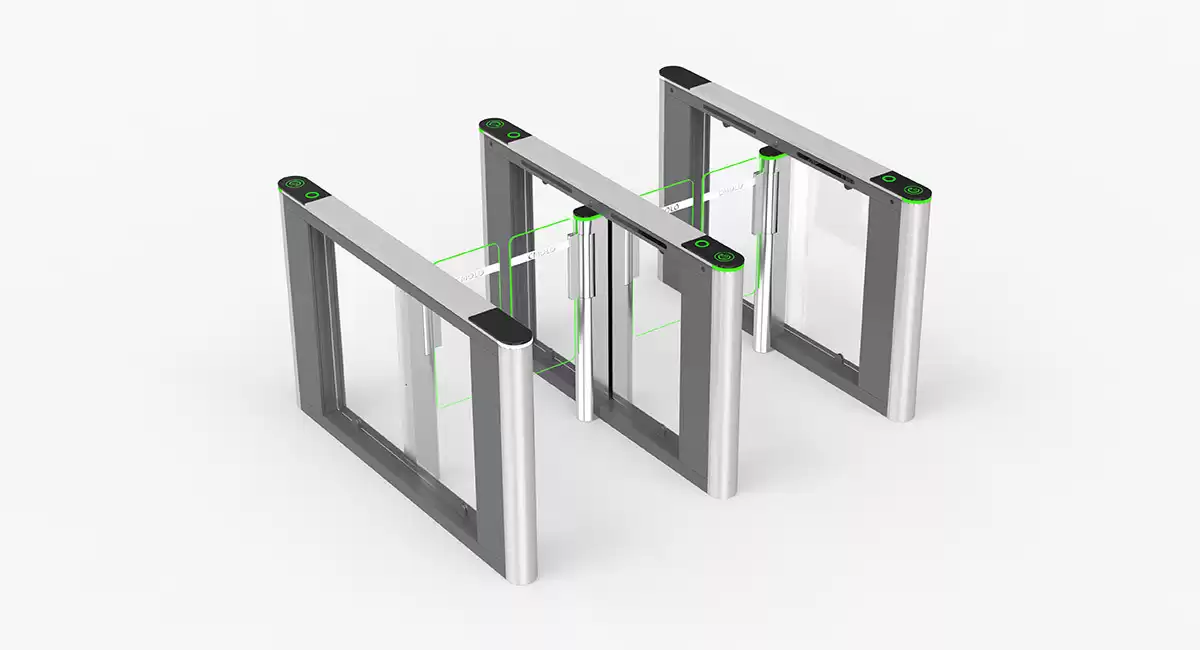

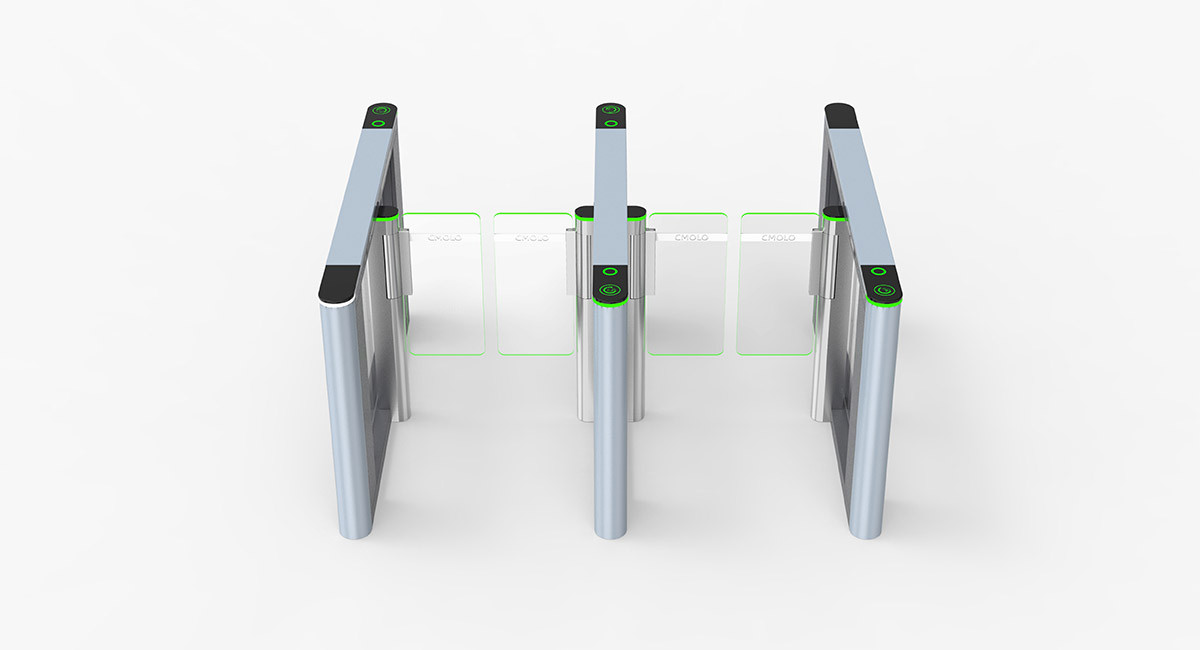

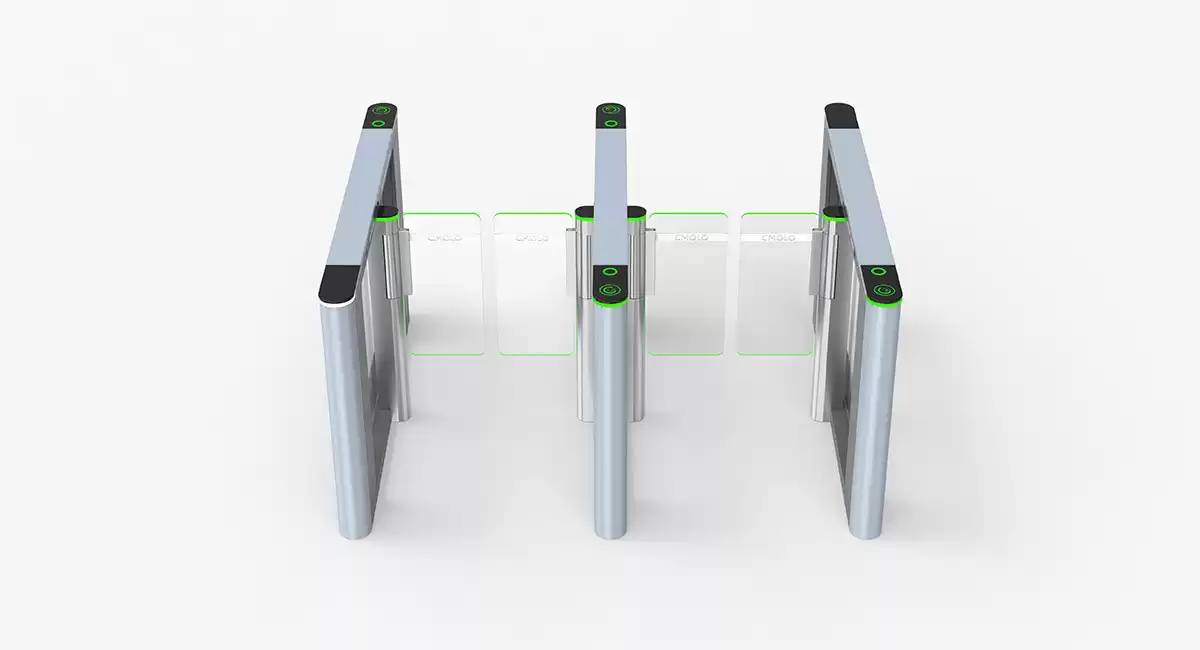

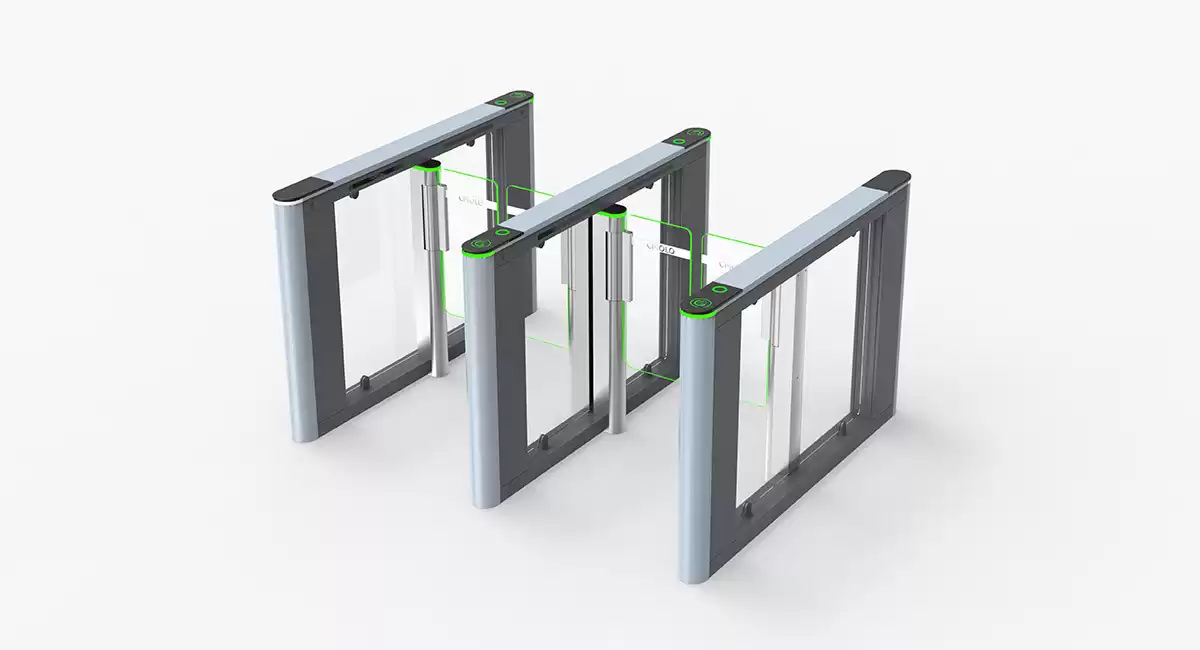

Painted Pedestrian Controlled Speed Gate Turnstile

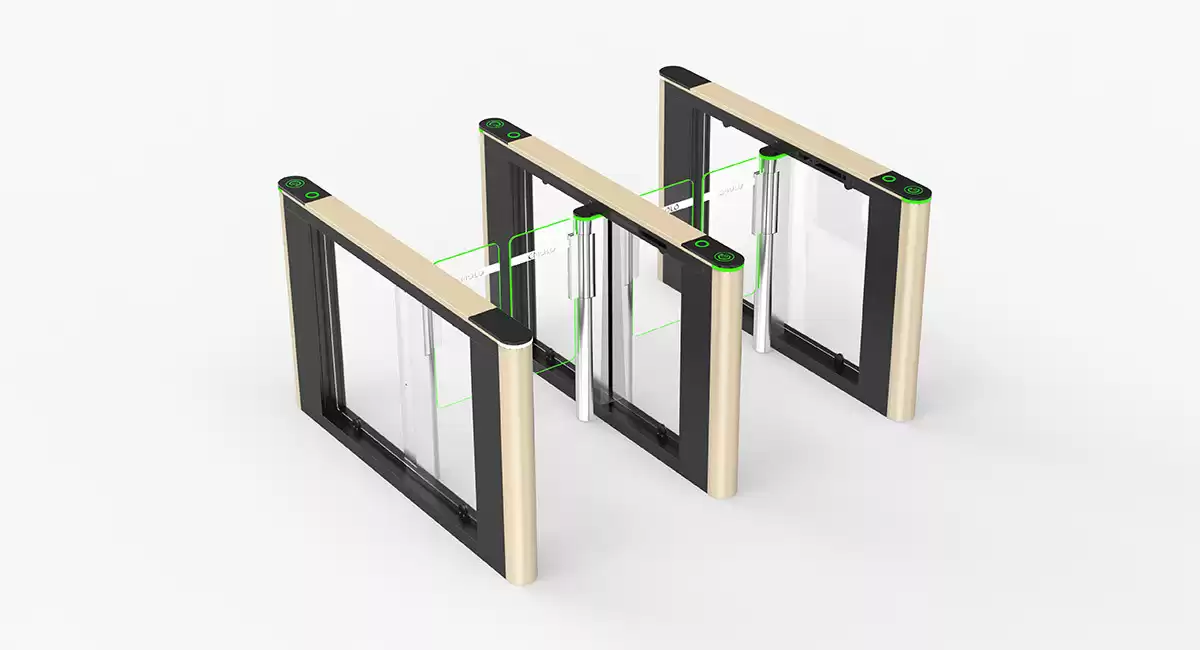

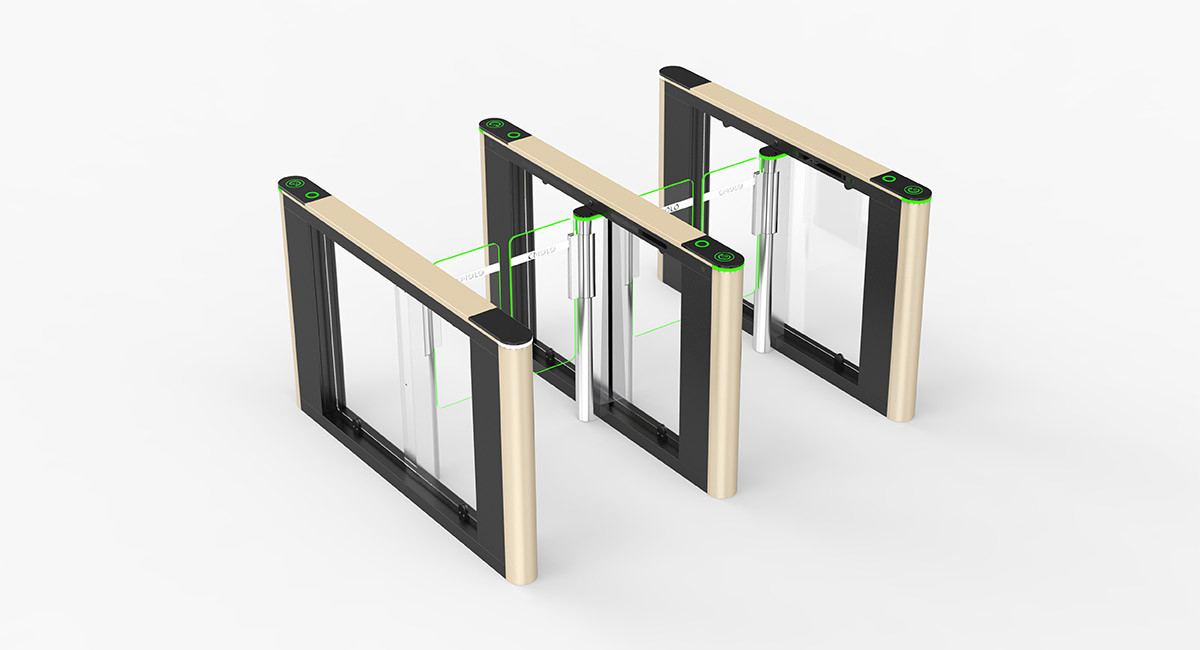

The surface of the cabinet of the painted pedestrian speed gate turnstile CPW-168HS adopts electrolytic sheet painted technology, showing smooth, exquisite and superior-quality surface. The painted technology adopts low-saturation double color match, which makes the whole machine simple but not monotonous.



The painted pedestrian speed gate turnstile CPW-168HS has a lossless modular mechanism structure, and has an advanced servo control system and DSP+ARM motor control technology independently developed by CMOLO. The turnstile adopts DC brushless motor and exact positioning encoder, so as to make the speed gate turnstile with advantages of high stability, high safety, long life service, accurate detection, fast, stable and silent running, etc.

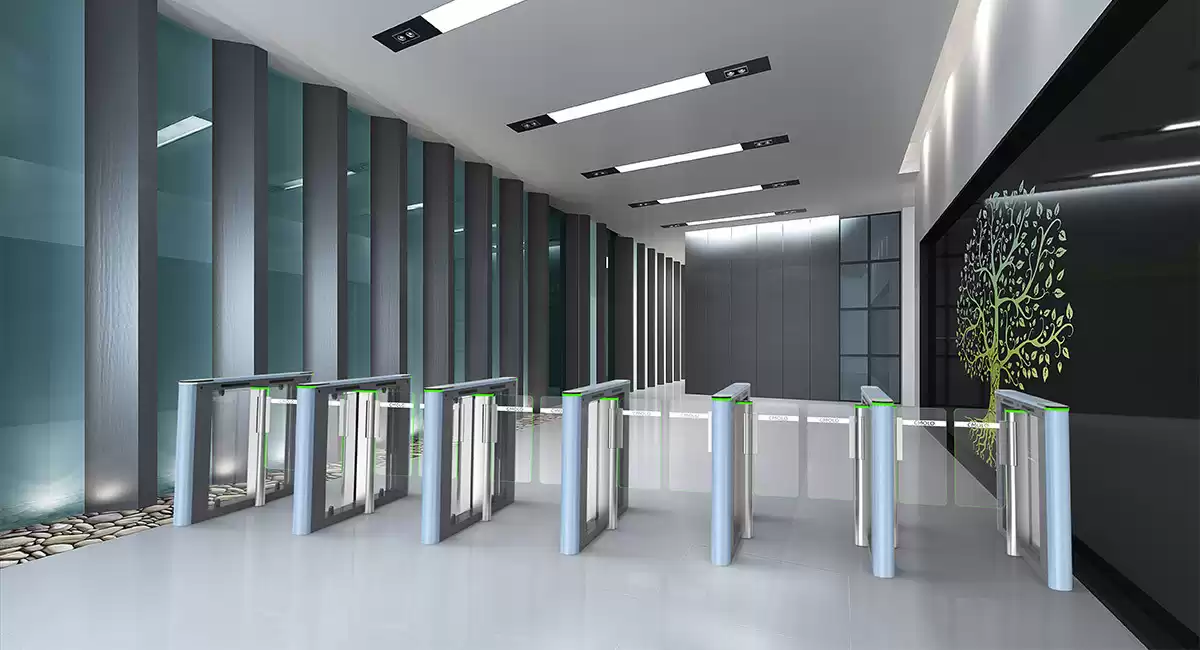

The turnstile is suitable for high-end indoor occasions such as office buildings, airports, government agencies, schools, hospitals, and leisure venues etc.









advanced core patented technology





high safety, triple anti-pinch





high stability, optimize the mechanism structure





long life, longer than 10 million times

















accurate & fast detection





high visitor flow rate usage





modular design, easy maintenance





high compatibility, high integration





Advanced & Intelligent Turnstile Core Technology



Long service life

The mechanism and control system of the painted pedestrian speed gate turnstile have been passed 10 million times life test.



Advanced core logic algorithm

The turnstile adopts CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, to sensitively detect illegal behaviors such as reversely passing and tailgating, and issues warnings in the form of sound and light, and can be linked with other security systems.



The painted pedestrian speed gate turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, which can achieve precise control and positioning of the obstacle and maintain stable performance.



Strong mechanism structure

CMOLO's self-developed lossless modular mechanism structure and full CNC processing technology are to ensure that the precision, strength and concentricity of the mechanism. The transmission ratio is accurate, efficient and stable, and the rotation angle of the gate can be precisely controlled and the loss is reduced, so as to ensure the stability and long service life of the mechanism structure.



All-around Pedestrian Safety Protection



Over-force feedback control

When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.



Anti-electric shock

All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.



Emergency open

The painted pedestrian speed gate turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.





Triple anti-clamping

With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, the painted pedestrian speed gate turnstile can protect pedestrian safety more comprehensively.







Turnstile opens when power failure

With the independently developed advanced mechanical structure, the system will automatically unlock the gate when the power is off, and the gate can be manually pushed to open, which is convenient for pedestrian evacuation.





Customization



System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device

Lane width The maximum lane width of turnstile is 900mm, and the cabinet length can be increased accordingly
 Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
