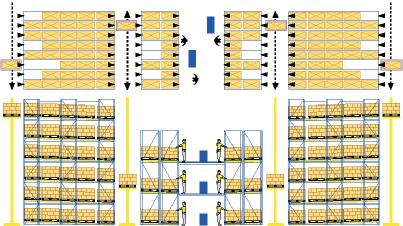

LIVE STORAGE WITH MULTI LEVEL OPERATION
Storage and distribution can be done in multi level floor and channels

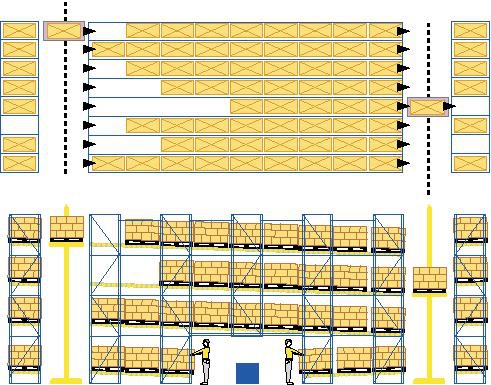

Combination of personnel picking and automatically pallet replenishment always the most efficient solution

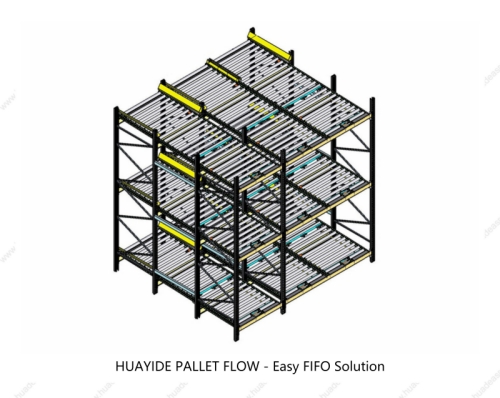

FIFO Flow Storage Components

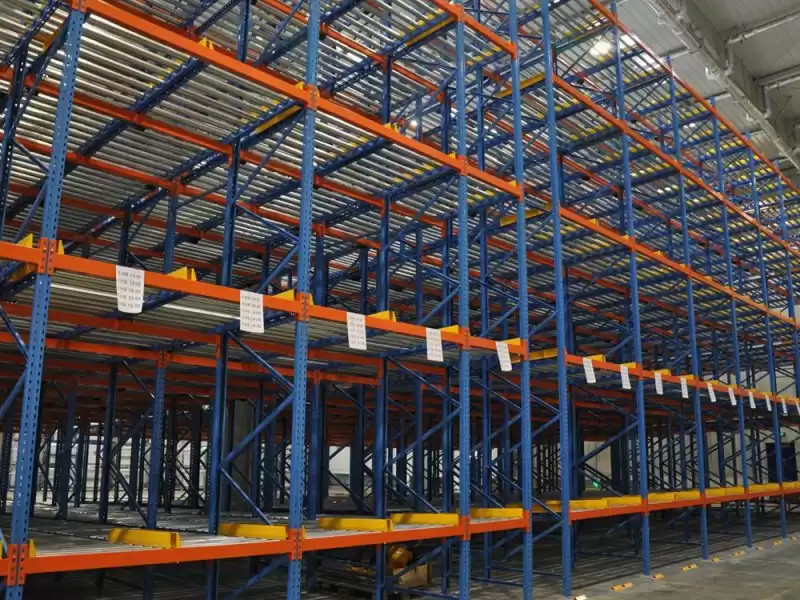

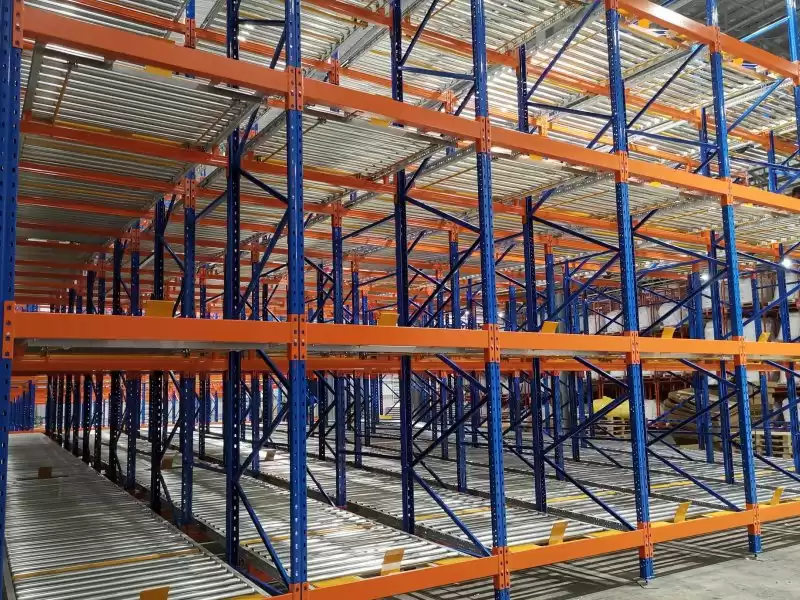

The live storage warehouse consists of gravity roller conveyors installed in a advantage mechanical rack as live storage levels. Our Pallet Flow system offers a dynamic system solution with integrated conveyor modules to suit different pallet types and sizes.

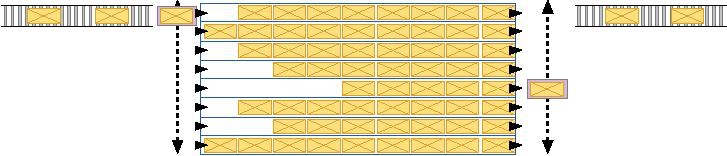

Pallets travel smoothly on full-width or twin-track roller runway. While the front pallet is removed on the front side of the rack, the rear pallet is held. Thanks to automatic braking roller and pallet retainer, along with a combined load guide and end stop unit, pallet movement is always safe and smooth With this system you can use up to 60% less space than if you were to use conventional pallet racking.
Automated Warehouse with Live Racking
Live rack can be integrated to fully-automated warehouse operation.
WMS issues orders to WCS, the related equipment will carry out these orders without human intervention.
Goods can be taken out by using stacker crane or reach truck, which receive their orders via radio frequency.

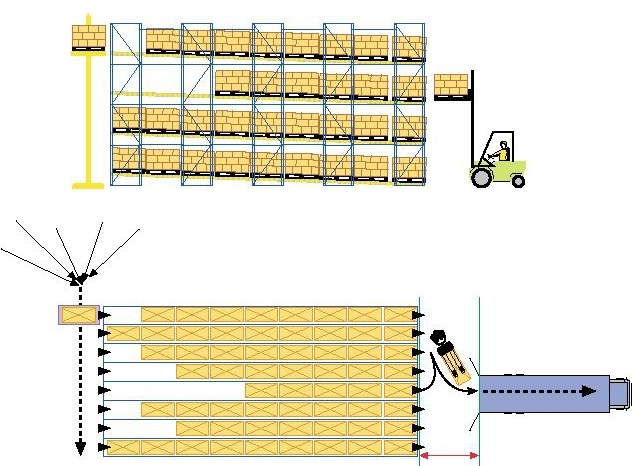

In many cases we provided, a single stacker crane is installed on one side of racking, to place pallet into storage. On the other side, retrieval of the pallets is performed by counter balance forklift, in turn load the vehicle from dispatch.
Advantages
- Perfect Product Rotation: Easy FIFO Solution, excellent stock control
- Maximize Storage Capacity: Compact structure double the storage in the same footprint
- High Throughput : Time saved when front pallets are removed. All products are easily located, thus reducing forklift manoeuvring time as traveling with consolidated picking and replenishment Increase
- Decrease Equipment Costs: Few forklifts needed
- Reduce Labor Expense: Less forklift travel and pallet handling
- Fast Return of investment: The savings in space, the decrease in forklift and labor and the fact that in this system no maintenance means that, in most cases, the investment is recovered in 2-3years
- Fast Installation
Applications
- Food & Beverage Distribution: companies distributing date-sensitive products that are palletized will benefit from this type of on-line racking
- Cooler & Freezer Storage: Since coolers and freezers are expensive real estate, getting the most out of these areas for storage and efficiency is high priority
- Buffer Storage for shipping, production and incoming products
- Picking Module
China Live Pallet Rack Storage System- In house testing, we supply we guarantee
We provide in-house testing facility to ensure the proper system design to fit your pallet, product, and workflow. Rail types, rail pitch, roller quantity and brake roller spacing are customized, then go through very thorough and system testing to ensure the positive rates of flow for the long haul. A videotape of these tests is provided for your approval and 100% satisfaction before each shipment.
