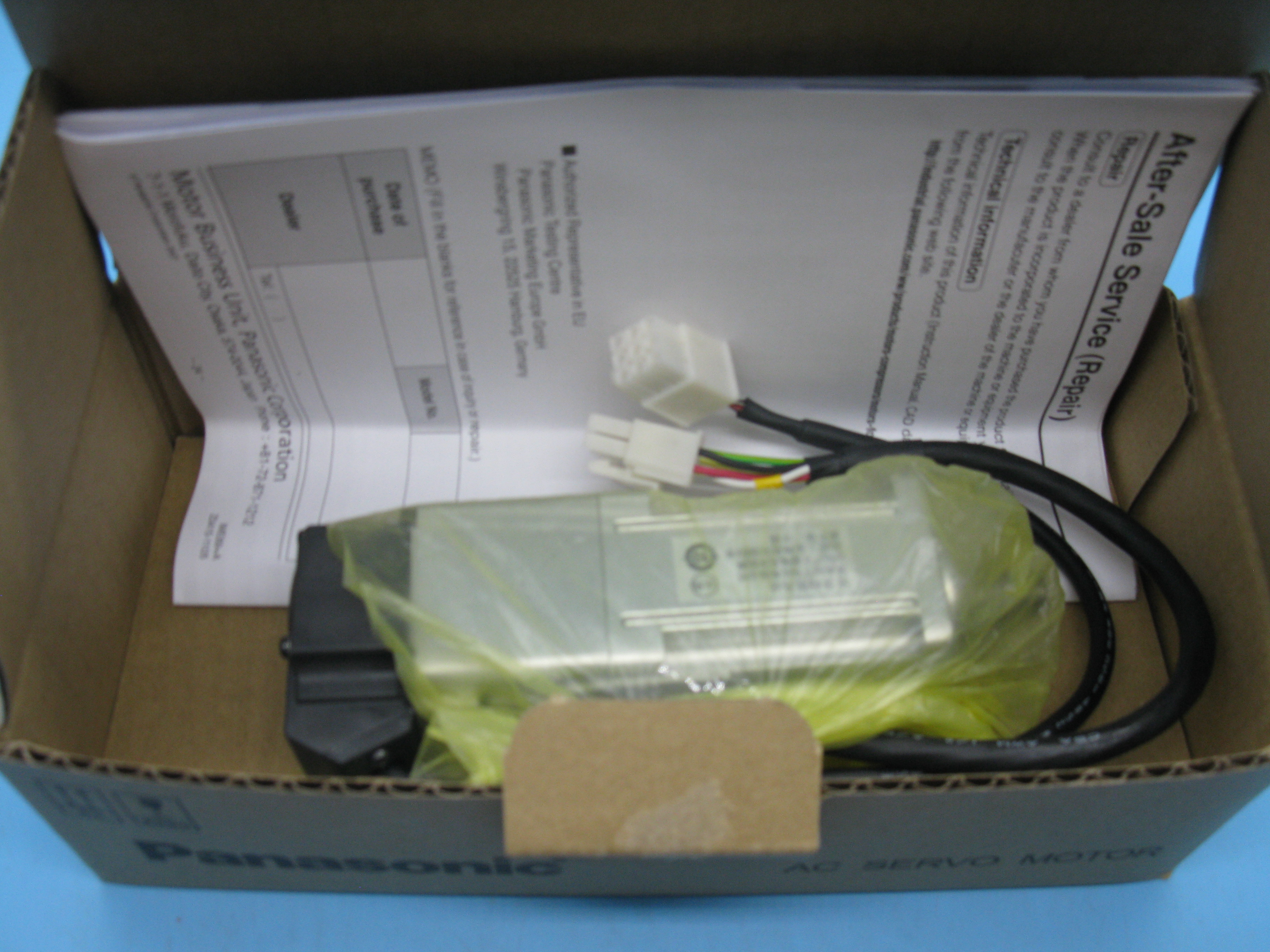

Panasonic AC Servo Motor 100Watt MSMF012L1V2M Motor with Brake

220VAC 3000-6000RPM 1000W 50/60HZ



Our commitment

YUGUAN gives you a 2 year warranty on Panasonic series we sell.

1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.

2.Shipping cost &repair cost  by us within 1 year warranty.

3.Shipping cost by buyer, repair cost by us within 2 year warranty.


Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.

Each item has been checked and in good condition before shipping.


Description

Model Number: MHMF042L1U2M

  • MATSUSHITA ELECTRIC
  • PANASONIC
  • MHMF042L1U2M
  • SERVO MOTOR
  • REBUILT SURPLUS
  • NEVER USED SURPLUS
  • 2 YEAR RADWELL WARRANTY


Item Specifications

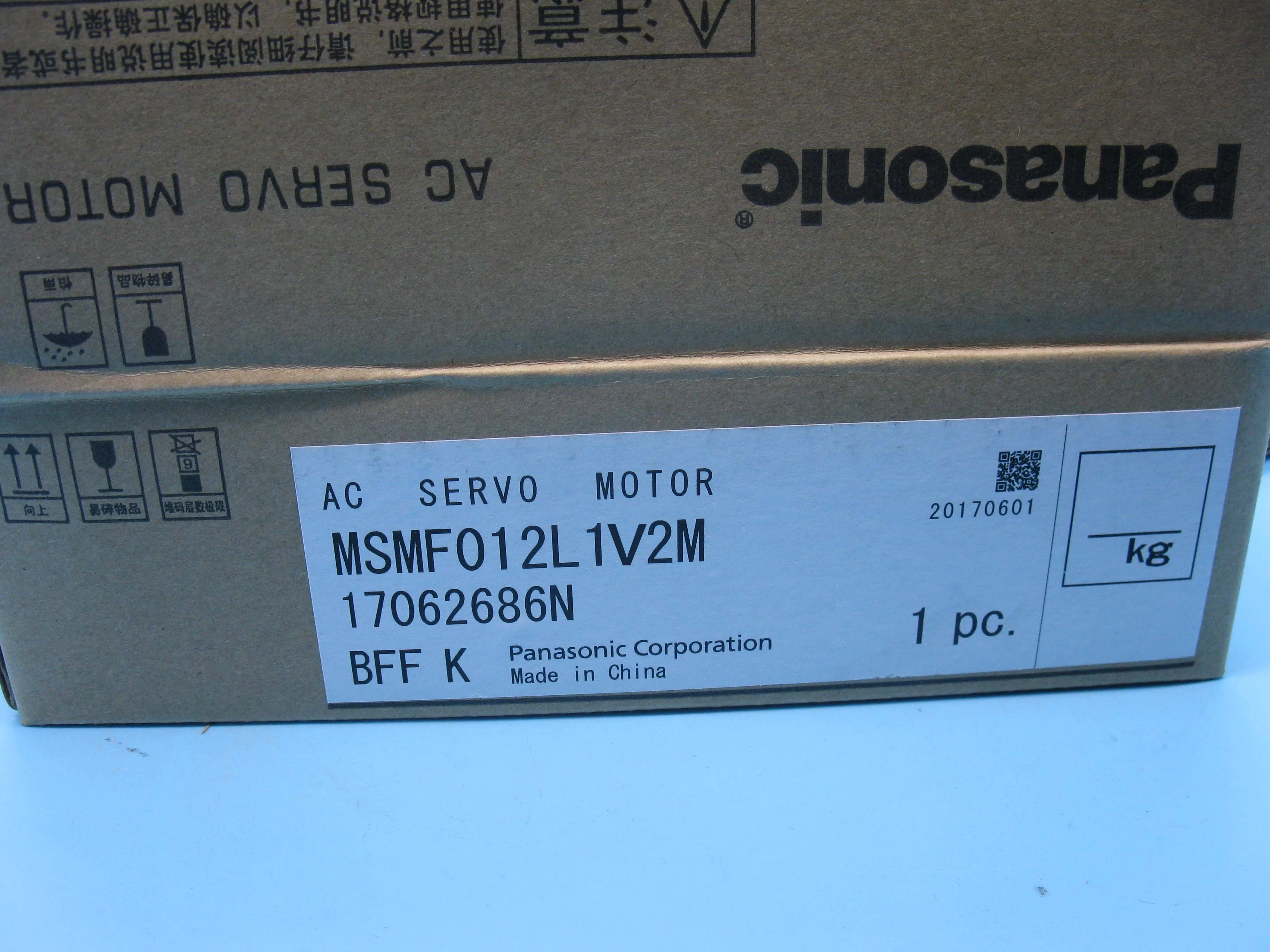

Part Number MSMF012L1V2M
Details Low inertia, Lead wire type
Family Name MINAS A6
Series MSMF Series
Type Low inertia
Special Order Product Special Order Product
Cautions for Special ordering product Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
For more details Please refer to the instruction manual.
Flange sq. dimension 38 mm sq.
Flange sq. dimension (Unit:mm) 38

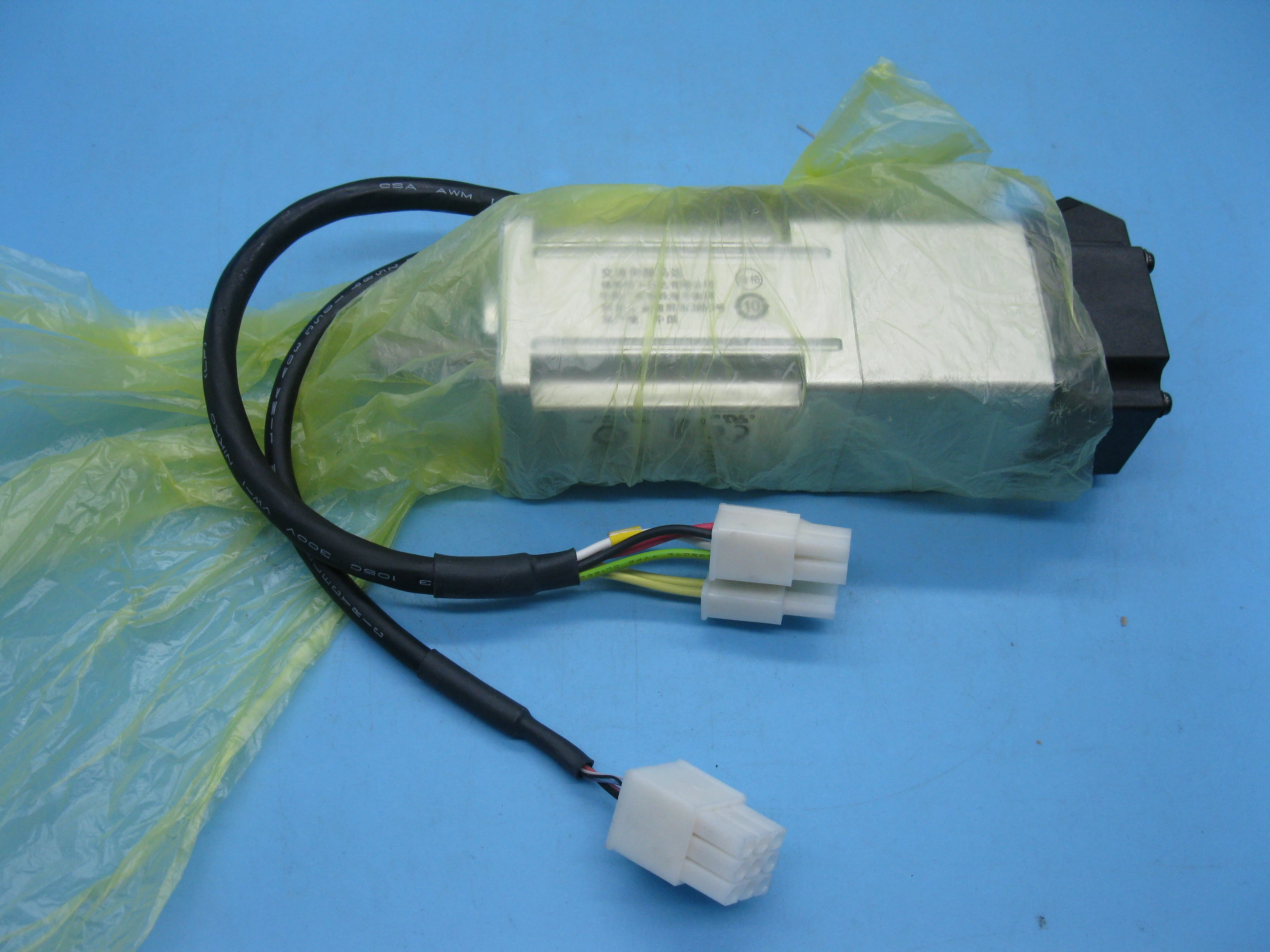

Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 0.5
Voltage specifications 200 V
Rated output 100 W
Rated current (A (rms)) 1.1
Holding brake with
Mass (kg) 0.68
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 0.32
Continuous stall torque (N ⋅ m) 0.32
Momentary Max. peak torque (N ⋅ m) 0.95
Max. current (A (o-p)) 4.7
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4281
About regenerative brake frequency Please refer to the details
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 6000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.051
Recommended moment of inertia ratio of the load and the rotor 30 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the
Rotary encoder: specifications 23-bit Absolute/Incremental system
Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution 8388608
