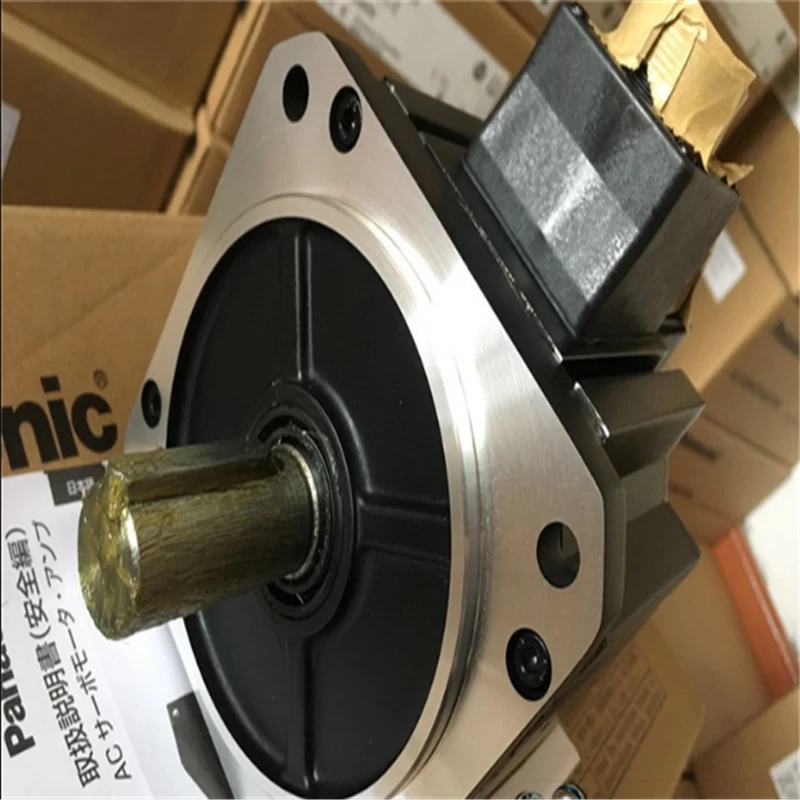

Panasonic MDMF102L1G6M AC Servo Motor

24 Months Warranty

130 mm sq.Flange sq. dimension



Our commitment

YUGUAN gives you a 2 year warranty on Panasonic series we sell.

1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.

2.Shipping cost &repair cost  by us within 1 year warranty.

3.Shipping cost by buyer, repair cost by us within 2 year warranty.


Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.

Each item has been checked and in good condition before shipping.


Description

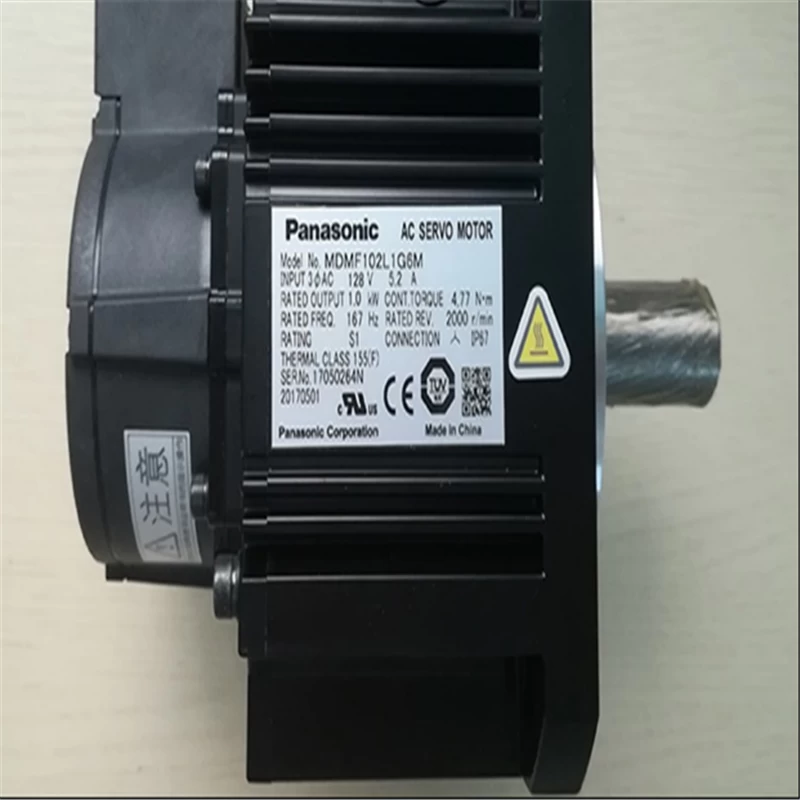

Model Number: MDMF102L1G6M

  • MATSUSHITA ELECTRIC
  • PANASONIC
  • MDMF102L1G6M
  • SERVO MOTOR
  • REBUILT SURPLUS
  • NEVER USED SURPLUS
  • 2 YEAR RADWELL WARRANTY

Item Specifications
Part Number MDMF102L1G6M
Details Middle inertia, Connector type
Family Name MINAS A6
Series MDMF Series
Type Middle inertia
Special Order Product Special Order Product
Cautions for Special ordering product Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Enclosure IP67
About Enclosure Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
For more details Please contact us
Flange sq. dimension 130 mm sq.
Flange sq. dimension (Unit:mm) 130
Motor lead-out configuration Connector
Motor encoder connector Motor connector: JL10,
Encoder connector: Large size JL10
About Motor encoder connector Connector JL10 (Large size): Also applicable to screwed type
Power supply capacity (kVA) 2.4
Voltage specifications 200 V
Rated output 1000 W
Rated current (A (rms)) 5.2
Holding brake without
Mass (kg) 4.6
Oil seal with
Shaft Key-way
Rated torque (N ⋅ m) 4.77
Continuous stall torque (N ⋅ m) 5.25
Momentary Max. peak torque (N ⋅ m) 14.3
Max. current (A (o-p)) 22
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4284
About regenerative brake frequency Please refer to the details
Rated rotational speed (r/min) 2000
Rated rotational Max. speed (r/min) 3000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 6.18
Recommended moment of inertia ratio of the load and the rotor 10 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details
Rotary encoder: specifications 23-bit Absolute/Incremental system
Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution 8388608
