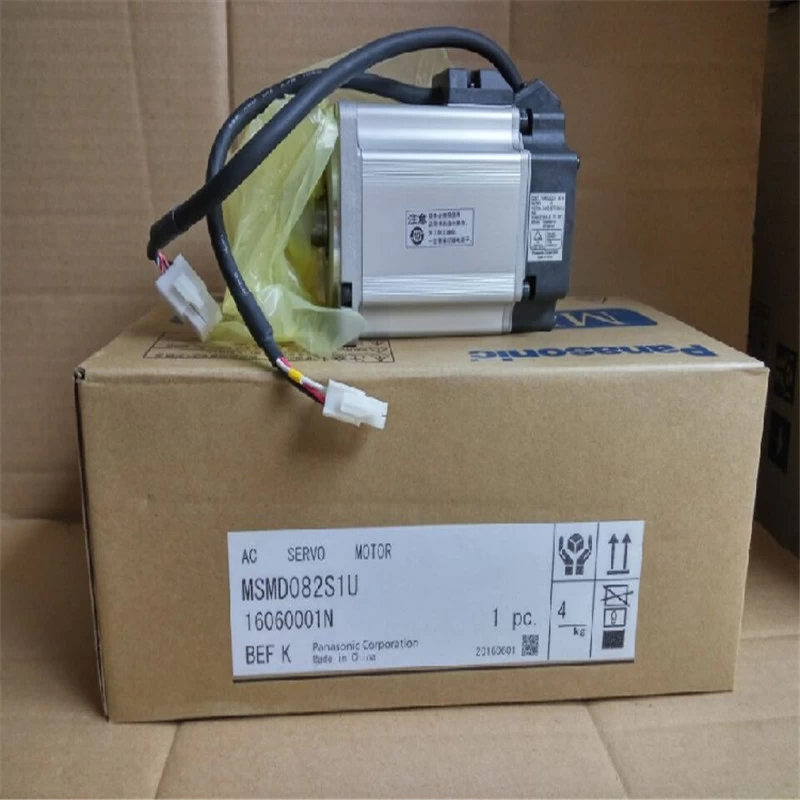

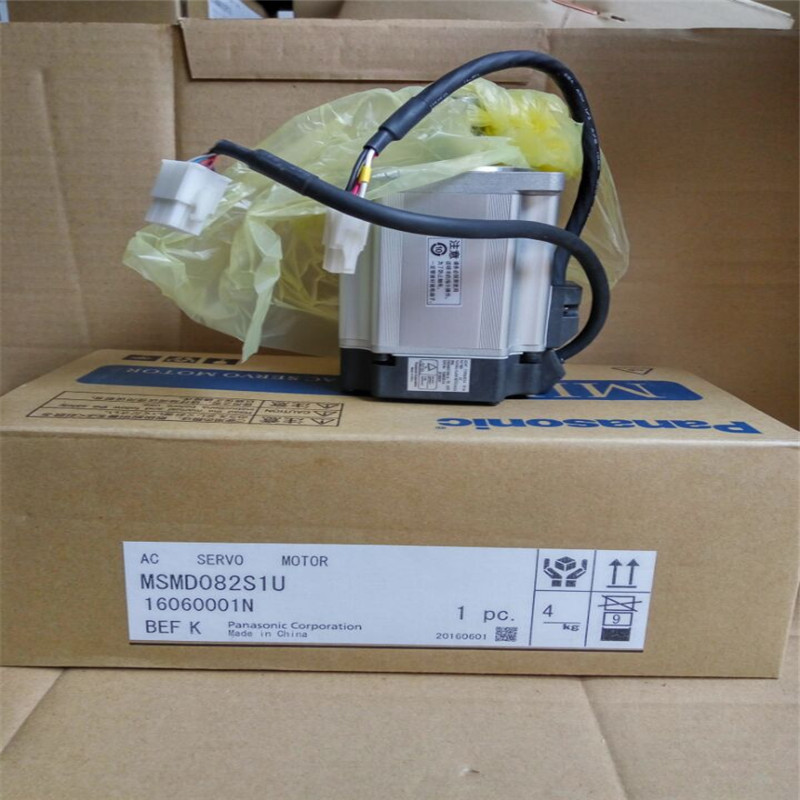

Panasonic MSMD082S1U Lead wire AC Servo Motor

24 Months Warranty

Panasonic MSMD082S1U Lead wire AC Servo Motor



Our commitment

YUGUAN gives you a 2 year warranty on Panasonic series we sell.

1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.

2.Shipping cost &repair cost  by us within 1 year warranty.

3.Shipping cost by buyer, repair cost by us within 2 year warranty.


Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.

Each item has been checked and in good condition before shipping.


Description

Item Specifications
Part Number MSMD082S1U
Details Low inertia, Lead wire type, IP65
Family Name MINAS A5
Series MSMD Series
Type Low inertia
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Warranty 24 Months
Flange sq. dimension 80 mm sq.
Flange sq. dimension (Unit:mm) 80
Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 1.3
Voltage specifications 200 V
Rated output 750 W
Rated current (A (rms)) 4.0
Holding brake without
Mass (kg) 2.3
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 2.4
Momentary Max. peak torque (N ⋅ m) 7.1
Max. current (A (o-p)) 17.0
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency Please refer to the details
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 4500
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.87
Recommended moment of inertia ratio of the load and the rotor 20 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details
Rotary encoder: specifications 17-bit Absolute/Incremental system
Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution 131072


Why choose us?

1) Brand-New, Unused, Unopened, Undamaged product with reasonable price.
2) 100% full New! – Original Factory Seal !
3) Package: Original packing with cartons.
4) Delivery time: Shipped in 3 days after payment.
5) We are control system parts Industrial products supplier and Your Best Business partner.



Our main products as follows:


Allen Bradley  SLC 500 1746,1747,1756 series MODULE,

Allen Bradley 2098 series, Ultra 3000 Servo Drive

ARO Diaphragm Pump Repair Kit

WILDEN Diaphragm Pump Repair Kit

Mitsubishi PLC for FX1S, FX1N, FX2N, FX3U, FX3G, A series and Q series, function modules;

Mitsubishi Inverter for FR-A740, A720, F740, F720, E740, E720, E720S, D740,D720S series;

Mitsubishi HMI for GOT1000, GT15, F900 A900 series;

Mitsubishi Servo for MR-E, MR-J2S, MR-J3 series;

Mitsubishi parts such as battery, connectors, cables, CCLINK Module, resistor.

GE IC693 series, IC694 series,IC695 series,IC697 series,IC200 series,

Kollmorgen Servo driver

Beckhoff servo driver

Panasonic PLC for FP0, FPX, FP2 series;

Panasonic Inverter for VF0, VF100 series;

Panasonic Servo for A4, A5 series.

KEYENCE→ Sensors, Bar Code Readers, PLC, Vision System, Microscopes, Ionisers, Measuring Instruments

Yaskawa SERVO MOTOR, SERVO DRIVE

Schneide PLC MODULE

Siemens Contactor, Circuit breaker, Thermal relay, Overload protection relay, Temperature controller, Disconnect switch max, Siemens I/O Module.

REXROTH Hydraulic Pumps & Motors, Hydraulic Valves, Pump Parts.



THANK YOU SO MUCH!
