Description
|
Item
|
Specifications
|
|
Part Number
|

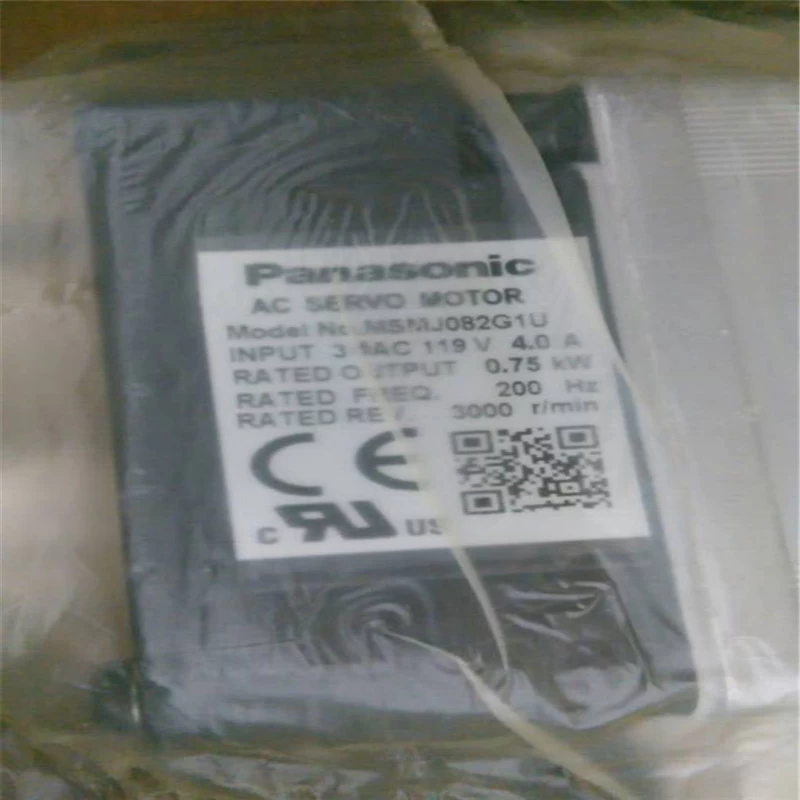

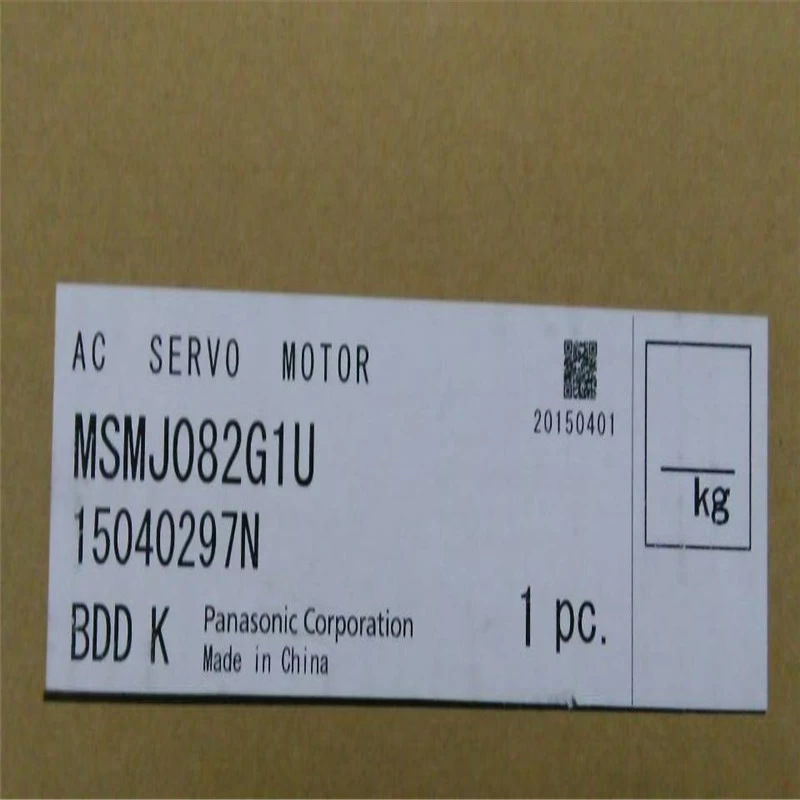

MSMJ082G1U
|
|
Details
|
Low inertia, Connector type, IP65
|
|
Family Name
|
MINAS A5
|
|
Series
|
MSMJ Series
|
|
Type
|
Low inertia
|
|
Special Order Product
|
Special Order Product
|
|
Cautions for Special ordering product
|
Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
|
|
Enclosure
|
IP65
|
|
About Enclosure
|
Except rotating portion of output shaft and leadwire end.
|
|
Warranty
|
24 Months
|
|
Flange sq. dimension
|
80 mm sq.
|
|
Flange sq. dimension (Unit:mm)
|
80
|
|
Motor lead-out configuration
|
Connector
|
|
Motor encoder connector
|
Connector
|
|
Power supply capacity (kVA)
|
1.3
|
|
Voltage specifications
|
200 V
|
|
Rated output
|
750 W
|
|
Rated current (A (rms))
|
4.0
|
|
Holding brake
|
without
|
|
Mass (kg)
|
2.3
|
|
Oil seal
|
with
|
|
Shaft
|
Key-way, center tap
|
|
Rated torque (N ⋅ m)
|
2.4
|
|
Momentary Max. peak torque (N ⋅ m)
|
7.1
|
|
Max. current (A (o-p))
|
17.0
|
|
Regenerative brake frequency (times/min)
|
Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
|
|
About regenerative brake frequency
|
Please refer to the details
|
|
Rated rotational speed (r/min)
|
3000
|
|
Rated rotational Max. speed (r/min)
|
4500
|
|
Moment of inertia of rotor ( x10-4 kg ⋅ m²)
|
0.87
|
|
Recommended moment of inertia ratio of the load and the rotor
|
20 times or less
|
|
About recommended moment of inertia ratio of the load and the rotor
|
Please refer to the details
|
|
Rotary encoder: specifications
|
20-bit Incremental system
|
|
Rotary encoder: Resolution
|
1048576
|
