Panasonic MSMJ082G1V MINAS A5 Family Servo Motor 20-bit Incremental system

24 Months Warranty

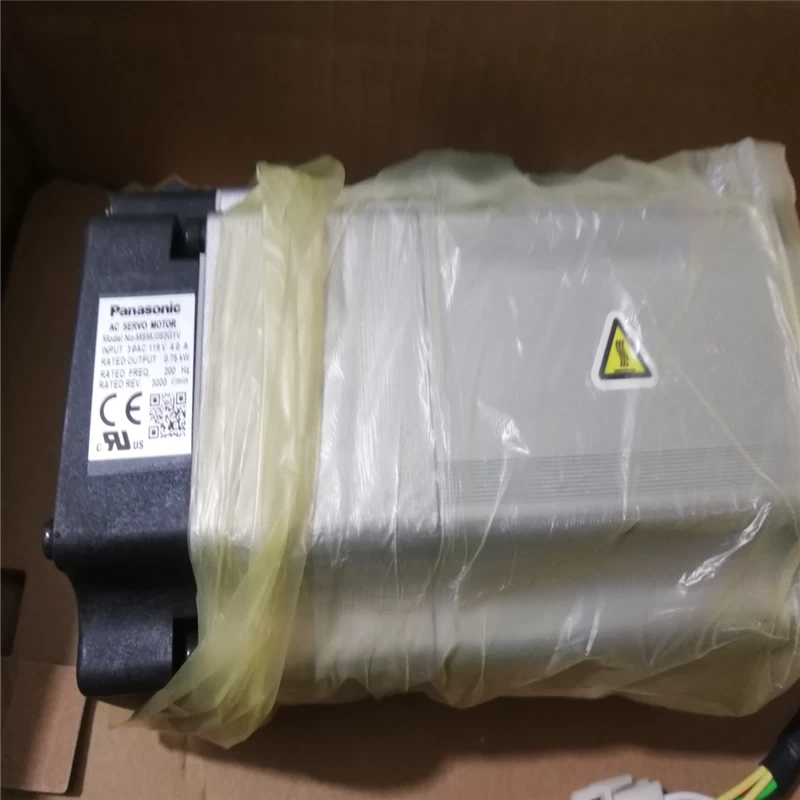

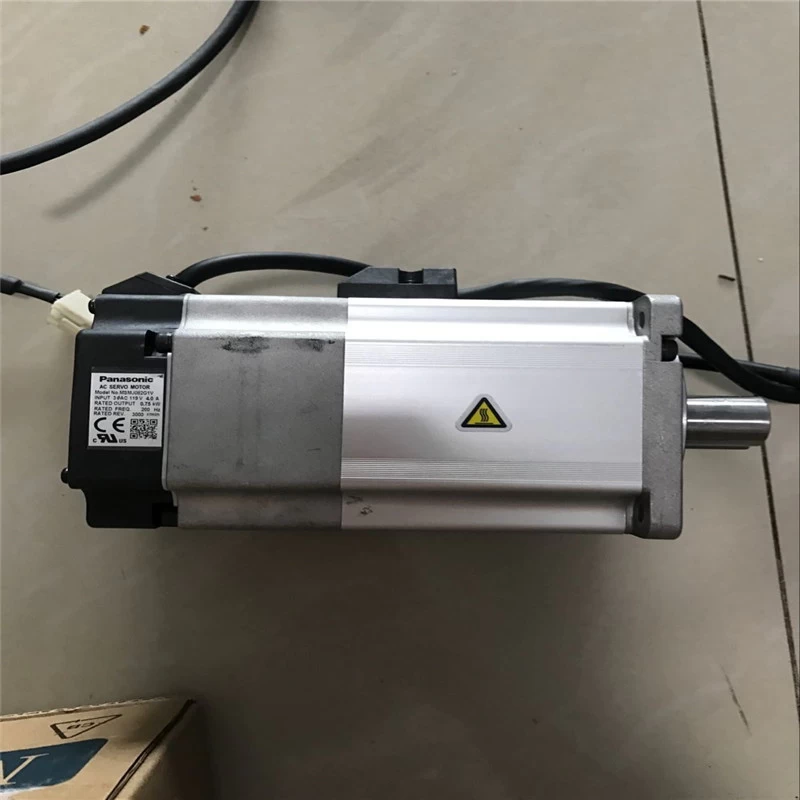

Panasonic MSMJ082G1V Servo Motor 20-bit Incremental system



Our commitment

YUGUAN gives you a 2 year warranty on Panasonic series we sell.

1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.

2.Shipping cost &repair cost  by us within 1 year warranty.

3.Shipping cost by buyer, repair cost by us within 2 year warranty.


Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.

Each item has been checked and in good condition before shipping.


Description

Item Specifications
Part Number MSMJ082G1V
Details Low inertia, Connector type, IP65
Family Name MINAS A5
Series MSMJ Series
Type Low inertia
Special Order Product Special Order Product
Cautions for Special ordering product Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Warranty  24 Months
Flange sq. dimension 80 mm sq.
Flange sq. dimension (Unit:mm) 80
Motor lead-out configuration Connector
Motor encoder connector Connector
Power supply capacity (kVA) 1.3
Voltage specifications 200 V
Rated output 750 W
Rated current (A (rms)) 4.0
Holding brake with
Mass (kg) 3.1
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 2.4
Momentary Max. peak torque (N ⋅ m) 7.1
Max. current (A (o-p)) 17.0
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency Please refer to the details
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 4500
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.97
Recommended moment of inertia ratio of the load and the rotor 20 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details
Rotary encoder: specifications 20-bit Incremental system
Rotary encoder: Resolution 1048576
