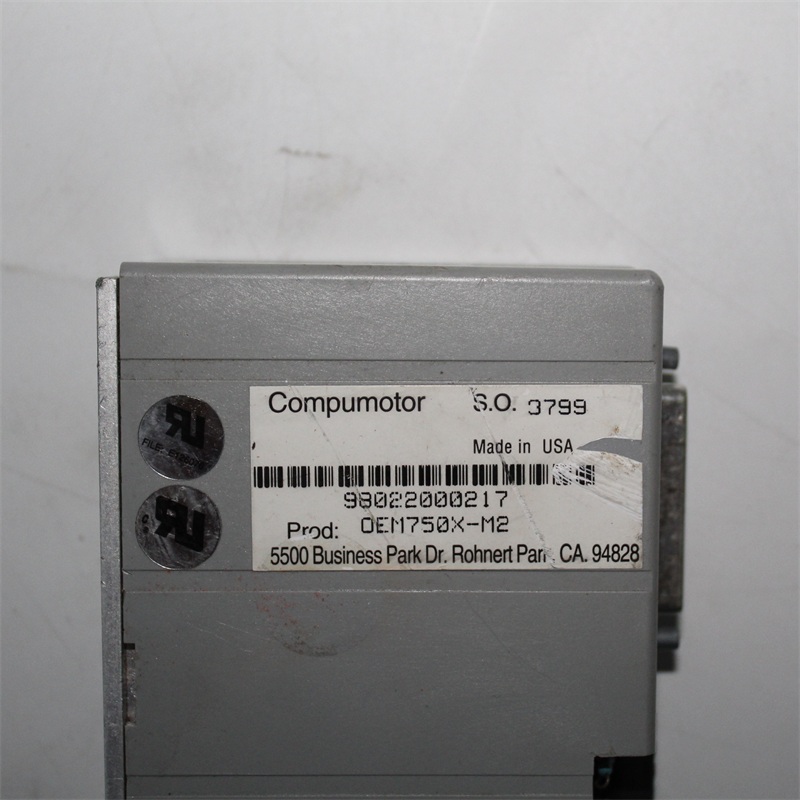

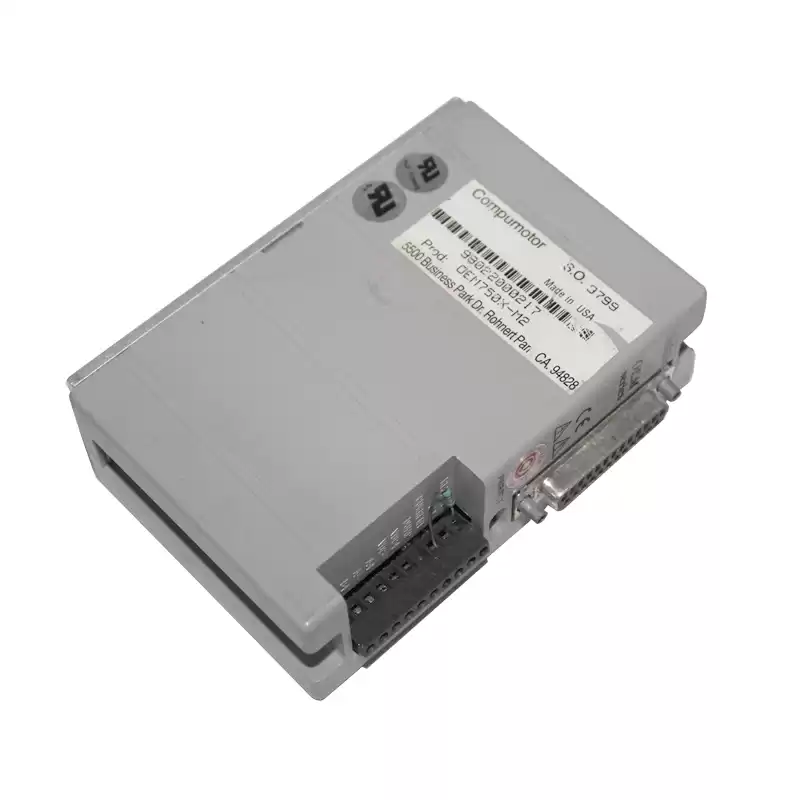

Product Details:

  * The OEM750X produces step and direction outputs that are identical to its own internal step and direction signals. These outputs can be used to slave to another drive or to monitor the OEM750X's position and velocity. The direction output's default state is logic high. The step output's default state is a high, pulsing low output. The next figure represents a typical configuration of this output.

  * The OEM750X has two dedicated hardware end-of-travel limits—clockwise (CW) and counterclockwise (CCW). When you apply power to the OEM750X, these inputs are enabled—the default active state is high. To test the OEM750X without connecting the CW and CCW limits, you must disable the limits with the LD3 command. You can use the Limit Switch Status Report (RA) and Input Status (IS) commands to monitor the limits’ status, and the OSA command to change the active level of the inputs. The figure represents a typical configuration of these inputs.

  * The OEM750X has one dedicated home input. The home input allows you to establish a home reference input. This input is not active during power-up—its default active state is low. Refer to the Go Home (GH) command for more information on setting up and using this function. The figure represents a typical configuration of this input. (Refer to the OSC command, which changes the active level of the home input, and the GH command.)

  * The OEM750X has two dedicated programmable outputs.They may be used to signal peripheral devices upon the start or completion of a move. The default state for outputs #1 and #2 is logic low. The outputs are internally pulled up to 5VDC when active. The figure represents a typical configuration of these outputs. (Refer to the O command.)

  * The OEM750X has one dedicated fault output. This output may be used to signal peripheral devices if an OEM750X failure occurs. The Fault output's default state is logic high. If a fault occurs, internal circuitry energizes the transistor’s base, pulling the output low. The figure represents a typical configuration of this output.

  * The OEM750X has three dedicated sequence inputs that allow you to control seven different sequences. The default active state is high. You must use the X commands (particularly the XP command) to configure these inputs. Sequence #Ø is not a valid sequence.
