| System |
Part Name |
Description |
| Chassis |
Engine |
Engine: WEICHAI WD615.46;
Fuel Type: Diesel; Displacement: 9.726L;
Horsepower: 360 hp; Maximum torque: 1460N•m;
Maximum torque speed: 1400-1600RPM.
|
| Clutch |
SACHS BRAND, diameter: 430mm;
Dry single plate with cushioning springs, hydraulic with air
|
| Transmission |
ZF imported , Manual, six gears |
| Rear Axle |
DONGFENG 13000KG, spiral bevel pinion and hypoid gear semi-floating |
| Suspension |
Air suspension, front 2/rear 4, hydraulic double acting telescopic shock absorbers |
| Front Axle |
DONGFENG 6500KG, reverse Elliot, I-beam |
| Tyre |
295/80R22.5 tubeless tyre |
| Steering System |
ZF 8098, power steering |
| Brake System |
Full air brake, front /rear drum type |
| Retarder |
Equipped |
| ABS & Auto Slack Adjuster |
Equipped |
| Body |
Wheel cover |
Stainless steel wheel rim cover |
| Driver position |
LHD |
| Internal light |
Line lights |
| Floor mat |
Luxury floor mat with quartz sand |

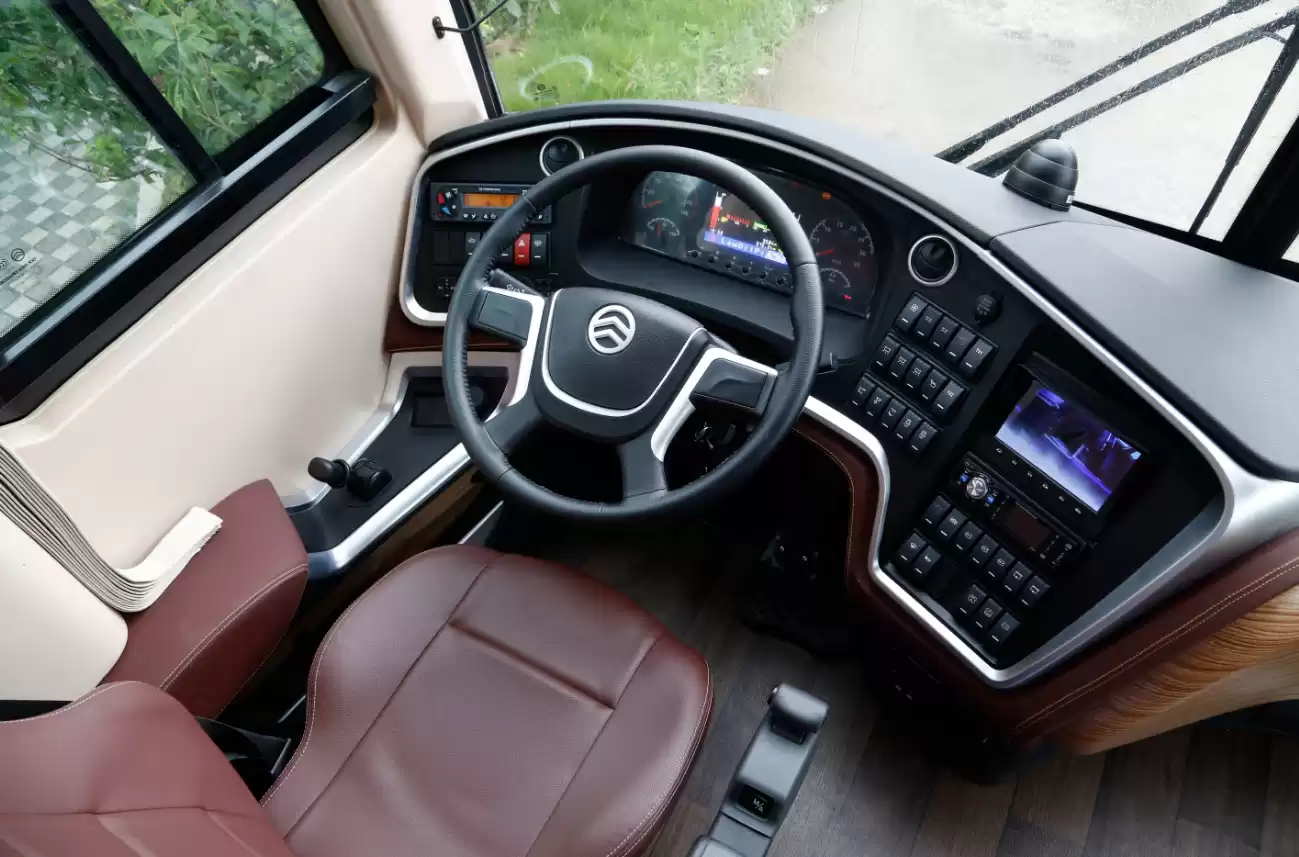

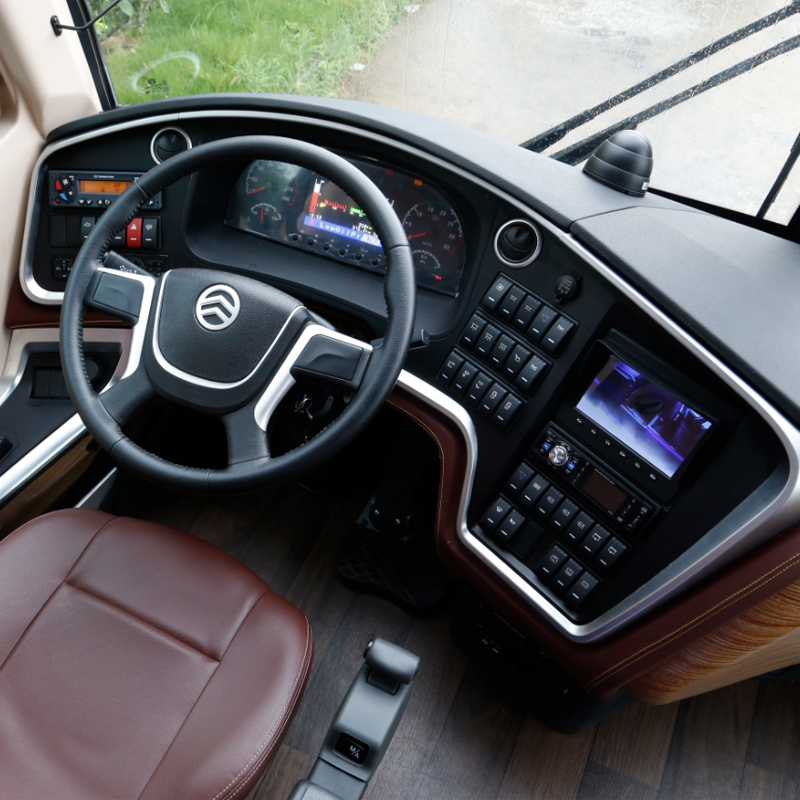

| Dashboard |
Luxury integrated type |
| Side window glass |
Totally inner sliding window, tempered and dark grey tinted side glass |
| Inner luggage rack |
Equipped |

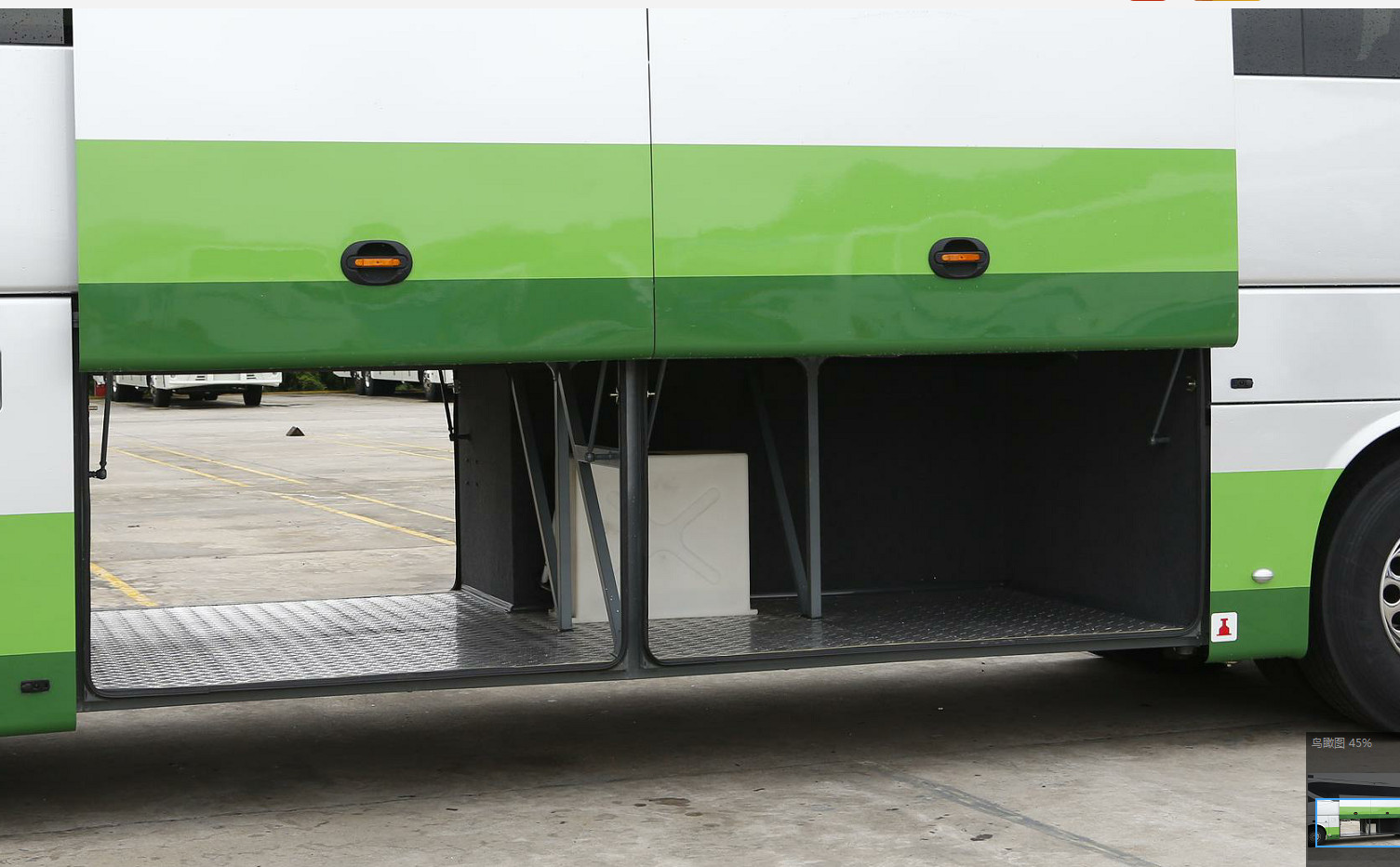

| Luggage compartment |
Max. space 8m3 |
| Luggage compartment flap |
Aluminum alloy flap |
| Top hatch and ventilator |
2 sets of top hatch |
| Inner trim |
Standard type |
| Passenger door |
Auto outward swing passenger door with pneumatic telescopic step |
| Passenger door, middle |
Auto outward swing passenger door |
| Driver seat |
Leather driver seat with air suspension |
| Guide seat |
Equipped |

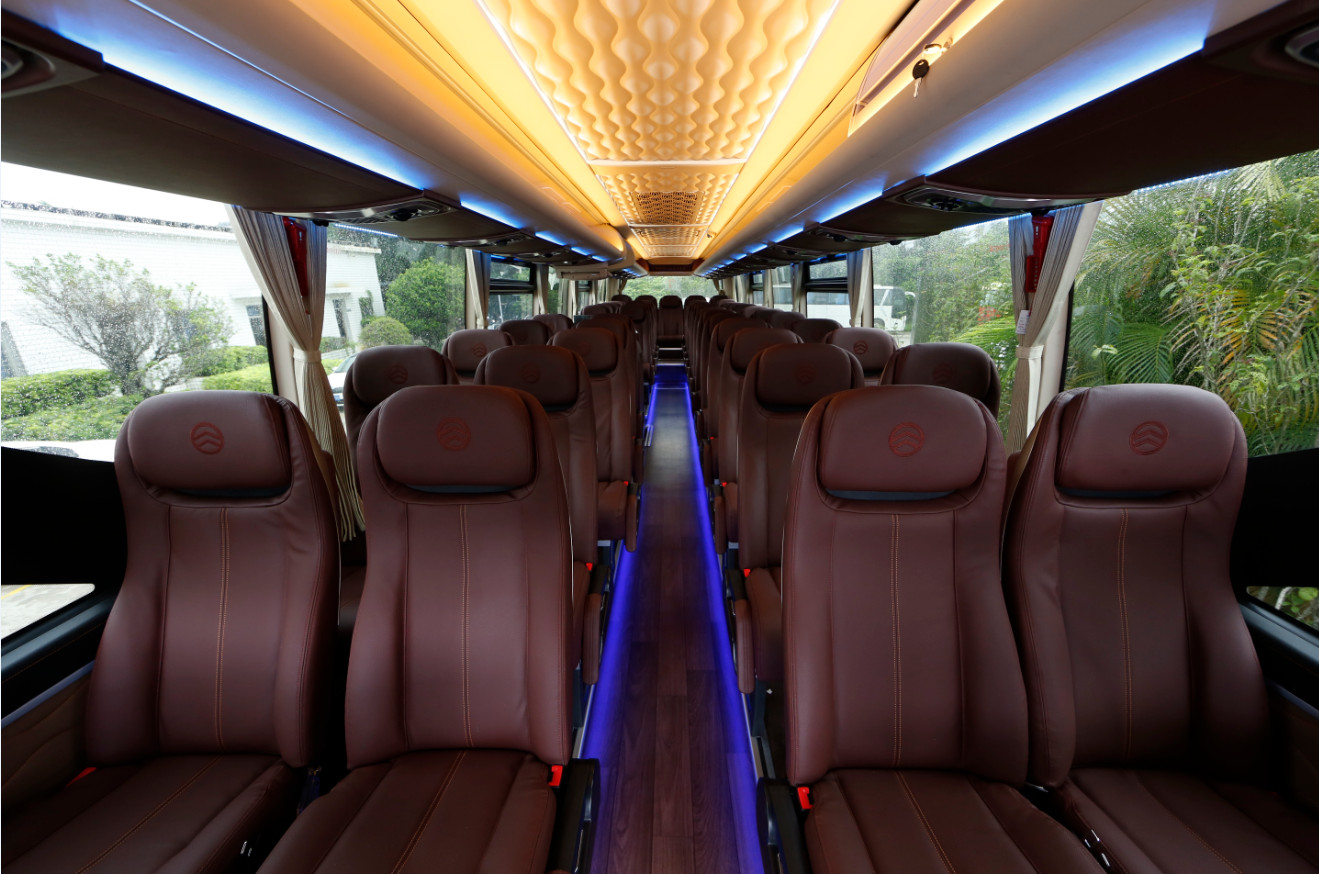

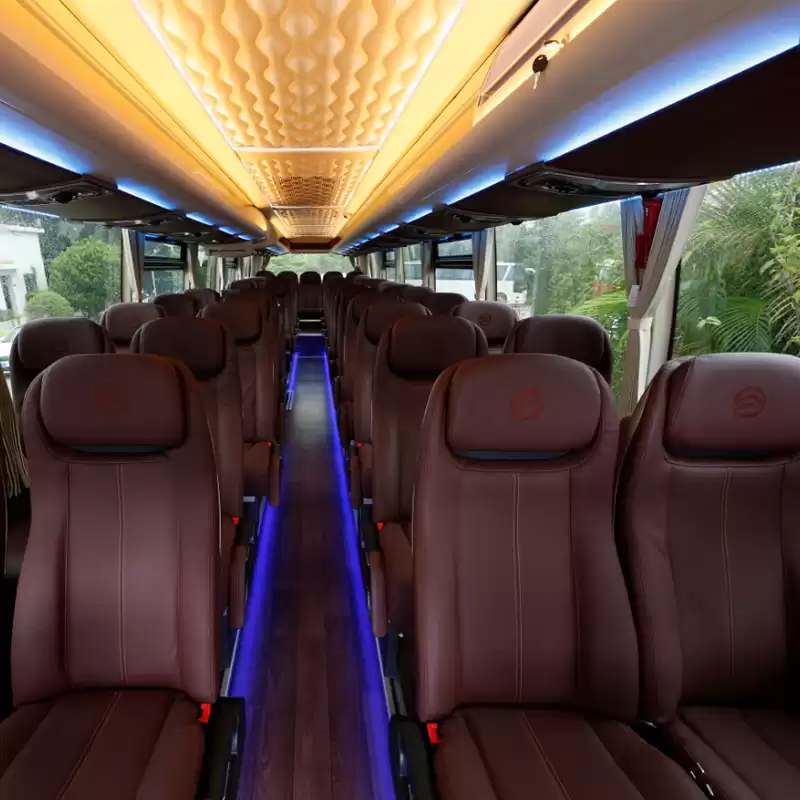

| Passenger seat |
47 leather covered seats, double on each side, adjustable backrest, transversely moveable, with armrest, foot rest ,paper net |
| Rear view mirror |
Standard electric type |
| Front sun visor |
Sun visor for driver and guide |
| Safety belt |
All seats with seatbelts |
| Curtain |
Equipped |
| Painting |
Standard |
| Color & pattern |
Equipped |
| Vehicle ID |
English vehicle ID |
| Electrical Equipment |
Alterlation |
Prestolite alternator |
| Battery |
200Ah*2 |
| Electric/pneumatic horn |
Equipped |
| Digital clock |
Equipped |
| CAN－controller area network |
Chinese CAN－controller area network |
| High position brake lamp |
Equipped |
| Audio-vision system |
DVD player+22 inch LCD (power) |
| Middle monitor |
19 inch LCD (power) |
| Reversing monitor |
Color reversing monitor |
| Reversing buzzor |
Equipped |
| A/C |
Songz brand, 32000Kcal/h, Bitzer compressor |
| Fire fighting system for engine compartment |
Equipped |
| Toilet |
Equipped |
| Wifi |
Equipped |
| USB charger |
Equipped |
| Food tray for each seats |
Equipped |

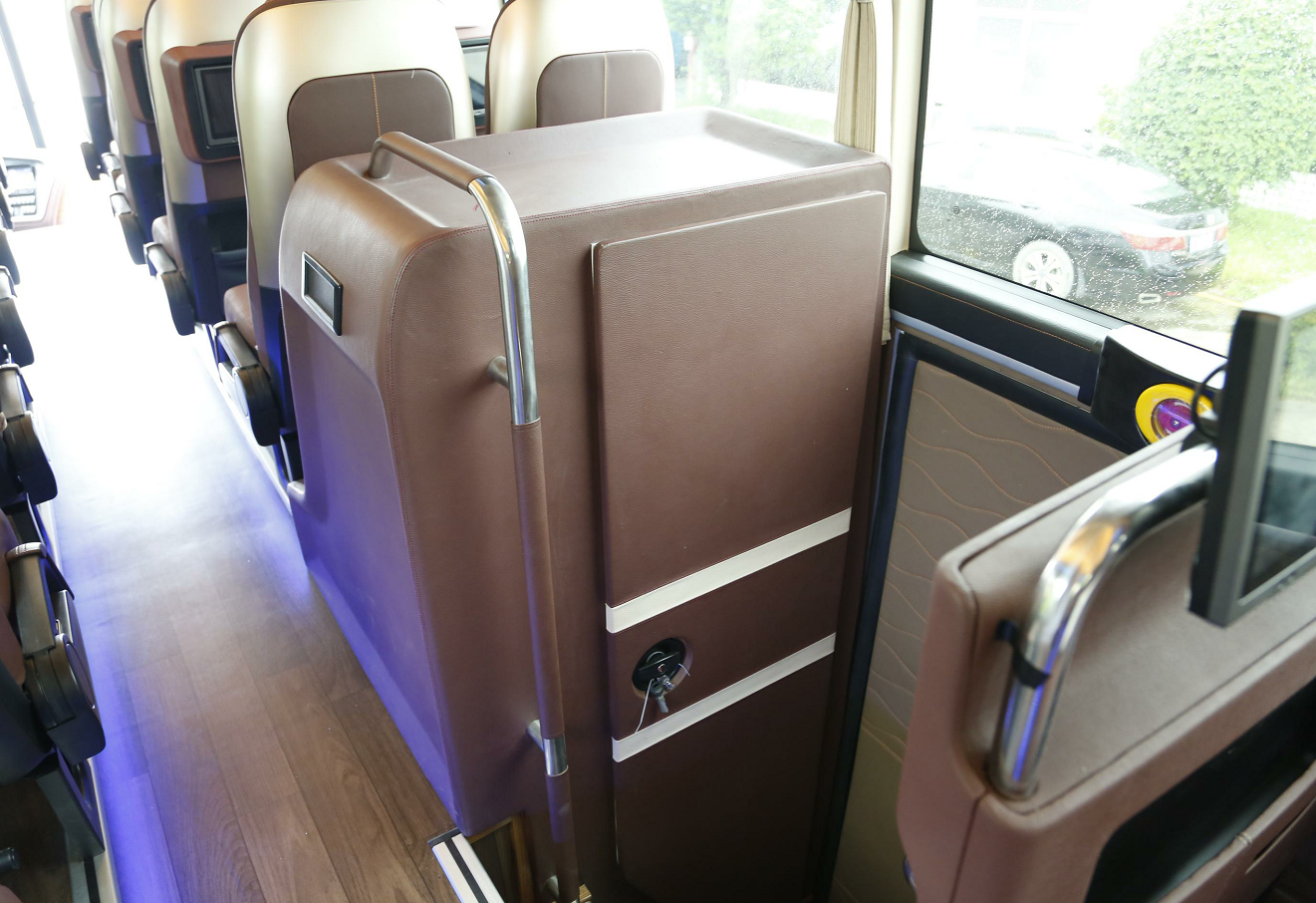

| Refrigerator |
Equipped |
| Warranty condition |
1 years or 100000 km; from bumper to bumper, whichever occurs first. The details are referred to Warranty and Service Manual of Xiamen Golden Dragon Bus Co. Ltd. |
| Overall Dimension |
L×W×H: 12000 × 2550×3795 mm |
| Wheelbase |
6300 MM |
| Fuel Tank Capacity |
400 L |
| Max Speed |
≥120km/h |
| Seat Capacity |
47+1+1 |
