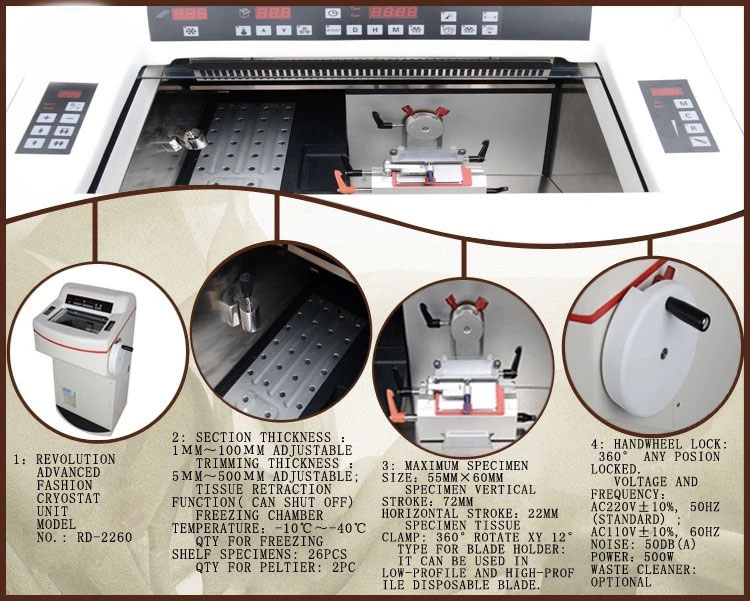

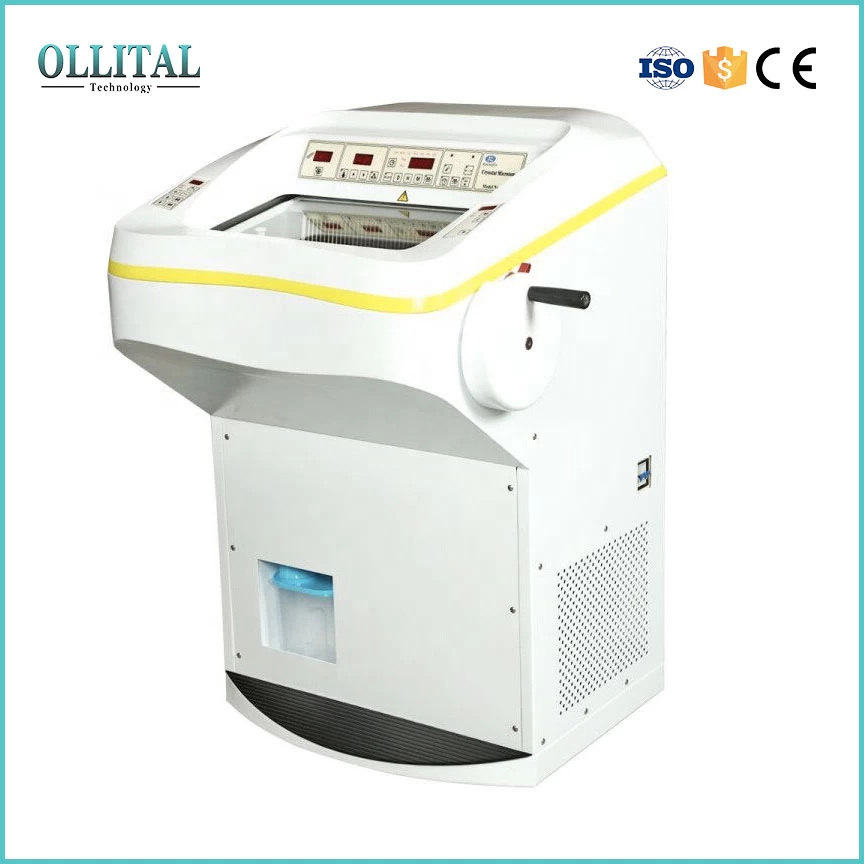

Pathology Instrument RD-2260 Fast Freezing Cryostat Microtome

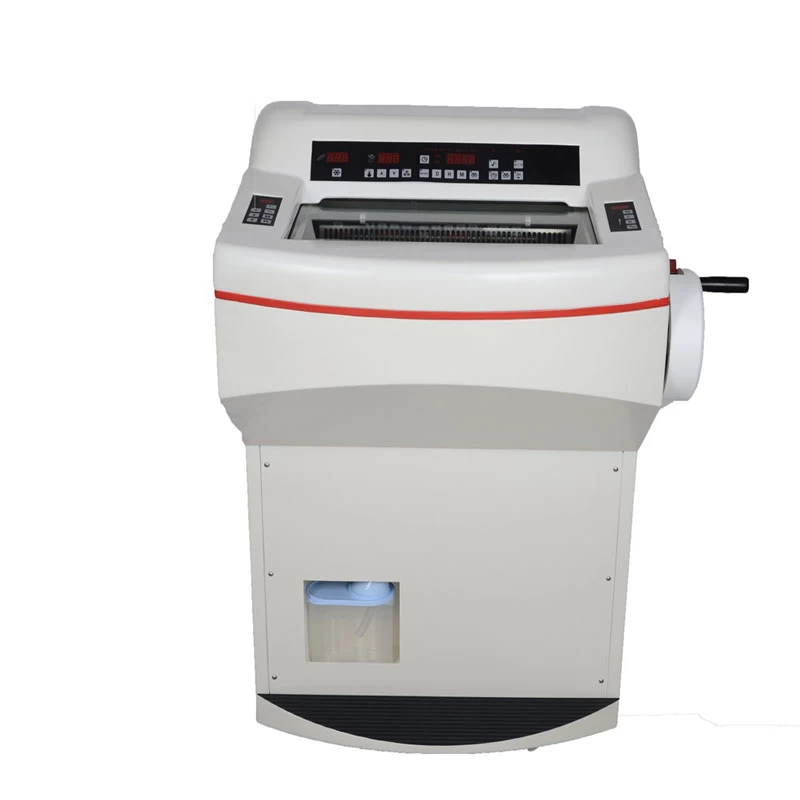

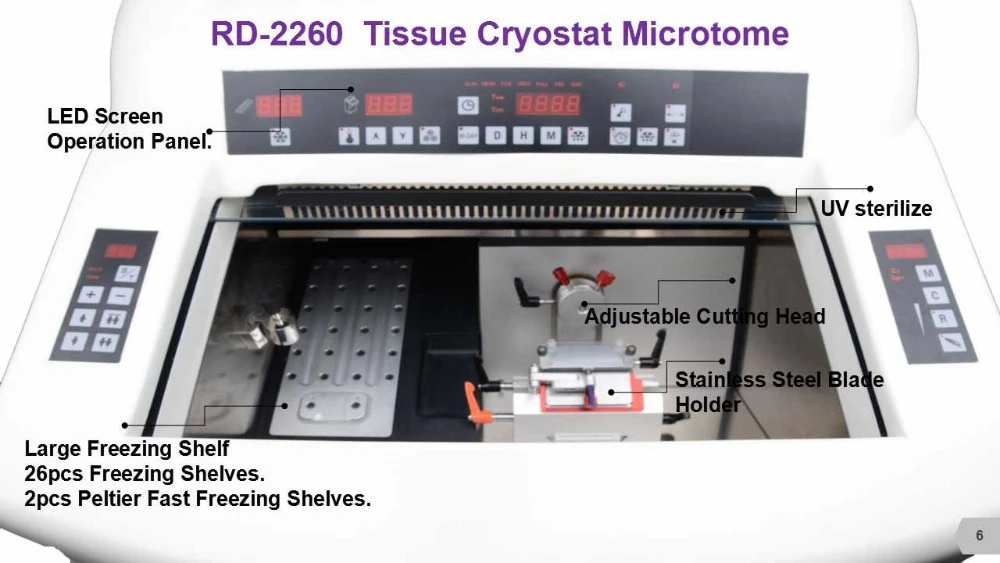

RD-2260 Tissue Cryostat Microtome
|
|
|
Section thickness range
|
1μm~100μm Adjustable
1μm~20μm increment:1μm
20μm~40μm increment:2μm
40μm~100μm increment:5μm
|
|
Trimming thickness range
|
5μm~500μm Adjustable
5μm~50μm increment:5μm
50μm~100μm increment:10μm
100μm~500μm increment:50μm
|
|
Specimen retraction
(Can Be Turn Off)
|
0μm~90μm Adjustable
0μm~60μm increment:5μm
60μm~90μm increment:10μm
|
|
Horizontal stroke
|
22mm
|
|
Vertical stroke
|
72mm
|
|
|
Freezing chamber temperature
|
-10℃~-40℃
|
|

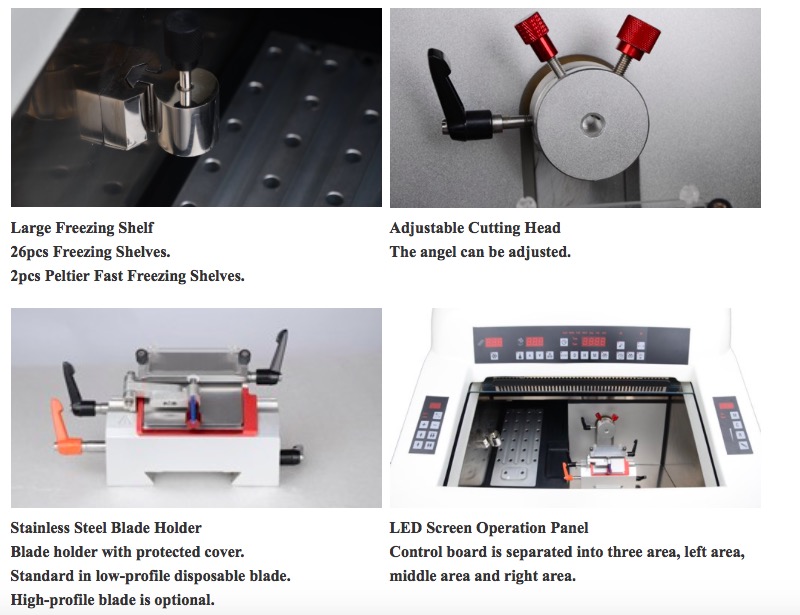

Freezing shelf Minimum Freezing shelf temperature
|
-45℃
|
|
Number of freezing station
|
26
|
|
Minimum Peltier shelf temperature
|
-60℃
|
|
Peltier number
|
2
|
|
Working time to reach -65℃
|
15min
|
|
|
Voltage And Frequency
|
AC220V±10%, 50Hz(Standard)
AC110V±10%, 60Hz
|
|
Power
|
500w
|
|
Refrigerant
|
R404a
|
|

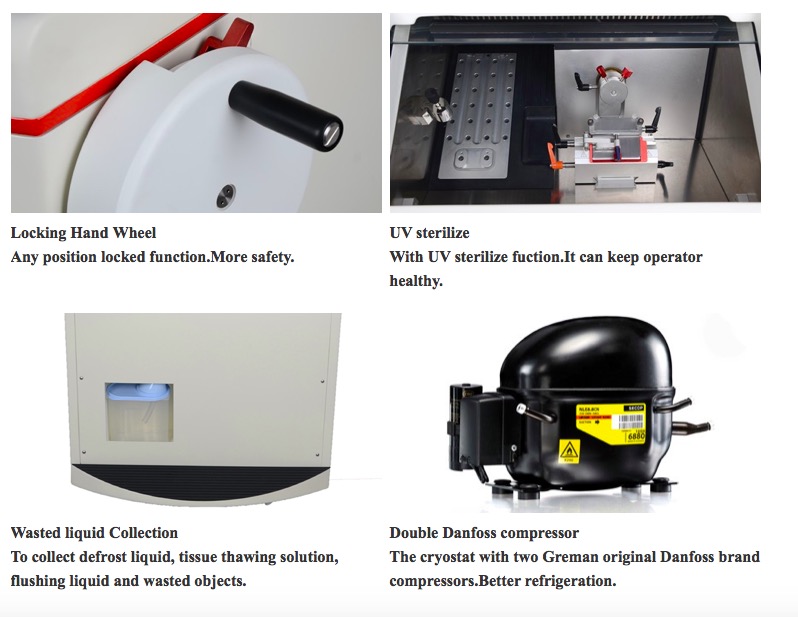

Compressor Type
|
Double Danfoss Compressor
|
