Pathology Slice Manual Tissue Hand wheel Microtome Leica Type

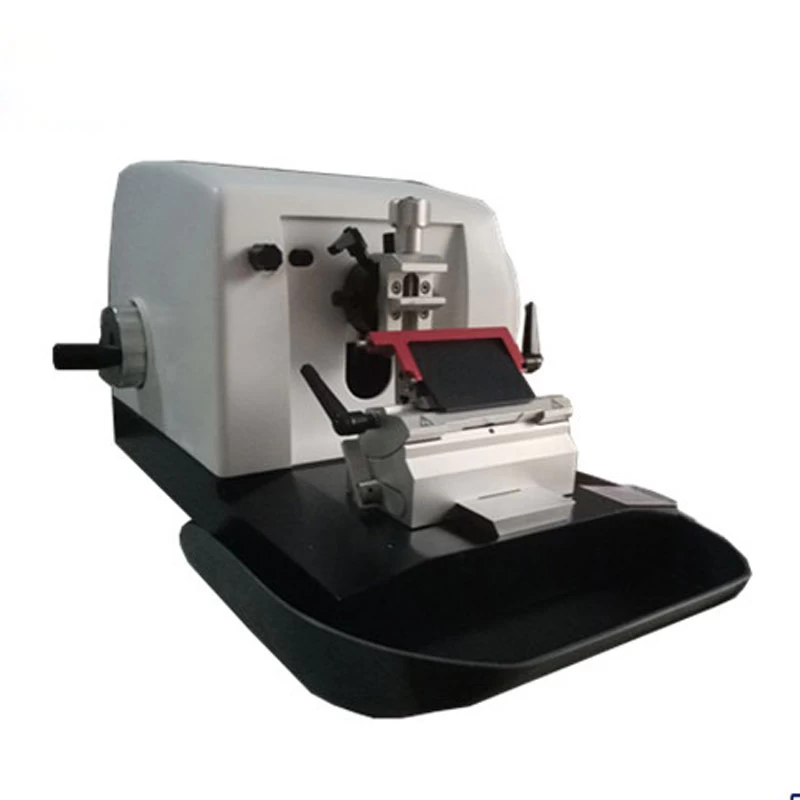

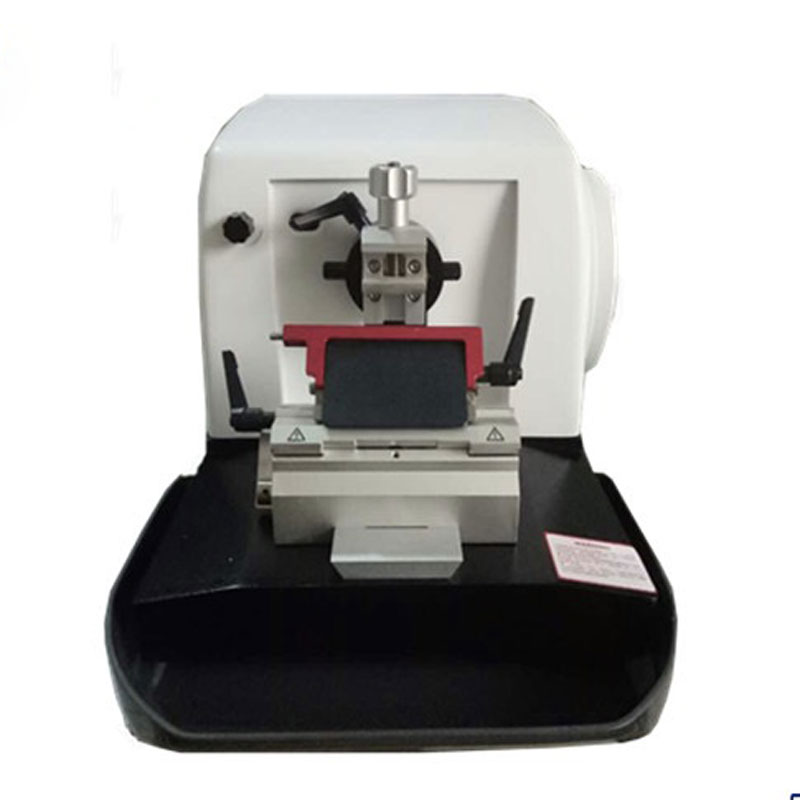

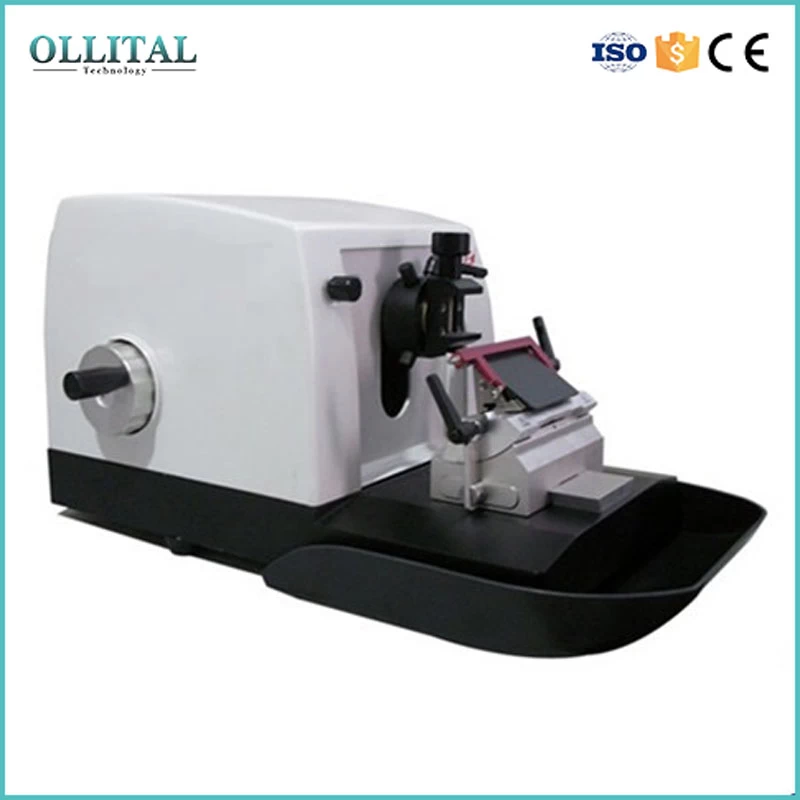

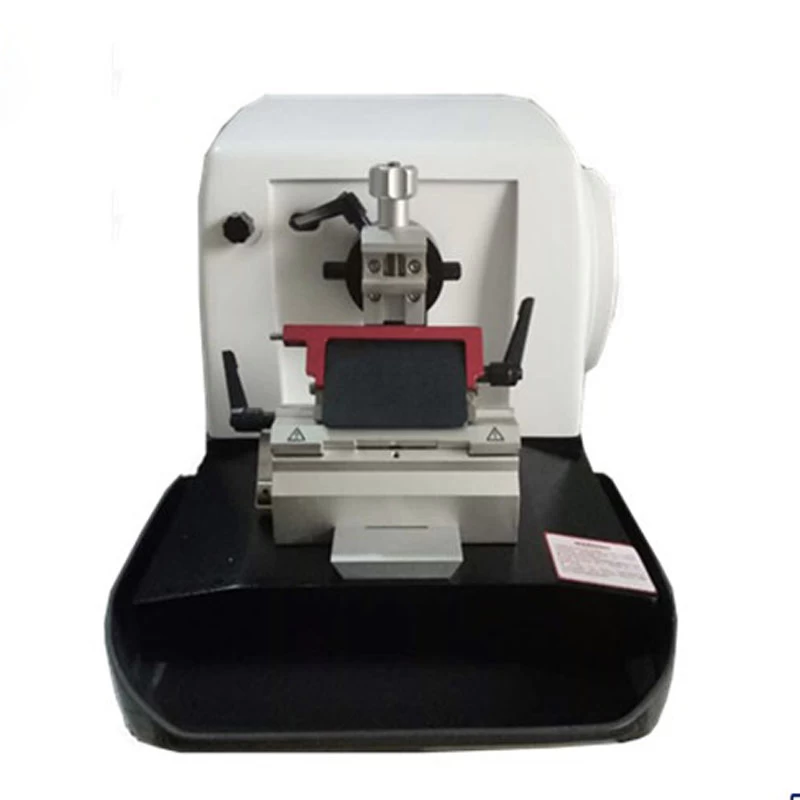

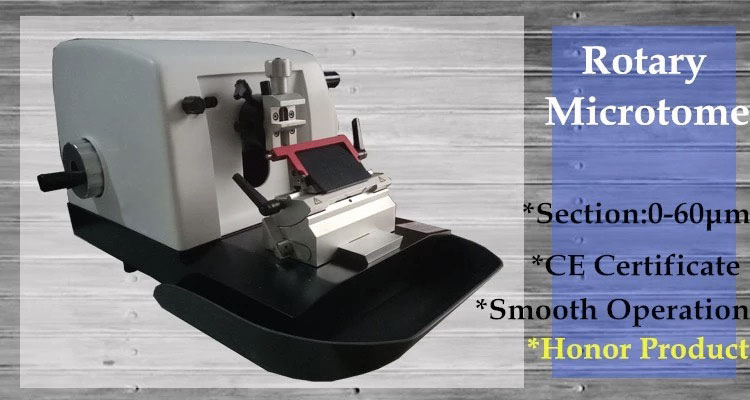

RD-315 Pathology Tissue Rotary / Manual Microtome
|
|
|
Section Thickness Setting Range
|
0 - 60μm
0 - 2μm increment 0.5μm
2 - 10μm increment 1μm
10 - 20μm increment 2μm
20 - 60μm increment 5μm
|
|
Trimming Thickness Setting Range
|
1 - 60μm
|
|
Minimum Setting of Sectioning Thickness
|
0.5μm
|
|
Specimen Retraction
|
1 - 28μm
|
|
Maximum Specimen Size
|
60-50mm
|
|
Tolerance
|
±1%
|
|
Specimen Horizontal Feeding
|
24mm
|
|
Specimen Vertical Feeding
|
52mm
|
|
|
Net Weight
|
35KG
|
|
Size
|
565×440×285mm (W×D×H)
|
RD-315 Manual rotary microtome is a new-generation microtome specially developed for modern histology.This model is equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.
1.It have clipper built case , the user can put blade , wax block ,or other consumable one the top of case . it is easy .

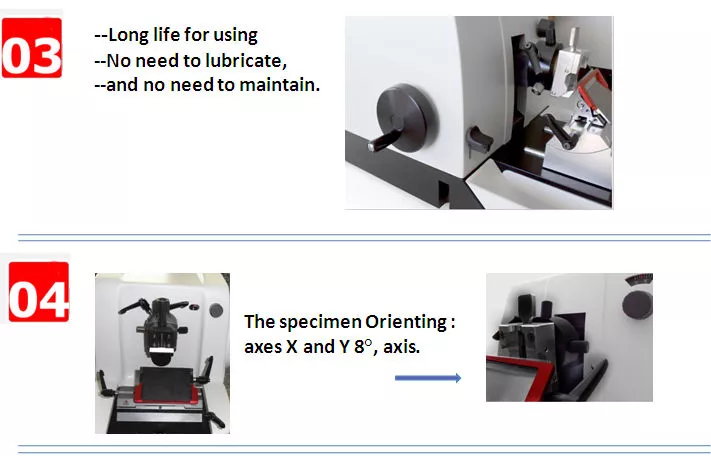

2 it do not need to lubricate and maintain the microtome frequently .

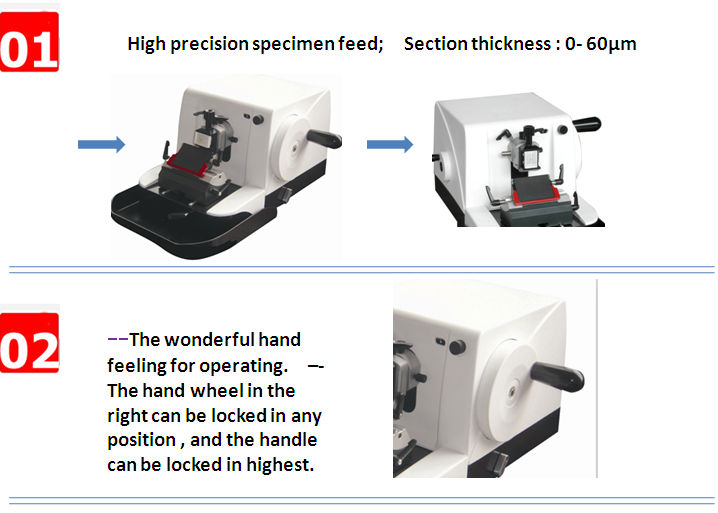

3.The hand wheel in the right can be locked in any position , and the handle can be locked in highest position , it is double safe for changing blade or tissue block .
4 The specimen Orienting system: axes X and Y 8°, axis 180°.

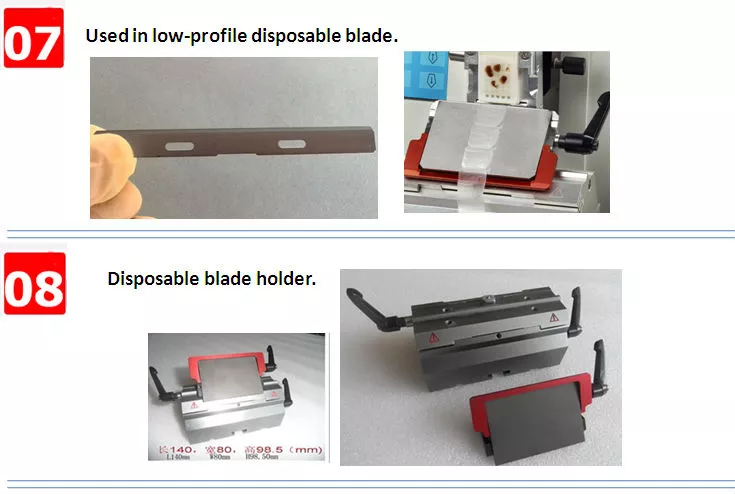

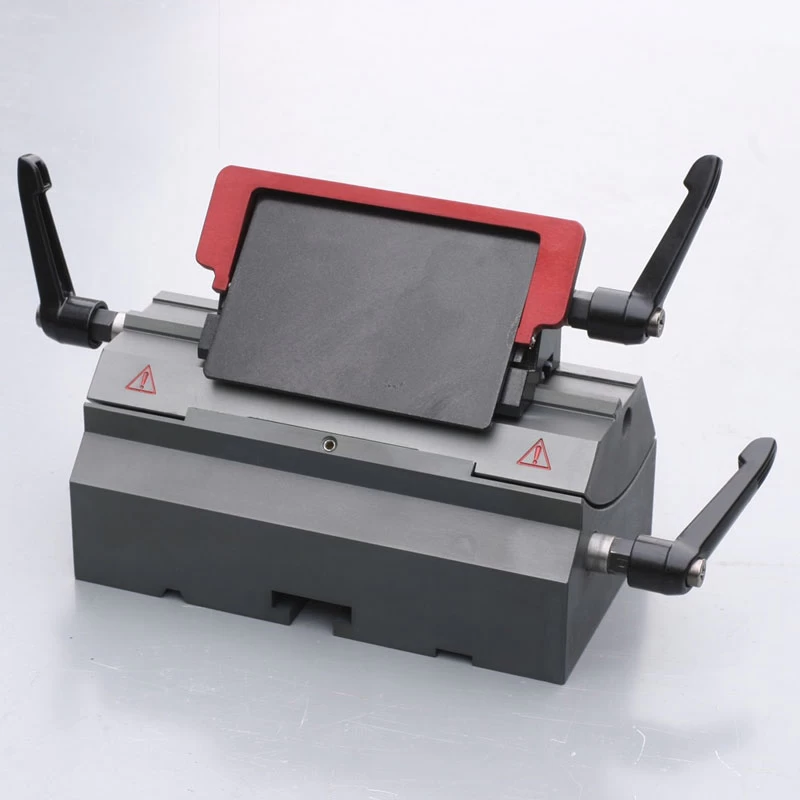

5. It adopt the special blade holder , it is more safe and convenient to use the disposable blade directly . it also can to longer the user life of disposable blade
