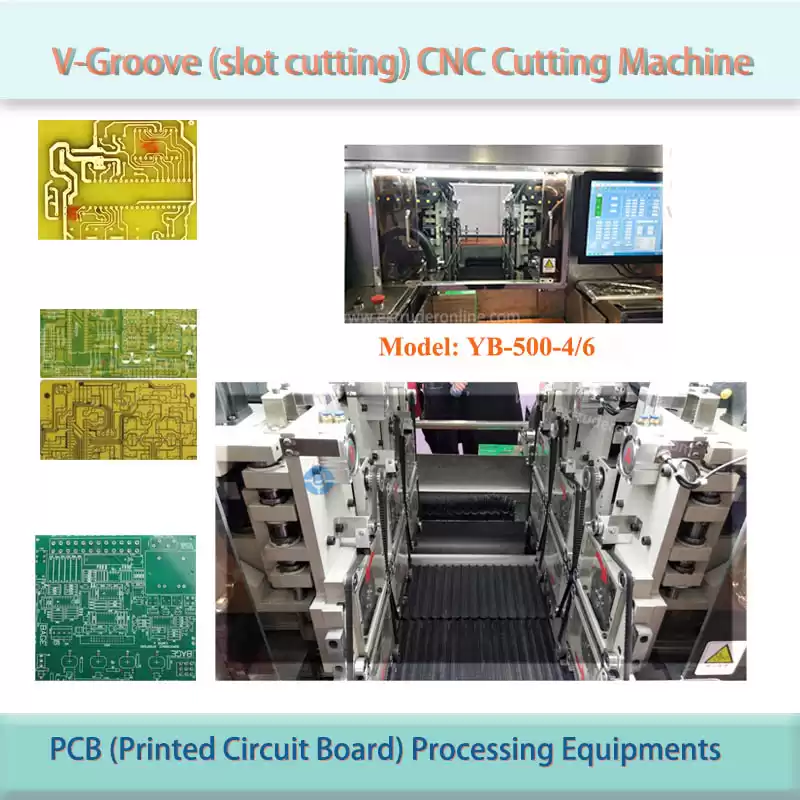

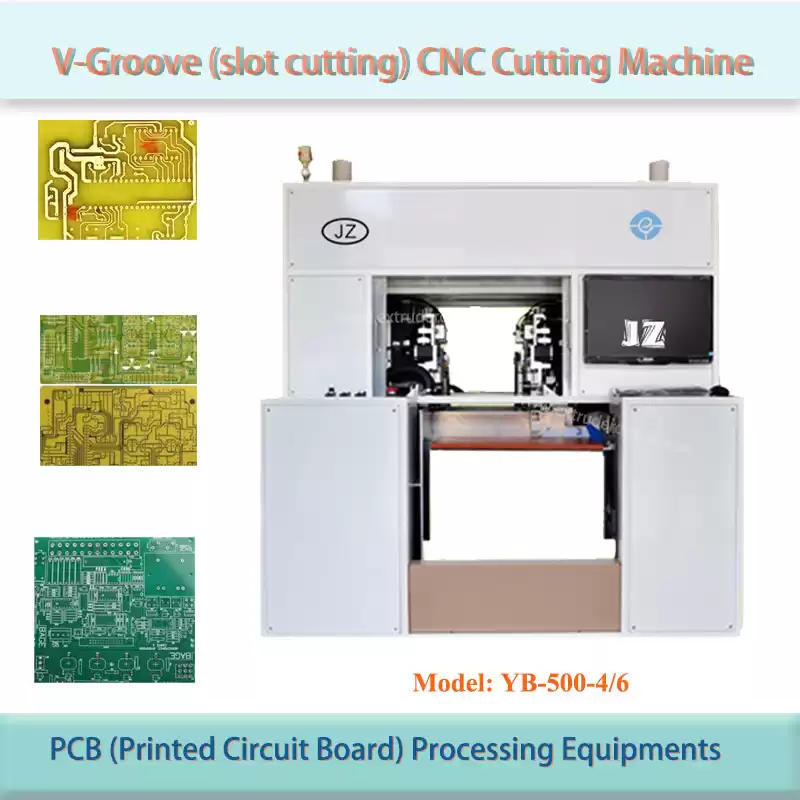

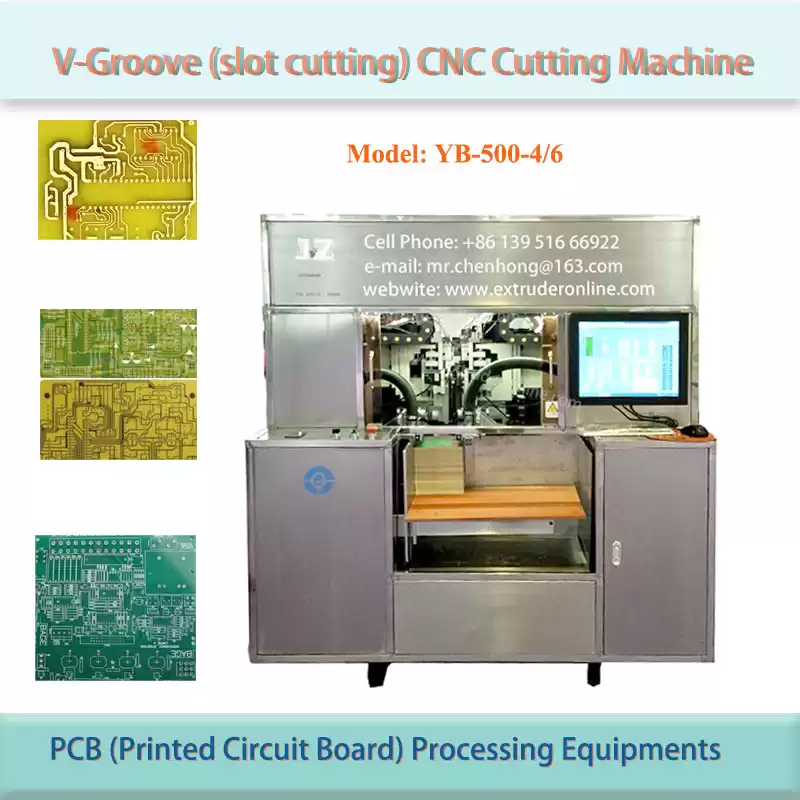

PCB  CNC 4 or 6 KNIVES (Blades) V-GROOVE CUTTING MACHINE

HS CODE: 8465920000  or  8479899990

The machine controlled by the small computer which has CNC automatic V-groove Cut, and the machine equipped 4 blades or 6 blades for different model for customers' selection.

Technical parameter:

Working Capability:

Width/ Length: 70-450mm (Min. to Max.)

Thickness: 0.6-2.4mm ( Min. to Max.)

V-Groove Position:

1st knife (blade): 3mm-390mm;

2nd knife (blade): 70mm-450mm;

3rd knife (blade): 70mm-450mm;

4th knife (blade): 70mm-450mm

V-Groove Making No.: upper/lower direction 4 lines for each.

Precision of V-Groove residual thickness: ±0.07mm ( Manual Compensation is allowed)

Parallel Accuracy of V-Groove: ±0.07mm ( Manual Compensation is allowed)

Separation Distance Accuracy of V-Groove: ±0.07mm ( Manual Compensation is allowed)

Controlling System: PLC motion controller,  stepping motor, PC touch screen interface;

Processing shaft: motor 8 shafts/ 4 knives (blades)

 Knife/blade Dia.: Φ100,

 Speed: 7500RPM

Processing capacity: 7-40Meters/Min.

PCB unreeling/collecting device: Automatic, leaning on one side for PCB unreeling and collecting;

Power: AC 380V, 3 Phases, 50Hz, / 220V, single-phase, 50Hz;

Air-Source: 0.5Mpa(5Kg/cm2,  290NL/Min.  dry air source;

Optional device: Dusts Collector: MP-15L, 750w, Low voltage type,

Connecting pipe Dia.: Φ90mm

Max. Air Volume(Blast capacity): 15M2/ Min.

Max. Static Pressure: 75mm/AQ

Dimension: 1500*1650*1750mm(W*L*H)

Working Table Height: 900mm(included unreeling/collecting device);

Weight: around 1.5T;

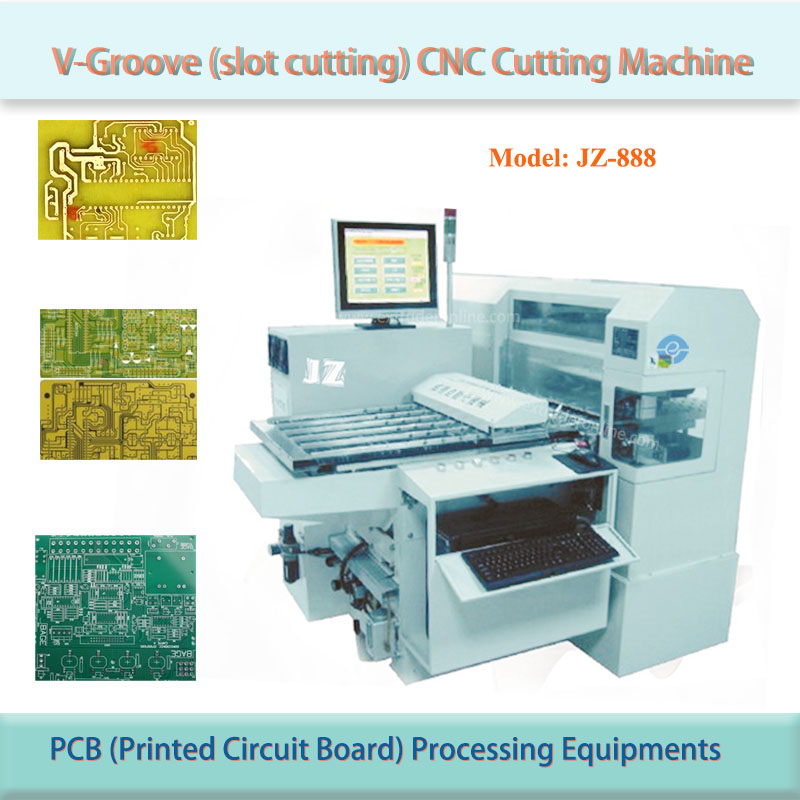

We also have aother type v-groove cutting machine: JZ-888

 If you need more information about the PCB equipments, please contact us by the following information, we will reply you in time.
