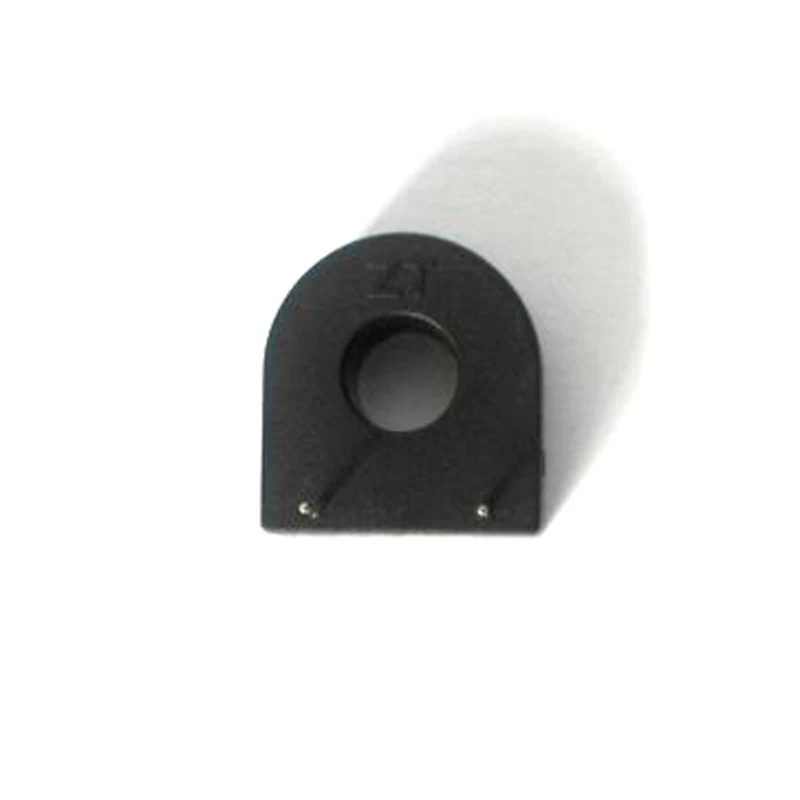

PCB Mounting Zero phase current transformer ZCT501

High sensitivity and close to zero load shift
Excellent characteristics in temperature and balance

Small change of output voltage after large DC impulse

A variety of configuration and output characteristics
Used for leakage current detection



PCB Mounting Zero phase current transformer ZCT501


Zero phase current transformer which detects the difference between the currents flowing in a number of conductors. The current flowing to a load must equal the current flowing back from the load. If this is not the case, a potentially dangerous residual current will be flowing somewhere in the installation.

Wire lead type zero phase current transformers are easy integrated into standard PCB sub-assemblies that are compliant with IEC61008, IEC61009 and IEC62423 requirements.


Rated Current 30A
DC Resistance at 25℃ 26±4Ω
Dielectric Withstanding      Voltage(Hi-pot) 2500Vrms
Output Voltage Vo 11±3mV
zero phase current transformer



Electrical Characteristic

Item

Rated Current(A)

Output Voltage
Vo(mv)

Test Conditions

Over Leakage
Characterstics

Temperature
Characteristics
-35℃~80℃

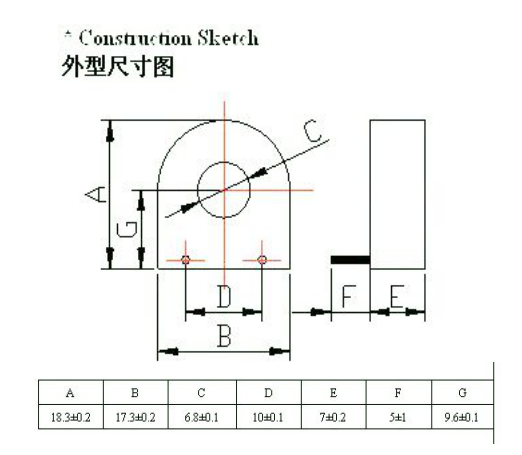

Dimensions
(mm)













ID

OD

HT

ZCT501

30

8-14

lin=30mA,RL=1kΩ¸

-10%~0%

10%Max

6.8

17.3

7

ZCT502

30

6.3-7.3

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

6.8

18.2

7.2

ZCT503

20

7.5-10.5

lin=11.25mA RL=1kΩ¸

-10%~0%

10%Max

5.5

15.4

6

ZCT505

30

17-21

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

9.3

20.9

7.2

ZCT506

30

17-21

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

5

17

9.5

ZCT507

30

25-30.5

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

6

18.6

10

ZCT511

20

4.8-5.1

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

6.8

17.5

7.8

ZCT515

30

3.2-4

lin=25mA RL=330Ω¸

-10%~0%

10%Max

8.1

18

6.5

ZCT516

40

6.3-7.3

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

7.1

17

19.1

ZCT519

50

17-22

lin=11mA,RL=2kΩ¸

-10%~0%

10%Max

9

23

8.3

ZCT520

50

20-24

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

12

26.7

11

ZCT526

40

25-30

lin=25mA RL=1kΩ¸

-10%~0%

10%Max

5.8

19.3

7.8

ZCT528

30

7.5-12

lin=30mA,RL=1kΩ¸

-10%~0%

10%Max

9.3

20.9

7.5

ZCT534

40

6.4-7.5

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

6.8

17.4

6.5

ZCT538

30

3.6-3.8

lin=500mA,RL=150Ω¸

-10%~0%

10%Max

5.5

15.4

5.3

ZCT541

50

12-13

lin=25mA RL=330Ω¸

-10%~0%

10%Max

9

22

8.3

ZCT543

20

3.5-4.5

lin=20mA,RL=370Ω¸

-10%~0%

10%Max

-

-

6.4

ZCT547

30

15-18

lin=500mA,RL=150Ω¸

-10%~0%

10%Max

-

-

17

ZCT548

30

13.2-17.8

lin=11mA,RL=360Ω¸

-10%~0%

10%Max

19

5

7.5

PCB Mounting Zero phase current transformer

Output voltage and Turns / resistor graph

PCB Mounting Zero phase current transformer



Testing


Packing and Shipping


We focus on Zero phase current transformer manufacture over 20 years,If you are interest in our current transformer product,contact us,Custom is available.
