PCB type 60w dual output +12V/2.5A -12V/2.5A smps switching power supply from China factory

Dual output 12V -12V open frame PCB Switching power supply 60W for LED lighting and General electronic machinery etc.



Dual output 60W 12V -12V PCB Switching Power Supply

Description:

KPD60 Series dual 12v switching power supply can fulfill the requirements of general medical or industrial applications.


Features:

1, 60W DUAL Switching power supply 12V -12V with unversial AC input;
2, 60W SMPS with Short circuit, overload, overvoltage and over temperature protection;

SPECIFICATIONS

  Item NO.

KPD60-0512

KPD60-0524

KPD60-1224

KPD60-12

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

OUTPUT

DC OUTPUT VOLTAGE

+5V

+12V

+5V

+24V

+12V

+24V

+12V

-12V

OUTPUT RATEDCURRENT

6A

2.5

5A

1.5A

2A

1.5A

2.5A

2.5A

OUTPUTCURRENT RANGE

0.1-6A

0.1-3A

0.1-6A

0.1-2A

0.1-2A

0.1-2A

0.1-3A

0.1-3A

OUTPUT POWER

50W

61W

60W

60W

RIPPLE & NOISE(p-p)

50mV

100mV

50mV

200mV

100mV

200mV

100mV

100mV

VOLTAGE ADJ.

CH1:±10% (5V:4.75~5.5V)

OUTPUT V. TOLERANCE

±1%

±5%

±1%

±5%

±1%

±5%

±1%

±5%

LINE REGULATION

±0.5%

±1%

±0.5%

±1%

±0.5%

±1%

±0.5%

±1%

LOAD REGULATION

±0.5%

±4%

±0.5%

±4%

±0.5%

±4%

±0.5%

±4%

SETUP,RISE,HOLD UP TIME

500ms,50ms,20ms

INPUT

INPUT VOLTAGE RANGE

90-264V AC

INPUT CURRENT

0.3A @ 220V AC

INPUT FREQUENCY

47-63 Hz

EFFICIENCY

80%

86%

88%

89%

89%

INRUSH CURRENT

Cold start15A/115V,30A/230V

LEAKAGE CURRENT

<0.3mA@240V AC

PRODECTION

OVERLOAD PROTECTION

110~200%,HICCUP RESET:AUTO RECOVER

OVER VOLTAGE PROTECTION

130~150%

FUNCTION

ENVIROMENT

WORKING TEMP., HUMIDITY

-10~45℃ 100% LOAD,45~60℃ 60% LOAD,10~90% RH,No condensation

STORAGE TEMP., HUMIDITY

-20~85℃,10~95% RH

TEMP. COEFFICIENT

±0.03%/℃(0~50℃)

SAFETY&EMC

SAFETY STANDARDS

EN60950; GB4943; UL60950

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC STANDARDS

Meet FCC.PART15.CLASS B; EN55022 CLASS B

OTHER

DIMENSION

101.6*50.8*27mm

WEIGHT

0.3Kg

NOTE

1. ALL PARAMETERS ARE SPECIFIED AT 220VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT.

2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.

3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.

4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD.

5.LOAD REGULATION IS MEASURED FROM 0% TO 100% RATED LOAD, AND OTHER OUTPUT AT 60% RATED LOAD.

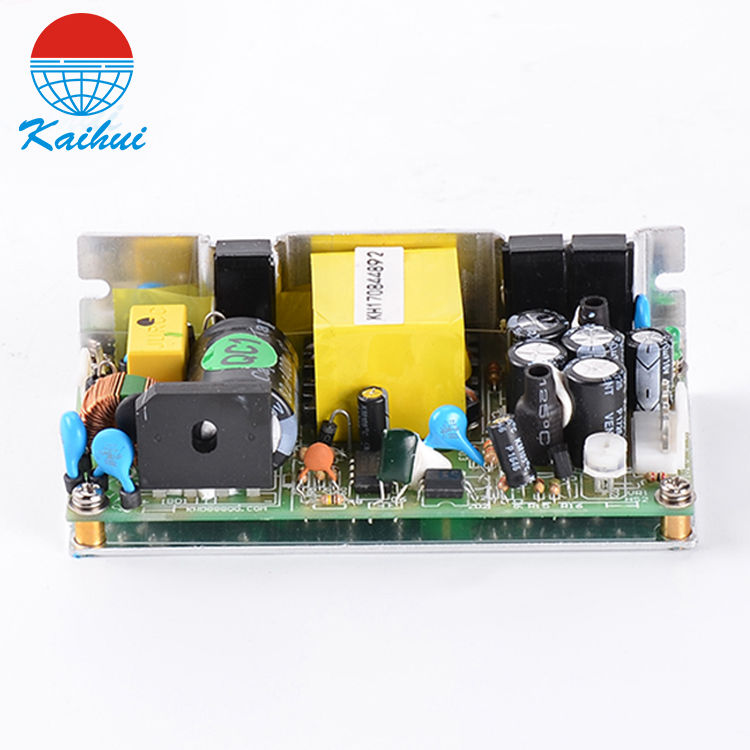

Product picture:

60w dual output +12v -12v smps switching power supply


FAQ


Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.



Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%



Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)

Real Power= Input Voltage x Input Current x Power Factor (W)


dual output power supply 12v -12v


Dual Output 60W Switching power supply

wholesale 60w power supply

china dual output power supply factory

dual 12v -12v open frame smps 60w power supply

12v 2.5a/-12v 2.5a dual output power supply 60w
