PCB V-groove Slot Cutting Machine Manual

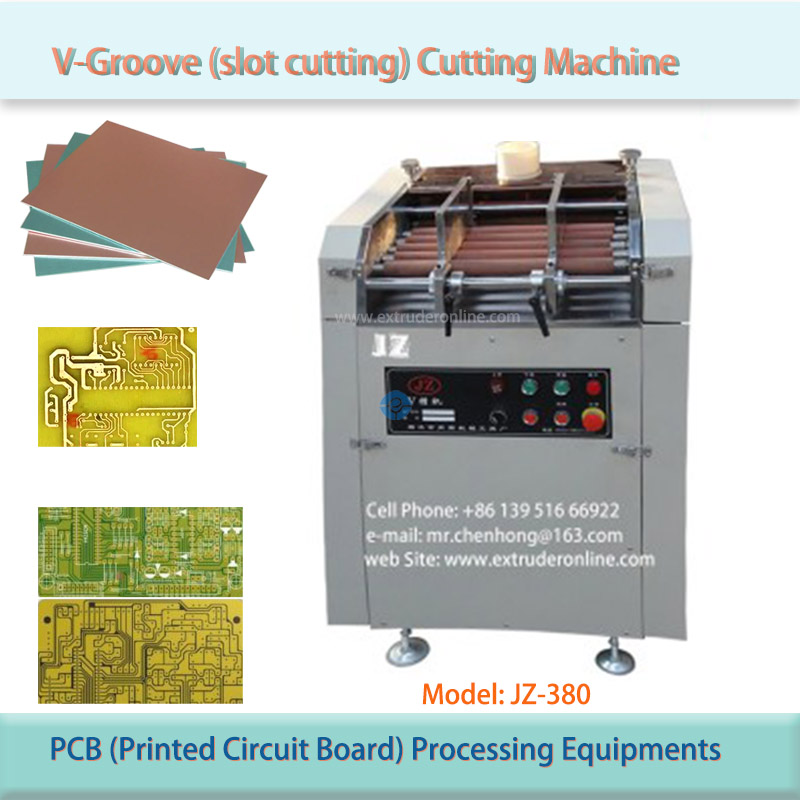

Model: JZ-380-OLD, Manual type

This machine is old type, for PCB v-groove cutting request.

Technical Specification:

*.Cutting Speed: 0-7.5 Meter/Minute (Adjustable)

*.Specifications of Blade:

   OD50mm (or 51mm) * ID25mm* Thickness2.5mm (or 2.0mm);

*. Size of work piece: Width: 30- 360mm Length: 80-600mm;

*. Quantity of Blade: 6 PCS (3 Top and 3 Bottom);

*. Electric source and Power: AC380V 3 Phase, 50Hz, 1KW;

*. Machine Dimension: 660mm x 380mm x 1050mm. / 1PKG;

*. Weight: Around 300KGS

*. Dimension: Around 1 cubic meter/ Package: 127*63*115cm

Spare Parts:

*. 10PCS of blades( 4PCS already installed on the machine, and another 6PCS is for spare parts, total 10PCS);

*. Spring for Cutter Shaft: 4PCS

*. Pinch roller(Pressing Wheel): 6PCS

*. Spacer: 1set, incluing 1.0mm,1.1mm/1.2mm/1.3mm/1.5mm/2.0mm/3.0mm/4.0mm/5.0mm/10mm size, each size for 10PCS

*. Tools:  1Set.

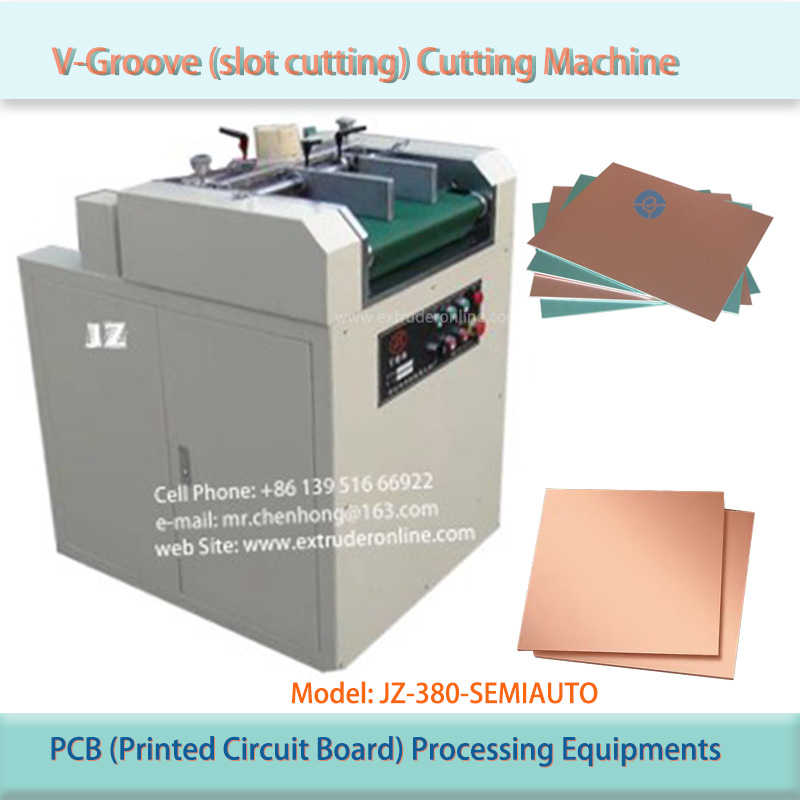

we also have updated JZ380 V-groove cutting machines, please feel free to contact us:
