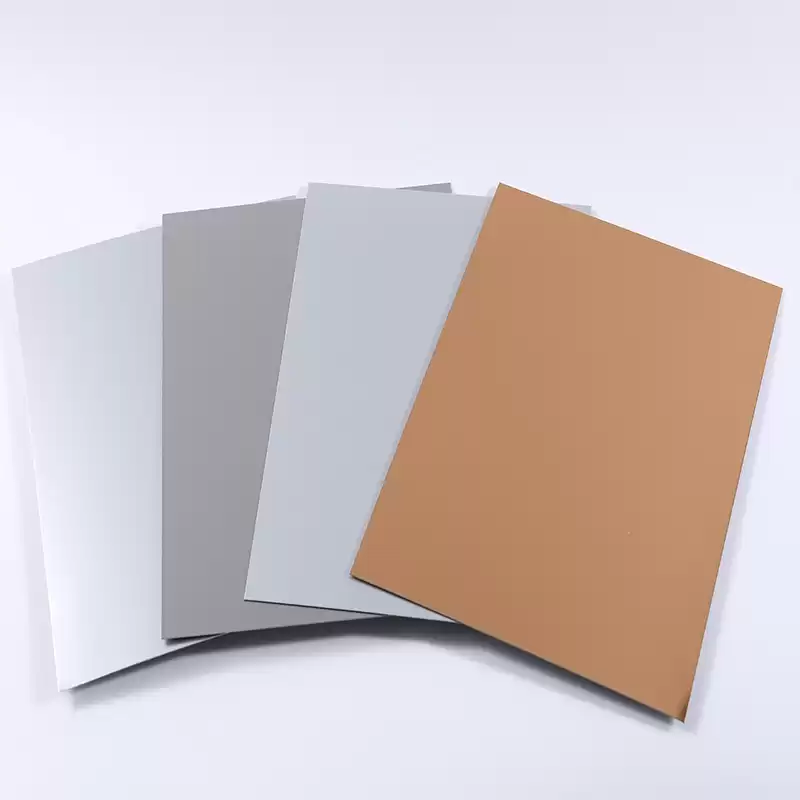

PCM PPGI Color Coated Galvanized Steel Coil for Home Appliances
1. Production Description:
PCM: Color coating steel sheet:
Protective film - finish coating - prime coating - pretreatment - aluminum/steel coil - back painting.
|
Product Item
|
PCM Color Coated Steel for Home Appliances
|
|
Base Metal
|
SGCC, SPCC, DX51D, DX52D, DX53D, DX54D
(As per the punch, with shaped picture will be better)
|
|
Thickness
|
0.2-1.0mm (standard 0.3-0.8mm)
|
|
Width Size
|
600-1600mm (standard 600-1250mm)
|
|
Length Size
|
6000mm (max), as per request
|
|
Surface Coating
|
PE Coating
|
|
Back Coating
|
Epoxy
|
|
Color Range
|
RAL color (solid,metallic,high gloss), Pure Color, Brushed, Flower style etc.
|
|
Top Coating Thickness
|
18~25μm, as per request
|
|
Back Coating Thickness
|
5~7μm, as per request
|
|
Surface Protection
|
PE protective film
|
|
Certificate
|
ISO9001, SGS, ROHS
|
|
Pencil Hardness
|
≥H
|
|
T-Bend Test
|
≤2T
|
|
E-Cupping Test
|
6mm
|
|
MEK Test
|
More than 100 times
|
|
Impact Test
|
No cracking and peeling(50kg/cm)
|
|
Color Difference
|
△E<0.5
|
|
Paint Company
|
PPG Valspar Becker KCC Nippon
|
|
Coil Weight
|
3~5 Tons/ coil, as per request
|
|
Package
|
Coil or Sheet
Sheet: Width≤1600mm,Length≤6000mm
Coil: Width≤1600mm ,Inner Diameter: φ405mm φ505 etc
|
|
Application
|
Refrigerator, Wash machine, Water heater, Freezer, DVD, TV etc
|
2. Company Profile:
"Alucosuper" is our brand. (www.ahalucosuper.com) We are JINGGONG STEEL BUILDING GROUP (alucosuper.en.made-in-china.com), - WONDERFUL-WALL BUSINESS DIVISION.
Products are widely used for building material(indoor, outdoor, roofing, ceiling, door), package, home appliance(refrigerator, freezer, wash machine, water-heater, TV, etc.), advertisement, station...and anyother area.
3. Production line
4.Packing & Delivery:
* Standard export waterproof package, Eye to Wall & Eye to Sky for coil, Wooden Cases & Wooden Pallets for sheet.
* Delivery time: within 30 days
5. Structure:
6. Application:
