Design Concept

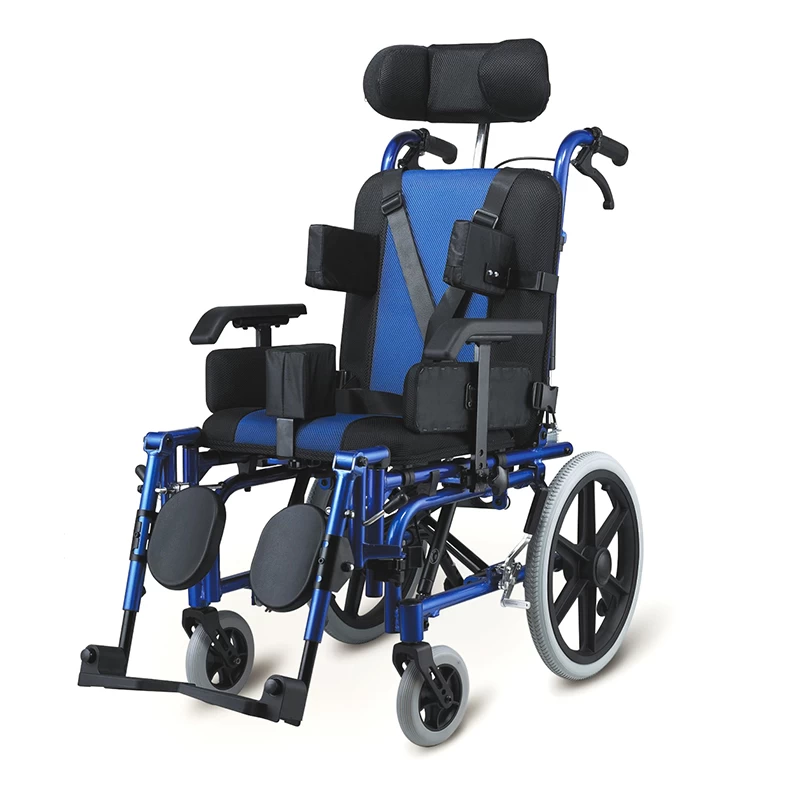

Pediatric multi-function rehab wheelchair, this design allows various seating positions, tilt-in-space and recline. Reclining up to 180 degree, reclining back, lifting legrest.
About this item

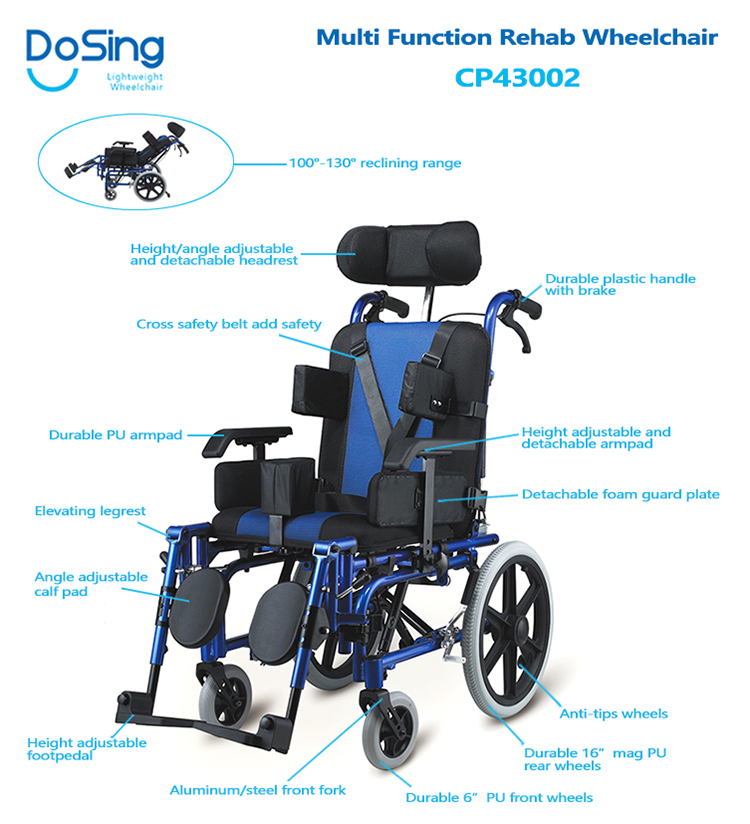

Features
-
Various chair frames are available,36cm,38cm,44cm,46cm
-
This design allows various seating positions, tilt-in-space and recline
-
Side foam guard width can be narrow 6cm
-
Two cylinders support seat tilt-in-space from 10-40degree
-

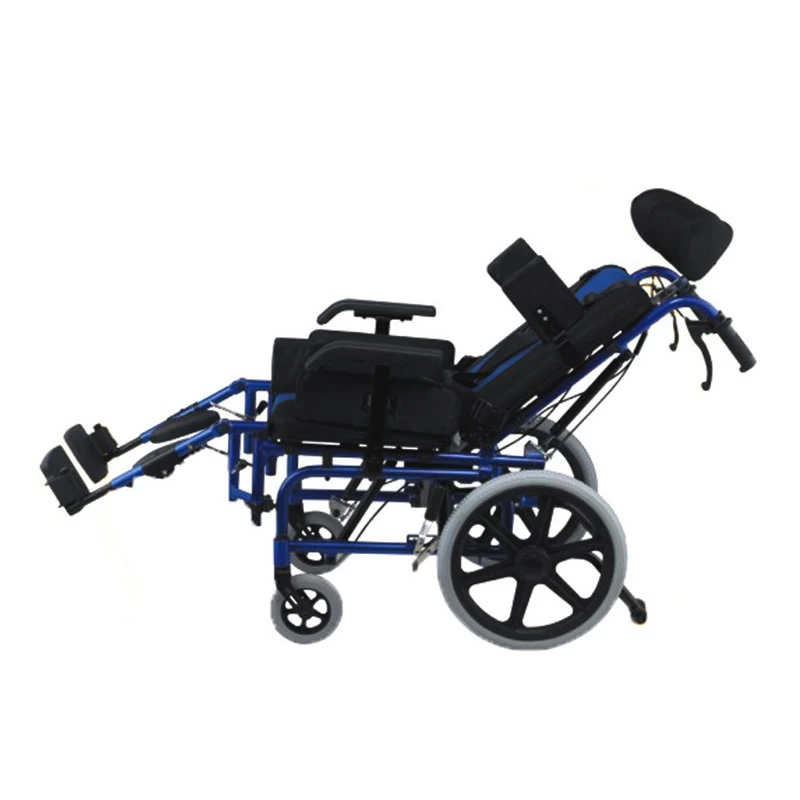

Operate both tilt-in-space and recline functions can adjust totally from 10 to 170degree
-
Side frames are foldable for casual handling, storage and transportation
-
Cross belt at the back, thigh belt also attached
-
Detachable armrest, elevating legrest
-
Height and angle adjustable headrest
-
Anti-tipper
-
Headrest height adjustable, and detachable
Specifications
|
Brand
|
DoSing or OEM
|
|
Model
|
CP43002
|
|
Color
|
Optional
|
|
Frame
|
Aluminum in liquid painting Or Steel optional
|
|
Seat Width(between two arms)
|
38cm
|
|
Overall Width( between handrims)
|
55cm
|
|
Seat Height
|
49cm
|
|
Back Height From Seat
|
45cm
|
|
Overall Height
|
96-114cm
|
|
Net Weight
|
21.4kgs
|
|
Gross Weight
|
23kgs
|
|
Weight Capacity
|
100kgs
|
|
Front Wheel
|
6 inch PU tyre
|
|
Rear Wheel
|
16 inch mag wheels
|
|
Carton Size
|
77x40x95cm
|
