Introduction

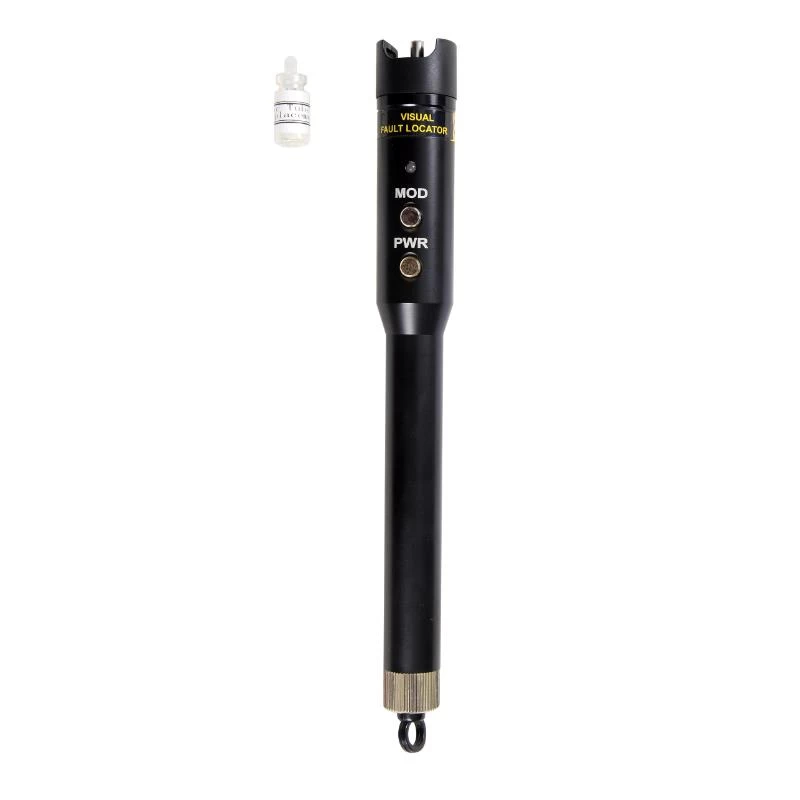

This is specially designed for field
personnel who need an efficient and economical tool for fiber tracing, fiber
routing and continuity checking in optical network.
Features
-
Metal case, Rugged and
durable
-
Low battery indication, to avoid
leakage and wrong judgment
-
ESD protection design, Protect
the LD effectively
-
Integrated case, to avoid the
case intermediate broken
-
Re-changeable ceramic tube, to
avoid returning to manufacturer for this small fault
-
Long battery life, up to 60 hours＠1mW
Specifications
|
Central Wavelength
|
650nm±10nm (635nm can be required on request)
|
|
Emitter Type
|
FP-LD
|
|
Output Power (mw)
|
1, 10, 20, 30, 50
|
|
Optical Connector
|
2.5mm universal connector
For 1.25mm connectors, FC (Male)-LC
(Female) convertor
can be optional on customer’s requests
|
|
Operating Model
|
Both CW and Pulse available
|
|
Pulse Frequency
|
2~3Hz
|
|
Power Supply
|
2 AA alkaline batteries
|
|
Battery Operating Time
|
650nm@1mw ≥65hours
650nm@10mw≥15hours
Test with Panasonic LR6 AA ALKALINE
battery
|
|
Operating Temperature (℃)
|
-10~+45
|
|
Storage Temperature (℃)
|
-40~+70
|
|
Dimension (mm)
|
￠15X210
|
|
Weight(g)
|
120(Without
battery)
|
