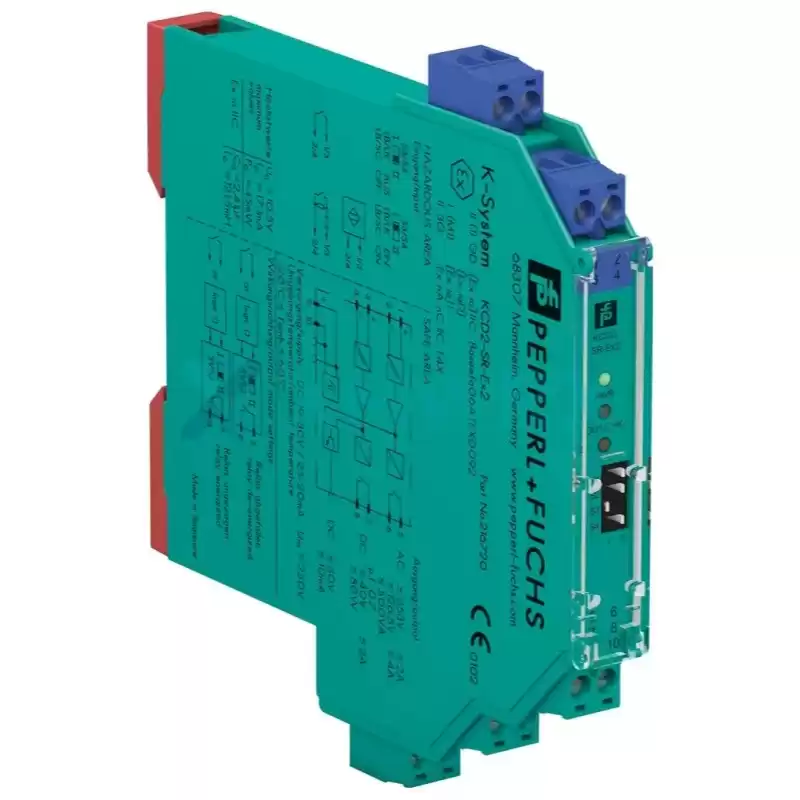

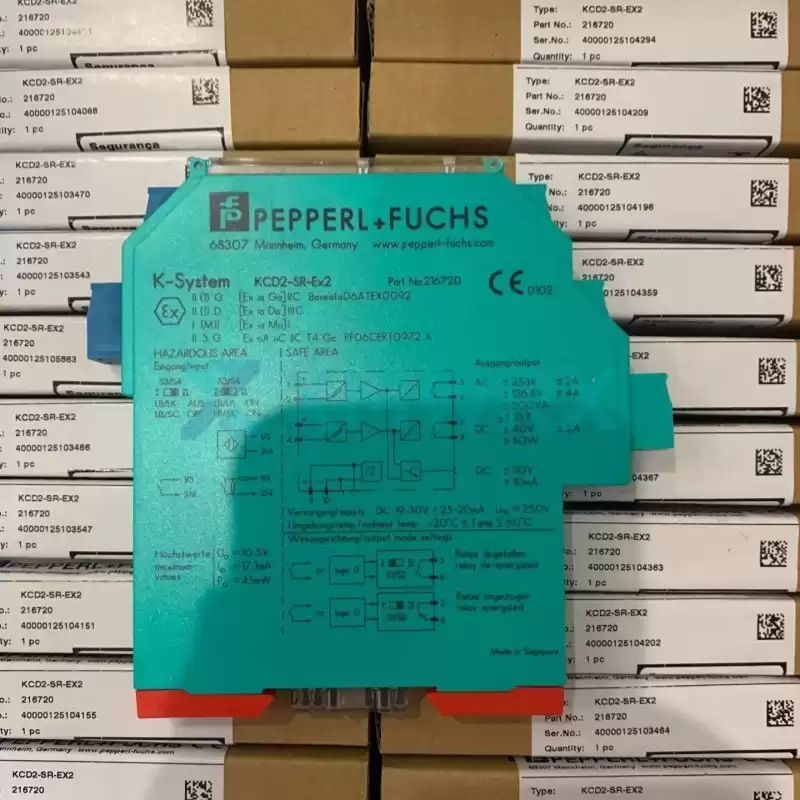

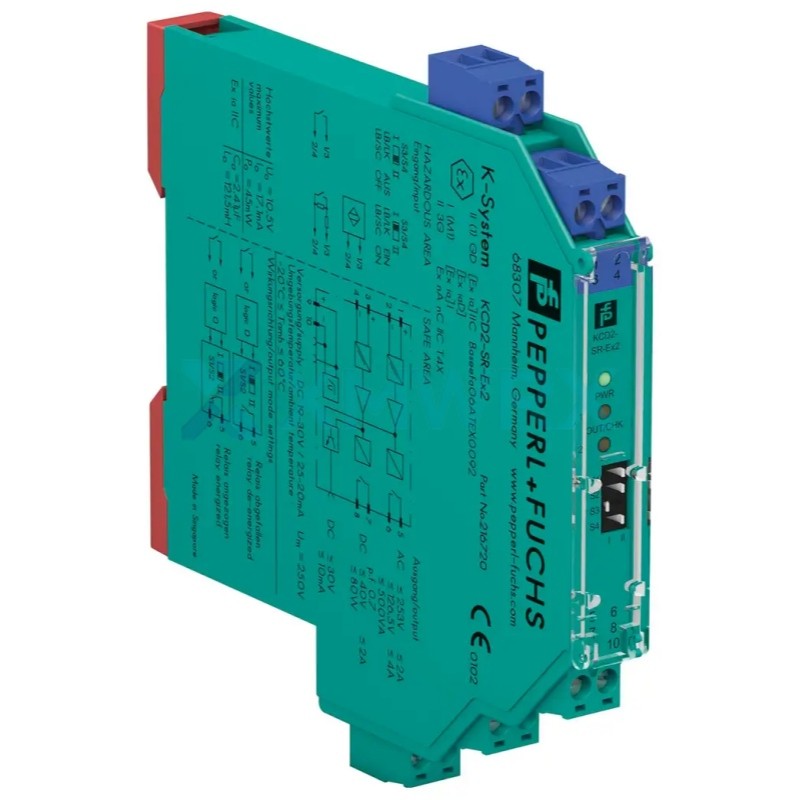

Pepperl+Fuchs KCD2-SR-Ex2 Dual-channel digital input safety barrier / 216720

Core Features

• ✓  Dual-channel isolation design: Equipped with two independent channels, it can process two signals simultaneously, providing redundancy and backup functions to effectively improve system reliability.
• ✓  Wide signal compatibility: Supports NAMUR sensors (compliant with EN 60947-5-6 standard) and dry contacts (voltageless contacts) as field-side input signals.
• ✓  Relay contact output: Each channel is equipped with one relay output, facilitating direct driving of control systems or alarm devices.
• ✓  Line fault detection (LFD): Features open-circuit and short-circuit detection. When a field line fault occurs, the red LED indicator on the device will flash as an alarm, and a fault signal can be output via a relay.
• ✓  High safety standards: Compliant with IEC/EN 61508 standard, achieving a safety integrity level of SIL 2 and a system capability (SC) of SC 3, meeting high standards of functional safety requirements.
• ✓  Compact and easy to install: Utilizes DIN rail mounting (35mm DIN rail), with a housing width of only 12.5mm, significantly saving installation space within the control cabinet.
•

Q: In what scenarios is KCD2-SR-EX2 primarily used?

A: Simply put, the KCD2-SR-EX2 is a very standard and reliable solution for any factory or environment with explosion-proof requirements where it is necessary to safely transmit "on/off" signals from switches, valves, sensors, etc., back to the control room.

Q: What are its advantages compared to similar models?

A: If you need a switchable safety barrier that requires no complex grounding, has strong anti-interference capabilities, and can directly drive large AC/DC loads, the KCD2-SR-EX2 is an ideal choice.

Q: What are its main drawbacks or limitations?

A: If your application requires extremely high response speed (>10Hz) or requires extremely frequent switching actions (tens of thousands of times per day), the KCD2-SR-EX2 may not be the best choice (in which case, a transistor output safety barrier is recommended). However, in applications such as conventional level limiting and valve switching status monitoring where speed requirements are not stringent and direct driving of AC loads or high interference immunity is required, these "disadvantages" usually will not be obstacles in practical applications.
