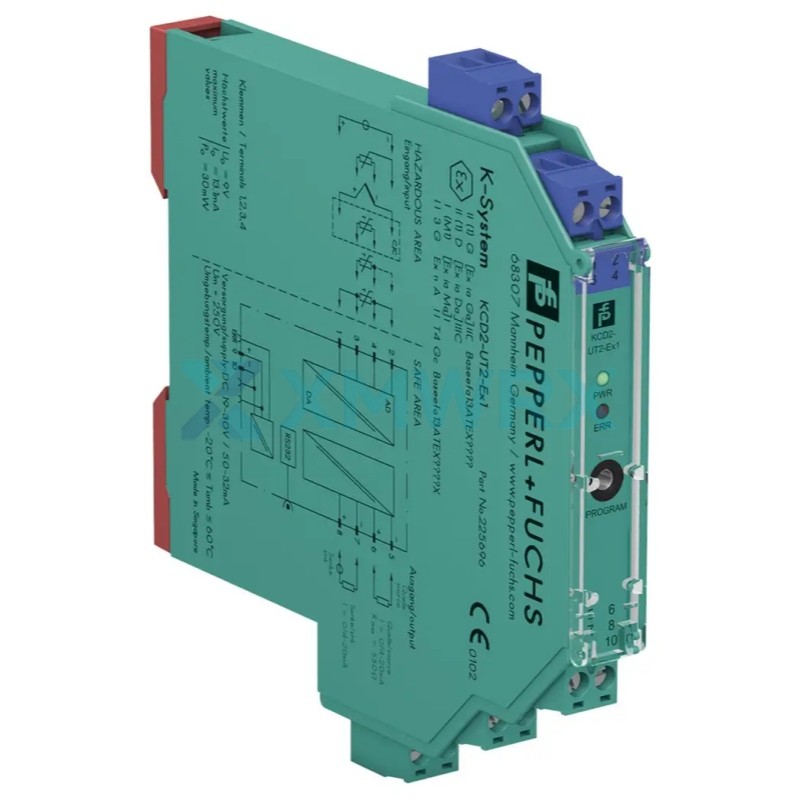

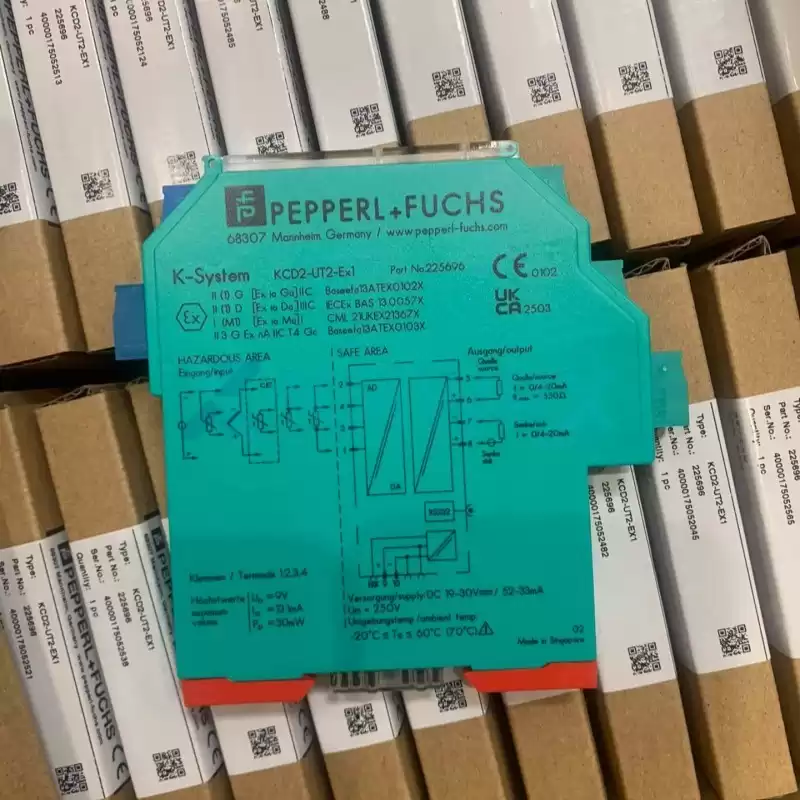

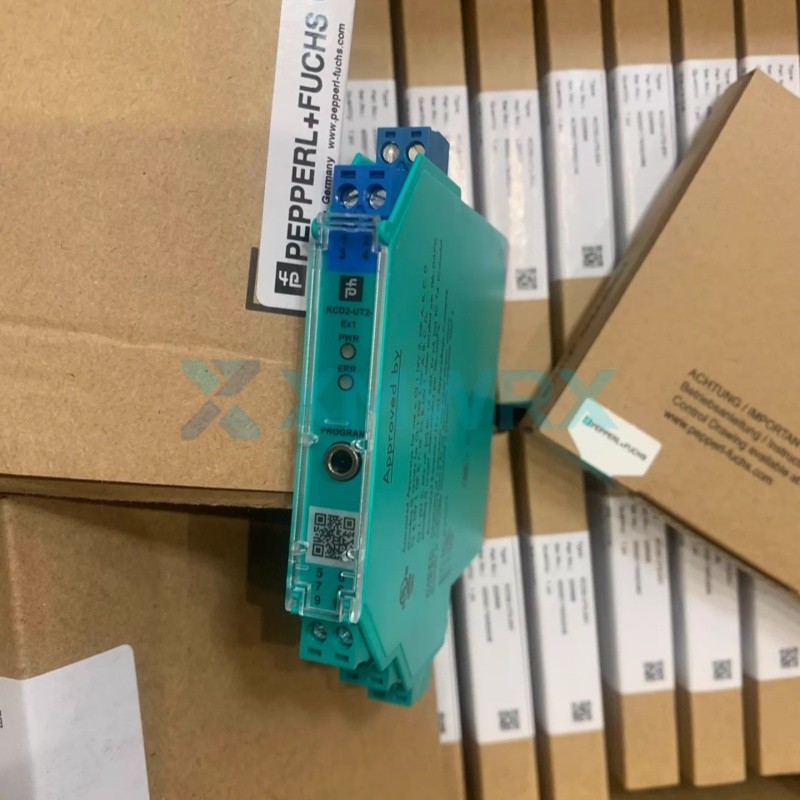

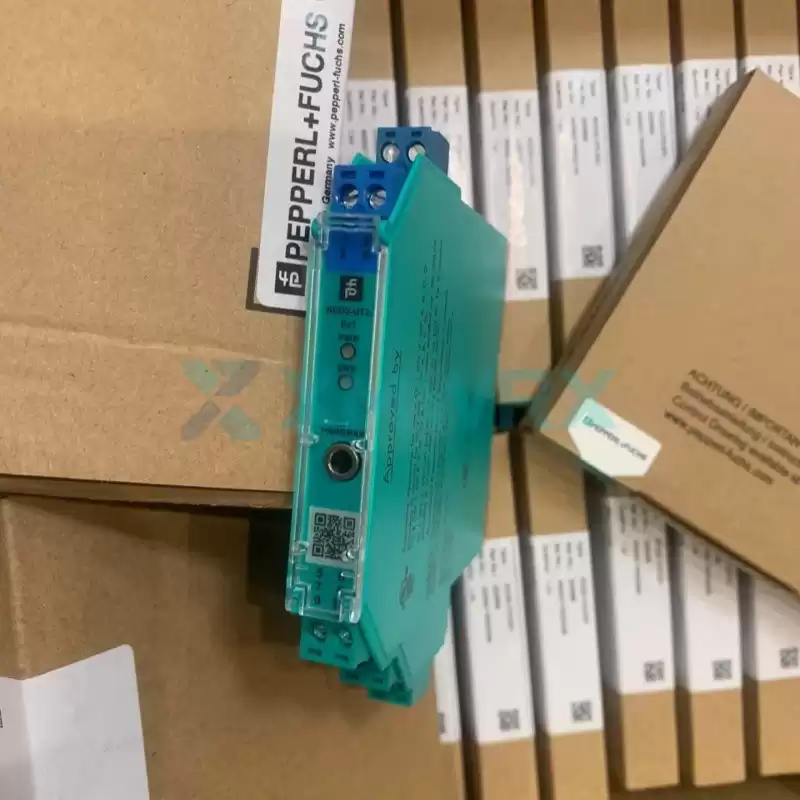

Pepperl+Fuchs KCD2-UT2-Ex1 Universal Temperature Converter / 225696

Core Features

• ✓  Signal Conversion: Accurately converts various temperature sensor signals from the field into standard 0/4 mA ... 20 mA analog current signals within a safe area.
• ✓  Software Configuration: Supports convenient parameter configuration and debugging via PACTware™ software.
• ✓  Fault Diagnosis: Features powerful line fault (LFD) detection capabilities, enabling real-time monitoring of sensor open circuits, short circuits, or burnouts, and providing alarms via LED indicators or fault outputs.
• ✓  Functional Safety: Complies with IEC 61508 / IEC 61511 standards, achieving a safety integrity level of up to SIL 2, providing reliable safety assurance for industrial process control.
• ✓  Compact Design: Employs a standard 1-channel isolation barrier design, with a housing width of only 12.5 mm, saving significant control cabinet space when mounted on DIN rails.
• ✓  Operating Environment: Standard operating temperature range is -20°C to 60°C, adaptable to various industrial environments.
•
•

Q: What are some typical application examples of this product?

A: The core function of the KCD2-UT2-Ex1 is to safely and accurately transmit temperature signals from hazardous areas (such as explosive or flammable environments) to safe areas such as control rooms. Based on its strong explosion-proof isolation capabilities and broad signal compatibility, it has typical applications in many industrial fields with extremely high safety requirements. In general, this product is a classic and reliable choice for scenarios involving "hazardous area temperature acquisition," "high-precision signal isolation," and "integration of signals from older potentiometers."

Q: What are its advantages compared to similar products?

A: The KCD2-UT2-Ex1's advantages lie in its high compatibility ("one machine for multiple uses"), convenient installation experience that eliminates the need for wiring, and intelligent safety diagnostics that meet international standards. It is ideal for complex industrial environments with strict requirements on cost, space, and safety.

Q: What precautions should be taken when installing and wiring?

A: If you encounter a fault during wiring or debugging, the LED indicators on the device and the Line Fault Diagnosis (LFD) function in the PACTware software can help you quickly locate whether it is a sensor disconnection, short circuit, or wiring error.
