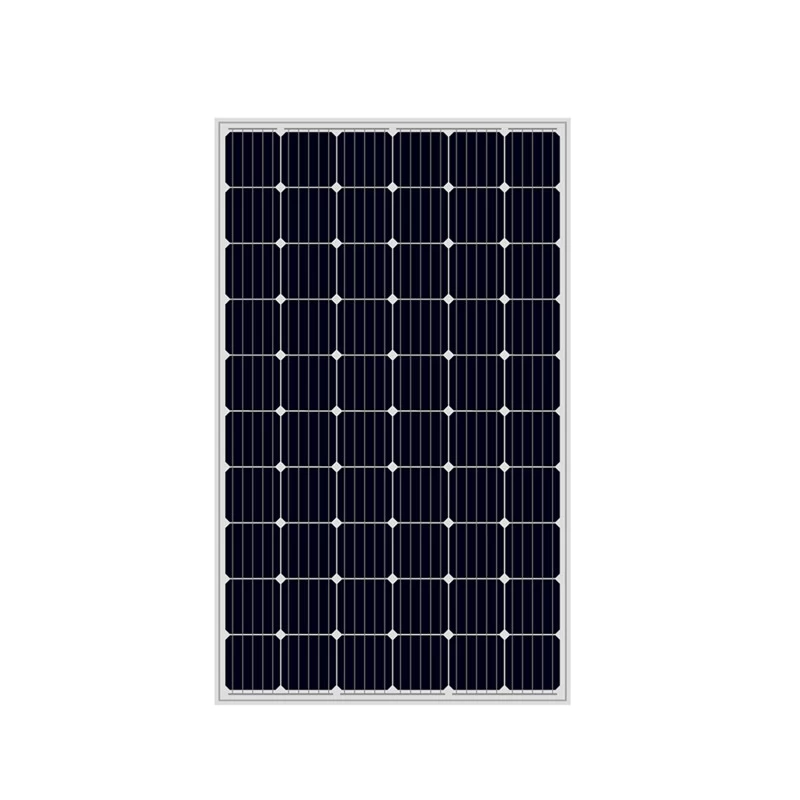

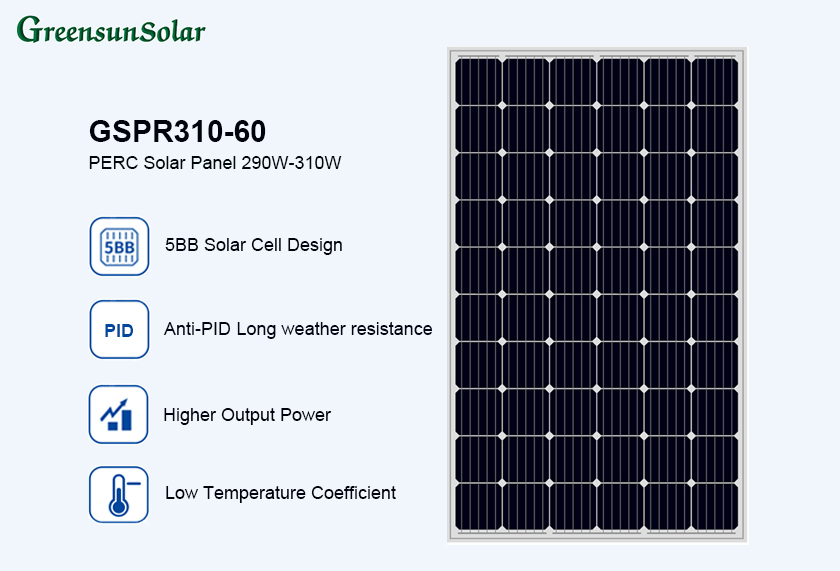

Specification for Perc 60cells mono 310watt solar pv panels
PV Module
|
GSM285-60
|
GSM290-60
|
GSM295-60
|
GSM300-60
|
Rated Maximum Power(Pmax) [W]
|
285
|
290
|
295
|
300
|
Open Circuit Voltage(Voc) [V]
|
39.21
|
39.46
|
39.64
|
39.85
|
Maximum Power Voltage(Vmp) [V]
|
31.71
|
31.80
|
32.03
|
31.26
|
Short Circuit Current(Isc) [A]
|
9.42
|
9.56
|
9.66
|
9.75
|
Maximum Power Current(Imp) [A]
|
9.03
|
9.12
|
9.21
|
9.30
|
Module Efficiency [%]
|
17.4
|
17.7
|
18.0
|
18.3
|
Power Tolerance
|
0~+5W
|
Temperature Coefficient of Isc(α_Isc)
|
+0.058%/℃
|
Temperature Coefficient of Voc(β_Voc)
|
-0.330%/℃
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.400%/℃
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
Size
|
1640*990*35/40mm
|
Weight
|
18.5KG
|
Package for Perc 60cells mono 310watt solar pv panels
26units to 30units Perc 60cells mono 310watt solar pv panels in one wood pallet
14pallets solar panels in a 20ft container
30pallets pv modules in a 40ft HQ container
Customization Package is Feasibility
Projects made by greensun solar
Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
